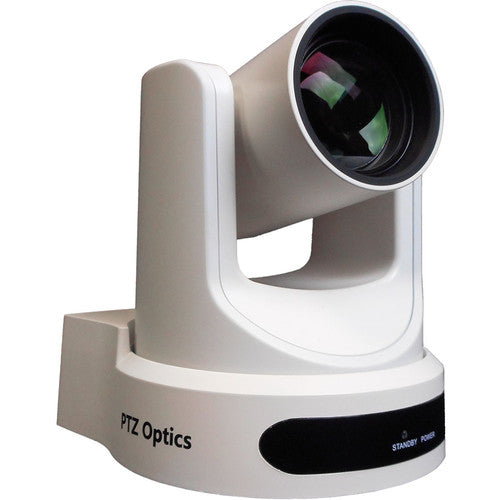

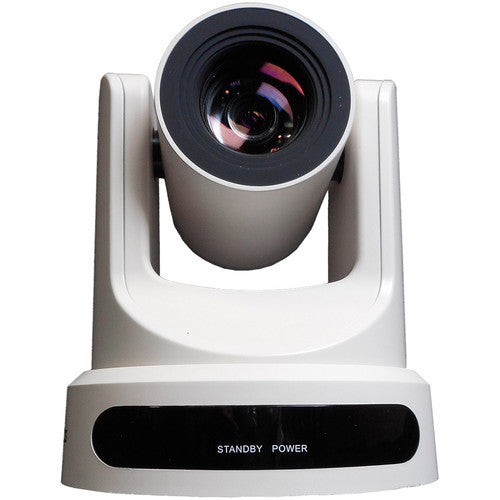

PTZOptics PT20X-SDI-WH-G2 Videoconferencing PTZ Camera
PTZOptics PT20X-SDI-WH-G2 Videoconferencing PTZ Camera is backordered and will ship as soon as it is back in stock.
Need Help? Call Us 800-211-2718
Couldn't load pickup availability
- 1/2.7" CMOS Sensor, 0.5 Lux Minimum
- 4.4 - 88.5mm Lens, 20x Zoom, f/1.8 - 2.8
DUNS #074303253
IRS W-9 form
- 2 x AAA Batteries (for Remote Control)
- IR Remote Control
- Power Supply
- RS-232 Cable
- 1/2.7" CMOS Sensor, 0.5 Lux Minimum
- 4.4 - 88.5mm Lens, 20x Zoom, f/1.8 - 2.8
Key Features
- 3G-SDI output for connecting to professional switching equipment for broadcast conferencing
- 1080p HD video at up to 60/50 fps

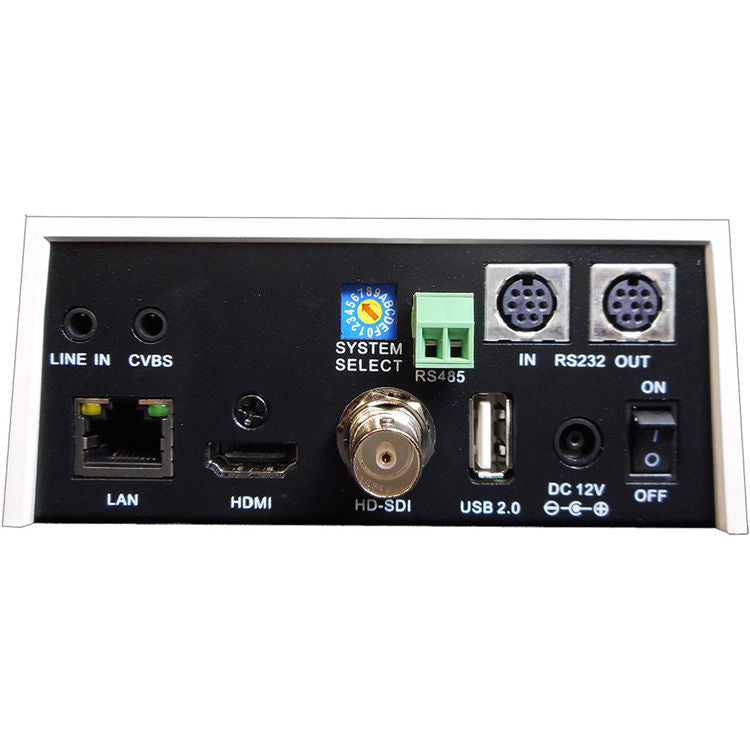

- LAN, HDMI, and composite outputs, RS-232 input/output, RS-485 port
- 3.5mm audio input for embedding audio into an HDMI signal or IP stream
- H.264 and H.265 HD/SD dual-stream, or MJPEG single stream via LAN port
- SDI, LAN, and HDMI ports are simultaneously live
- Open source customizable via HTML commands
- 4.4 - 88.5mm lens with 20x zoom range
- 1/2.7" 2.1MP CMOS sensor
- f/1.8 - f/2.8 lens aperture
- 0.5 lux minimum illumination at f/1.8
- Wide dynamic range
- 2D and 3D noise cancellation
- Control via LAN over a network, ONVIF over a network, and RS-232 via VISCA commands
- Control multiple cameras from any NewTek TriCaster, directly from the TriCaster software
- Set up to 64 presets (or up to 255 via RS-232), with a preset accuracy of 0.1°
- Use desktop-mounted or ceiling-mounted using an optional bracket
This is the 20x-SDI Gen2 model of the PTZOptics lineup of advanced live streaming cameras, in white, featuring a 3G-SDI output for connecting to switching equipment for broadcast conferencing. The Gen2 model is capable of 1080p60/50 recording (instead of a max of 30 fps), and streaming in H.265 and MJPEG in addition to H.264.
-
Sensor
-
Resolution
-
Signal Sysyetm
-
Signal To Noise Ratio
-
Gain
-
Shutter Speed Range
-
Exposure Control
-
White Balance
-
Image Stabilization
-
Image Flip
-
ICR
-
Sync
-
Output
-
Audio Input
-
Audio
-
Camera Control
-
Focal Length
-
Minimum Object Distance
-
Pan Angle
-
Tilt Angle
-
Pan Speed
-
Tilt Speed
-
Presets
-
Operating Temperature
-
Power
-
Minimum Illumination
-
Optical Zoom
