Key Features
- 20× optical zoom and 65.1° wide horizontal field of view
- 4K UHD over HDMI and IP
- HD video over 3G-SDI
- Optical image stabilization
- PoE+ for power over Ethernet
$4,995.00

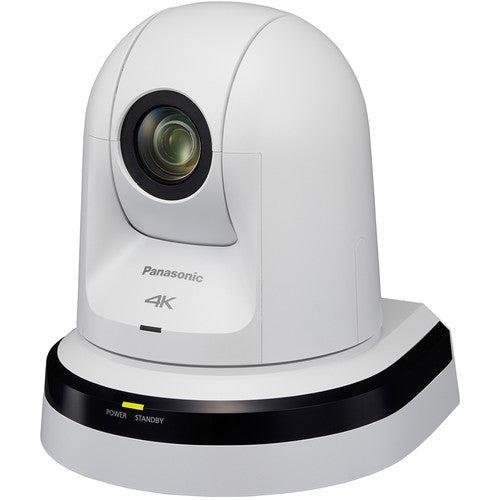

The Panasonic AW-UE70WPJ is a pearl-white 4K indoor PTZ camera with 20× optical zoom for classrooms, houses of worship, meeting rooms, and live production spaces. Its motorized pan, tilt, and zoom let an operator change the shot from a control position. That makes it useful when a camera needs to stay mounted at the back of the room or above the audience while the operator moves between a wide view and a close-up of the presenter.
The lens opens to a 65.1° horizontal field of view at the wide end, then zooms in optically for tighter framing. In a lecture hall, that can mean starting with a wide shot of the stage and moving to a close-up at the lectern. In a house of worship, an operator can use presets to return to recurring shots during a service. Optical image stabilization helps compensate for camera shake, which becomes easier to see when the lens is zoomed in.

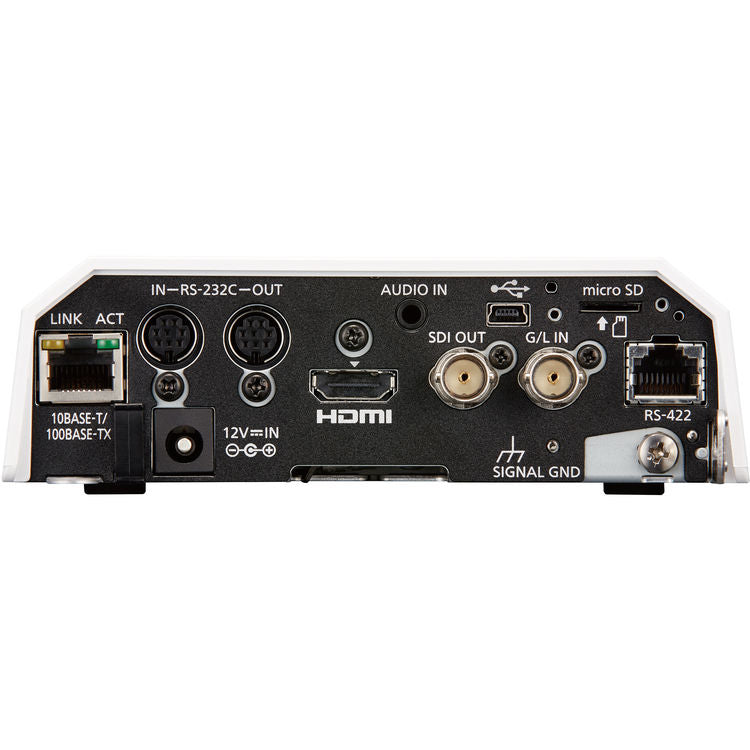

The AW-UE70 supports 4K UHD over HDMI and IP and provides 3G-SDI for HD workflows. For a room with an existing HD-SDI switcher, that gives the camera a path into the current production system. If the project calls for UHD capture, check the receiving equipment and use the appropriate HDMI or IP mode. The camera also supports USB video for compatible computers. USB frame rates depend on resolution, so confirm the required format before designing around that connection.
The included mounting bracket supports desktop or suspended installation. On a compatible PoE+ network, Ethernet can carry power, IP control, and network video, reducing the number of separate cable runs to the camera. The included AC adapter provides another power option. If the production system takes HDMI or SDI, plan a separate video cable for that connection.
Panasonic provides auto and manual focus, built-in ND filter settings, and an HDR imaging function for scenes with strong contrast, such as a presenter standing in front of a bright window. The 3.5 mm mic/line input gives the installer a way to connect a compatible external audio source. Before installing several cameras, test one from its intended position with the actual stage lighting, room audio, and receiving equipment.
Technical Details
We accept Purchase Orders from all Schools, Universities, Major Government Agencies and Not-for-profit Organizations within the United States and Canada Only. All Purchase Orders are subject to approval.
Simply email, fax or mail your purchase order and please ensure your P/O contains the following information:
Please email completed purchase orders to Sales@OfficeWonderland.com .
You can also fax it to: (786) 916-5963
Or mail it to:
OfficeWonderland.comOnce we have all the information requested above, an account and order will be created.
We operate with a Net 30 Day payment arrangement for approved purchase orders. Payment is expected to be made in full not more than 30 days after your order is processed.
1 Year Parts and Labor
Panasonic AW-UE70WPJ 4K 20× Indoor PTZ Camera, Pearl White
Add to Cart for Lower Price
Call for Price
$4,995.00
