SKU: AWHE42KPJ  |  UPC: 0

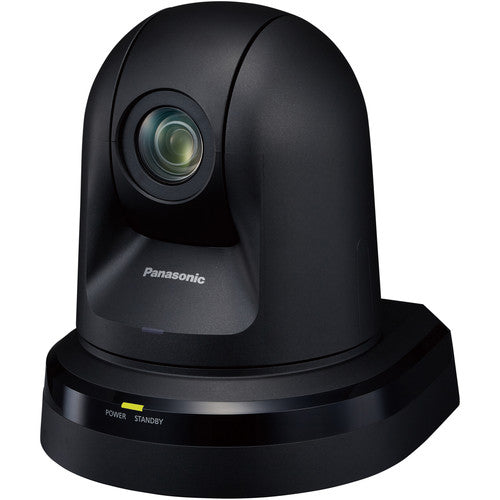

Panasonic AW-HE42KPJ Full-HD 20X PTZ 3GSDI Camera (Black)

$3,795.00
Free Shipping At Checkout!

SPRING SALE | additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • 1/2.3" MOS sensor
  • 20x Optical Zoom
  • 1x 3G-SDI & HDMI Outputs
  • 1x MicroSD Card for Recording
  • Built-in H.264/MJPEG Encoder

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • 1x Mount bracket for installation surface
  • 1x Drop-prevention wire
  • 4x Bracket mounting screws
  • 1x Main unit mounting screw
  • 1x Power cable (1.5 m [4.92 ft])
  • 1x AC adaptor
  • 1x CD-ROM


  • 1/2.3" MOS sensor

  • 20x Optical Zoom

  • 1x 3G-SDI & HDMI Outputs

  • 1x MicroSD Card for Recording

  • Built-in H.264/MJPEG Encoder


FEATURES



  • 1/2.3" MOS sensor with 20x Optical Zoom

  • Up to 100 preset positions & camera settings

  • Support Noise Reduction & Image Stabilizer

  • 1x BNC Black Burst Sync Input

  • Support embedding and encoding

  • Equipped with Four Drive Lens System

  • 1x 3G-SDI & HDMI Outputs

  • 1x MicroSD Card for Recording

  • Built-in H.264/MJPEG Encoder

  • LAN connector for IP control (RJ-45)

  • Support Pan/Tilt/Zoom functions


The Panasonic AW-HE42 Full-HD Professional PTZ Camera with 3G-SDI/HDMI/IP Interfaces from Panasonic is Full-HD Pan/Tilt/Zoom Camara with an integrated rotating base equipped with a wide range of interfaces including 3G-SDI, HDMI and IP. The camera is also equipped with an external sync signal input connector as well as BBS (Black Burst Sync) and tri-level sync. The camera enables flexible system construction ready to handle any purpose or environment. The AW-HE42 is perfect for a wide range of environments, from recording and broadcast of lectures, houses of worship, to live streaming at concerts and other events. The AW-HE42 PTZ Camera features a 1080p output, a wide horizontal viewing angle of 65.1 degrees, a 20X optical zoom,30X i.Zoom and is equipped with a 1/2.3" MOS sensor and genlock for camera matching in live production.

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

0693242b257f4ce6873cd0547f2bc8ff
Panasonic

Panasonic AW-HE42KPJ Full-HD 20X PTZ 3GSDI Camera (Black)

$3,795.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/2.3-type MOS

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

Auto, 0 dB to 48 dB (3 dB step)

N/A

Shutter Speed Range

1/60 to 1/2000

N/A

Exposure Control

N/A

N/A

White Balance

ATW, AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K)

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

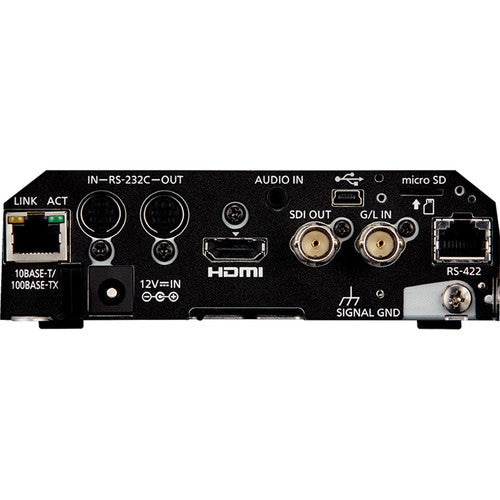

Output

HDMI connector,3G/HD-SDI OUT

N/A

Audio Input

Stereo mini-jack (?3.5 mm) Input impedance: Approx. 2 kOhm(unbalanced) [Mic input] Supported microphones: Stereo mic (plug-in power, on/off switching via menu) Supplied voltage: 2.5 V ± 0.5 V Mic input level: -60 dBV ± 3 dBV (0 dB=1 V/Pa,1 kHz)

N/A

Audio

N/A

N/A

Camera Control

LAN connector for IP control

N/A

Focal Length

F1.8 to F3.6

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

-30°to 90°*6

N/A

Tilt Angle

±175°

N/A

Pan Speed

Maximum speed during preset: 300°/s

N/A

Tilt Speed

Maximum speed during preset: 300°/s

N/A

Presets

N/A

N/A

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

N/A

Power

DC 12 V (Supplied AC adaptor) DC 42 V to 57 V (PoE+ power supply)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

0.7 lx (50 IRE, F1.8, 48 dB,1/60 without accumulation) 0.35 lx (50 IRE, F1.8, 48 dB,1/30 with accumulation

N/A

Optical Zoom

20x

N/A

TAA Compliant

N/A
View product
