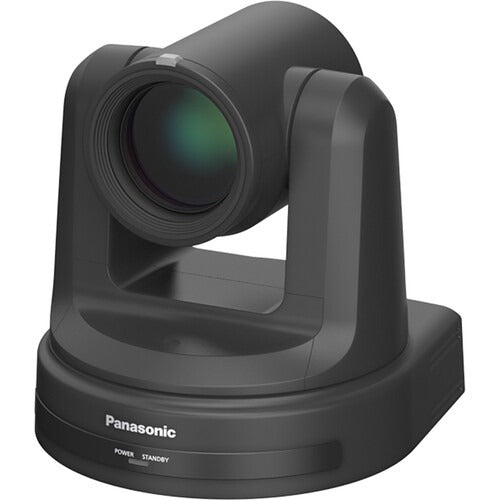

Panasonic AW-HE20 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom (Black)

The Panasonic AW-HE20 3G-SDI/HDMI/IP/USB PTZ Camera is an advanced solution designed for high-quality video output and recording in various settings such as conference rooms, houses of worship, and educational institutions. This camera provides versatile connectivity options and exceptional video performance, making it suitable for professional video production workflows.

Key Features

High-Quality Video and Zoom Capabilities

• 1/2.8" MOS Sensor: Ensures high-quality 1080p video output, capturing clear and detailed images.


• 12x Optical Zoom: The 3.9 to 46.8mm zoom lens allows for precise and detailed close-ups, enhancing the ability to monitor specific areas within the coverage zone.

Versatile Connectivity

• Multiple Video Outputs: Supports HDMI, 3G-SDI, USB, and IP outputs, providing flexibility for various live video production setups.


• USB Webcam Output: Can be used as a webcam on a computer, enabling easy integration with video conferencing and streaming software.


• RJ45 LAN Streaming: Supports IP streaming for remote monitoring and control.

Remote Control and Monitoring

• IP Browser Control: Allows control of PTZ actions and monitoring from a remote location via a web browser, providing convenience for remote operations.


• Serial Control: Supports RS-232/RS-422 serial control, offering compatibility with existing control systems.


• LAN Control: Enables camera control over a network, allowing for streamlined setup and operation.

Audio Integration

• Mic/Line Audio Input: Supports audio input, allowing you to capture and embed audio within the video signal.


• Audio Encoding and Output: Audio can be embedded and encoded into the video signal and output via IP using H.264/H.265/MJPEG compression formats.

Installation and Compatibility

• PoE+ (Power-over-Ethernet+): Simplifies installation by allowing the camera to be powered using a single LAN cable, reducing the need for additional power adapters and cables.


• Wide Panning and Tilting Range: Offers a 170° panning range and -30 to 90° tilt range, providing extensive coverage and flexibility in camera positioning.


• Existing Mount Compatibility: Compatible with FEC-40 wall mounts, ensuring easy integration into existing setups.

Video Compression and Streaming

• H.265/H.264/MJPEG Compression: Efficiently compresses video for streaming and recording, maintaining high video quality while reducing bandwidth usage.


• RTSP/RTMP Streaming: Supports streaming protocols, enabling live streaming to various platforms and services.
