SKU: AWHE130KPJ  |  UPC: 885170213821

Panasonic AW-HE130 HD PTZ Camera

$5,619.00
Free Shipping At Checkout!

SPRING SALE | additional discount in cart

Accessories

Panasonic

Panasonic AW-HEA10KPJ Control Assist Camera

$1,220.00
View details

Panasonic

Panasonic AW-RP60GJ5 Compact Remote PTZ Camera Controller

$2,942.00
View details

Panasonic

Panasonic AW-RP120 Remote Camera Controller

$3,995.00
View details

Panasonic

Panasonic AW-RP50NJ Compact Remote Camera Controller

$2,395.00
View details

Panasonic

Panasonic AW-HEA10WPJ Control Assist Camera

$1,215.00
View details

Panasonic

Panasonic AW-SF100 Auto Tracking PTZ Software Key AW-SF100Z

$1,495.00
View details

Panasonic

Panasonic AW-RP150GJ5 Touchscreen Remote Camera Controller

$5,475.00
View details

Need Help? Call Us 800-211-2718

Product Highlights:
  • Three 1/2.86" MOS Sensors and DSP
  • f/1.6 20x Motorized Optical Zoom Lens
  • 1.4x Digital Extender

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • AC Adaptor
  • Power Cable
  • Cable Cover
  • Main Unit Mounting Screw (M3 x 6 mm)
  • Drop-Prevention Wire
  • Bracket Mounting Screws (Bind-Head, M4 x 10 mm)
  • Mount Bracket


  • Three 1/2.86" MOS Sensors and DSP

  • f/1.6 20x Motorized Optical Zoom Lens

  • 1.4x Digital Extender

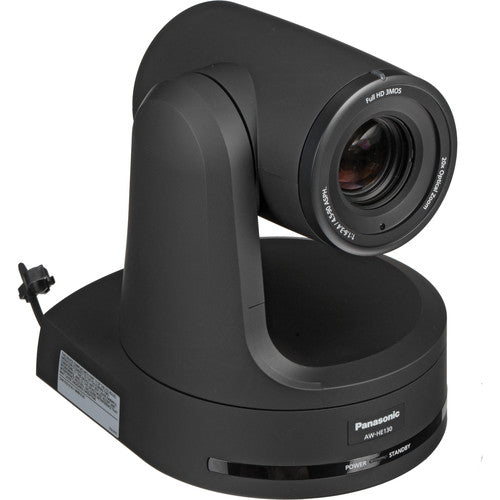

The black Panasonic AW-HE130 HD Integrated Camera from Panasonic is a high-definition, remotely controllable PTZ camera for indoor use. Three 1/2.86 MOS sensors allow this camera to deliver up to four channels of sharp, HD video output with a resolution of up to 1080/60p, in addition to 3G-SDI and HDMI. The AW-HE130 also supports POE+: with only one LAN cable you can power and control the camera and video output. The camera is equipped with 20x zoom, a maximum f/1.6 aperture, and an 1.4x digital extender that can increase the focal length. A built-in neutral density filter and DRS (Dynamic Range Stretch) work in conjunction with 12 color axes and 3 skin tone axes to give you even more control of your resulting images.

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

panasonic-pt-rz870lbu-wuxga-dlp-large-venue-laser-infocus-ina-simint1-simpleshare-interactive-presen
Panasonic

Panasonic AW-HE130 HD PTZ Camera

$5,619.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/2.86"-type Full-HD 3MOS

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

-

N/A

Signal To Noise Ratio

-

N/A

Gain

Auto, 0 dB to 36 dB

N/A

Shutter Speed Range

-

N/A

Exposure Control

-

N/A

White Balance

AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000K to 15000K)

N/A

Image Stabilization

-

N/A

Image Flip

-

N/A

ICR

-

N/A

Sync

Internal/External synchronization (BBS/Tri-level sync)

N/A

Output

1080/59.94p,1080/29.97p,1080/23.98p, 1080/59.94i,1080/29.97PsF,1080/23.98PsF, 720/59.94p,480/59.94p(i),1080/50p,1080/25p, 1080/5

N/A

Audio Input

-

N/A

Audio

-

N/A

Camera Control

When connecting through a hub: LAN cable (category 5e or above, straight cable), max. 100m (328')

N/A

Focal Length

F1.6 to F3.4 (f=4.5 mm to 90 mm; 35 mm equivalent: 32.13 mm to 642.5 mm)

N/A

Minimum Object Distance

-

N/A

Pan Angle

+/-175deg

N/A

Tilt Angle

-30deg. to 210deg.

N/A

Pan Speed

0.08deg./s to 60deg./s

N/A

Tilt Speed

0.08deg./s to 60deg./s

N/A

Presets

-

N/A

Operating Temperature

0 deg.to 40 deg.C / 32 deg. to 104 deg.F

N/A

Power

DC 12 V (AC adaptor supplied) DC 42 - 57 V (PoE+ power supply)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

2 lx (50%, F1.6, 36 dB)

N/A

Optical Zoom

20x

N/A

TAA Compliant

N/A
