Marhsall CV620-NDI Full-HD PTZ Camera (Black)
Marhsall CV620-NDI Full-HD PTZ Camera (Black) is backordered and will ship as soon as it is back in stock.
Need Help? Call Us 800-211-2718
Couldn't load pickup availability
- 1080p/i & 720p Resolution up to 60 fps
- 4.7-94mm Lens, 20x Optical Zoom
- 2MP 1/2.8" Sensor
- 3G/HD-SDI, HDMI, and NDI Outputs
DUNS #074303253
IRS W-9 form
- Remote Control
- Power Cord
- Power Adapter
- RS-422 Connector (Removable)
- Metal Installation Plate A
- Metal Installation Plate B
- Set of M3 Screws
- 1080p/i & 720p Resolution up to 60 fps
- 4.7-94mm Lens, 20x Optical Zoom
- 2MP 1/2.8" Sensor
- 3G/HD-SDI, HDMI, and NDI Outputs
- 2-Megapixel 1/2.8-inch Sensor
- Full-HD: 1920x1080i, 1920x1080p, 1280x720p
- High Speed: 60, 59.94, 50, 30, 29.97, 25 fps
- 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital
- Wide Pan-Tilt Range: 340-degree Horizontal Pan - 120-degree Vertical Tilt
- TRS Audio Line/Mic level select (2.5V to mic)
- Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor
- Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.
- 3G/HD-SDI, HDMI, and NDI simultaneous outputs with support for
- PoE+ (802.3af) Power over Ethernet

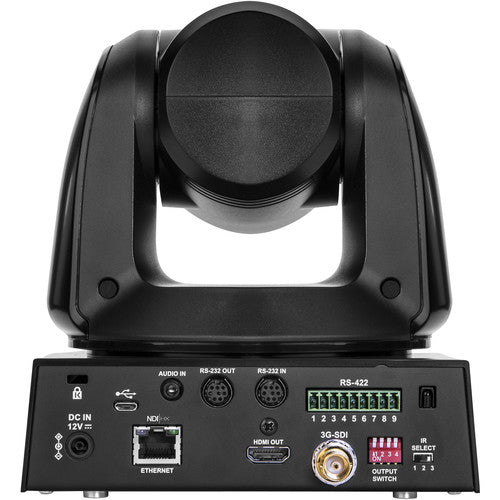

REAR OUTPUTS:
1. USB port for FW updates
2. 12V Power input
3. NDI NETWORK Ethernet (PoE/H.264/Control)
4. HDMI Type-A Output
5. 3G/HD-SDI Output
6. OUTPUT Selection Switch
7. IR SELECT
8. TRS Audio In
9. RS-232 loop-through OUT
10. RS-232 INPUT port
11. RS-422 port

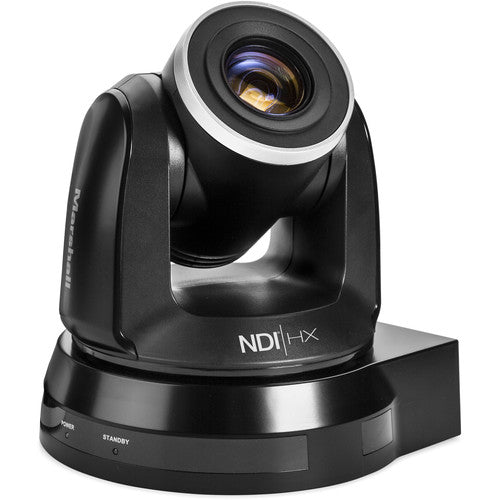

The Marshall CV620-NDI Full-HD PTZ Camera combines the performance and versatility of the popular Marshall CV620 PTZ Camera with NewTek's NDI|HX technology for use with NDI compatible systems. The CV620-NDI is built around a professional grade 2-Megapixel 1/2.8-inch sensor with 20x optical zoom, 340-degree horizontal pan, and 120-degree vertical tilt for complete crisp video coverage of meeting rooms, connected classrooms, control rooms, live events, and more.
In addition to 3G/HD-SDI and HDMI outputs, the CV620-NDI's NDI capability enables this camera to be easily integrated, controlled, and managed using a range of NDI-enabled equipment for seamless IP-based workflows.
- RS422/RS232 Remote Control Interface at High Comm Speeds
- Mountable via table, wall, ceiling mounts included for use with built-in image flip setting
- Compatible with integrated video conferencing systems and NDI-enabled networks
-
Sensor
-
Resolution
-
Signal To Noise Ratio
-
Shutter Speed Range
-
Image Flip
-
Output
-
Audio
-
Camera Control
-
Focal Length
-
Pan Angle
-
Tilt Angle
-
Presets
-
Power
-
Minimum Illumination
-
Optical Zoom
