• 20X Optical Zoom


• Motion & Facial Framing


• RTSP / RTMP Streaming


• 1080@60 SDI Feed


• 59° Field of View


• Multiple Video Outputs


• Supports VISCA Protocol & VISCA over IP

Features:

• Frame Rate: Maximum resolution of 1920 x 1080p @ 60 fps


• Lens Zoom: 20X Optical Zoom, f=4.7-94mm


• Video CMOS Sensor: 1/2.8” EXMOR, 2.14 Mega Pixel


• Pan Movement: ±170°


• Tilt Rotation: Up: +90°, Down: -30°


• Presets: 256 Presets

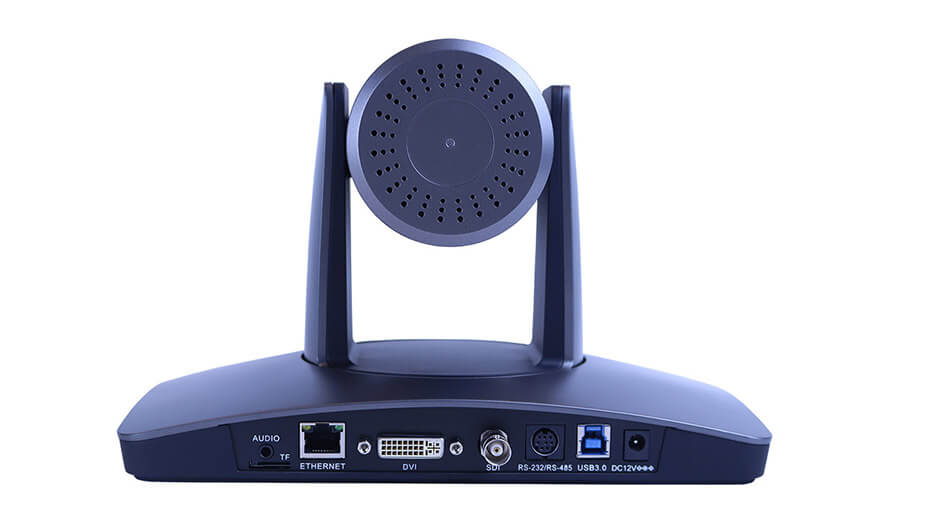

• Video Signal: USB 3.0, 3G-SDI, DVI, RTSP, RTMP


• Top lens Field of View: 3° (tele) 59° (wide) Horizontal


• Bottom Lens Field of View: 44° (vertical) 78° (horizontal)


• Control: IP & RS-232


• Color: Gray


• Power Connection: DC 12V 2.5A (phoenix connector)


• Warranty: 1 Year parts and labor

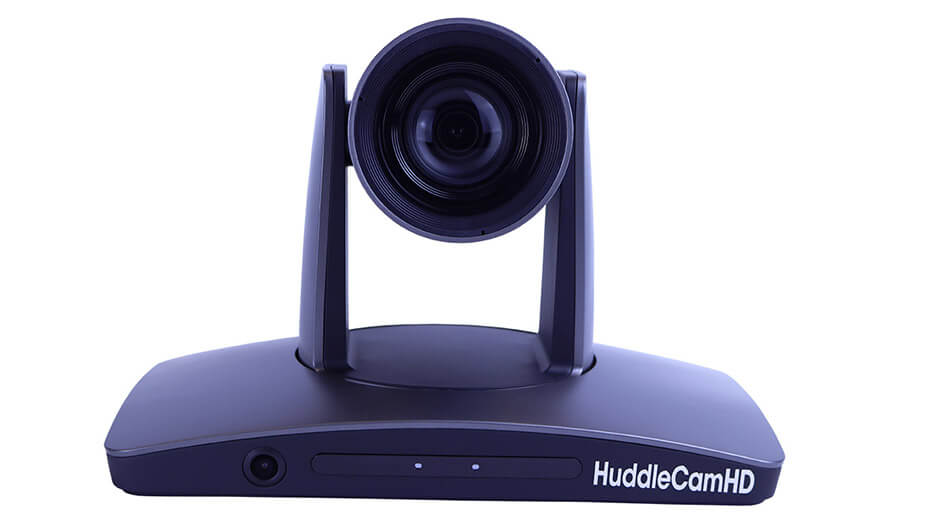

The HuddleCamHD SimplTrack has been designed to automate camera control and reliably track subjects at distances up to 50 feet away from the camera. You will be amazed at how easy the setup and network management is with the SimplTrack. With advanced tracking options, once your camera has been installed you will never need to worry about camera operation again! Complete this USB audio recording solution with a HuddlePod Air wireless USB speakerphone. You can take manual control of your SimplTrack2 at any time using the included software. You can also use our HuddleCamHD Joystick controller.

Automate Camera Operations

We have found auto-tracking cameras alleviate the need for educational institutions to rely on their IT team or hired student camera operators because the HuddleCamHD SimplTrack2 is robotic and automatically follows each instructor through facial and motion tracking. The camera remains focused on whiteboard spaces where the lecture is happening. Proving how easy the SimplTrack 2 is to use, one designated person can manage multiple classrooms and remotely view each classroom as needed.

For many Universities, the HuddleCamHD SimplTrack2 has become a popular choice for the setting up lecture capture and recording systems because of the remote management software. The HuddleCamHD SimplTrack2 Auto Tracking Camera is being used by colleges and universities to enhance their students’ overall educational experience, allowing them to capture high- definition video recordings of classroom presentations so that instructors only need to focus on making impactful presentations. By integrating the 3G SDI, HDMI or USB 3.0 video outputs into the schools lecture capture recording systems (such as Echo 360) the school’s IT or AV team can have a reliable video feed paired with the in-room audio and presentation systems. Most lecture recording system can now be set up to automatically upload recorded video content to the teachers specific learning management system class. As you can see in the software picture here, the SimplTrack2 software features the ability to set up tracking and blocking zones to optimize the auto-tracking camera’s performance.

Automatic Camera Operation

Reliable auto-tracking using motion technology. Easily set up zones for where you don’t want to be tracked such as TVs, doorways, or any other movement distraction.



Remote Management

Remotely manage multiple SimplTrack systems from the SimplTrack Software. Easily control multiple cameras from one software on the same network.



Plug-and-Play USB 3.0 Video

Easily connect your camera to a PC, Mac or ChromeBox and begin auto tracking! (SimplTrack Software MUST be on Windows PC on your network)



Field of View

The HuddleCamHD SimplTrack 2 uses 2 lenses for tracking. The upper lens gets used for the recording/streaming and has a 59° FOV horizontally, while the bottom lens has a FOV of 78° horizontal, and 44° vertical.



Compatibility CheckMark

Works with virtually every online video conferencing software with no need for additional drivers or proprietary connections.



Be seen in 1080p

The SimplTrack uses 3G-SDI or IP streaming for crystal clear video. It outputs 1080p @ 60 FPS whether through SDI, DVI or USB 3.0.
