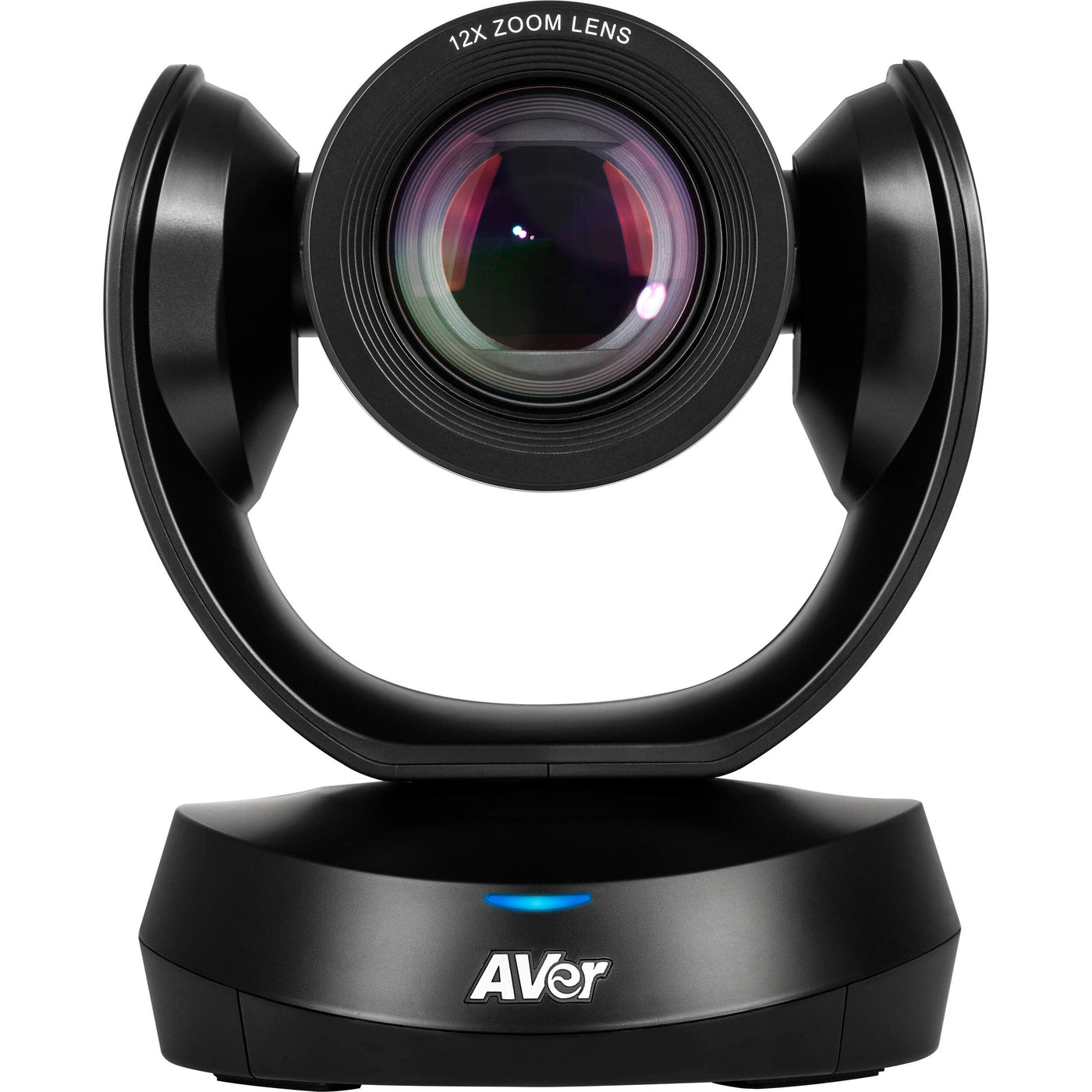

• AVer CAM520 Pro2 Conference Camera

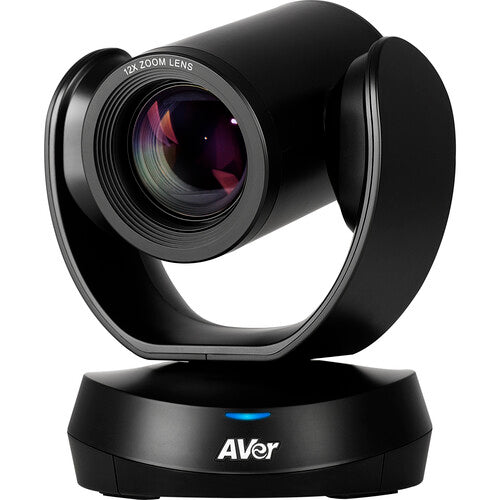

  • AVer CAM520 Pro2 Conference Camera1

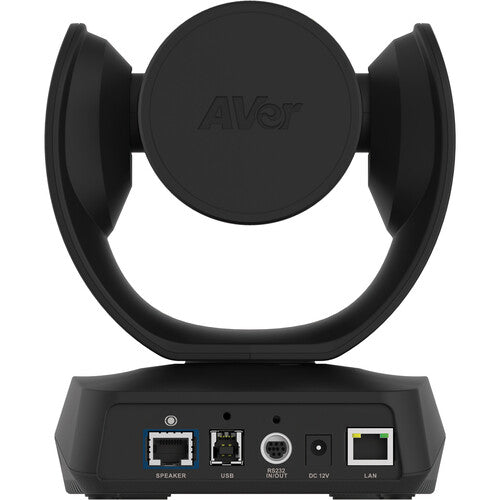

  • AVer CAM520 Pro2 Conference Camera Inputs

AVer CAM520 Pro2 Conference Camera

SKU: COM520PR2  |  UPC: 848090008250
$1,199.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

BACK 2 SCHOOL SALE | additional discount in cart

Request a Quote
AUTHORIZED DEALER
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • Professional USB PTZ Conference Camera
  • 12X Optical Zoom
  • Full HD 1080p Resolution at 60fps
  • 2MP 1/2.8" Low-Light CMOS Image Sensor
  • 82° Wide Diagonal Field of View
  • USB Plug-and-Play with UVC 1.1
  • H.264, MJPEG & YUV Video Formats

Best For

🎓 Education 🏢 Corporate Collaboration 🏨 Hospitality

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

AVer CAM520 Pro2 Professional Conference Camera

The AVer CAM520 Pro2 is a professional Full HD PTZ conference camera designed for medium to large meeting rooms, classrooms, executive boardrooms, and hybrid workspaces. Featuring a 2MP Sony Exmor sensor, 12x optical zoom, SmartFrame AI technology, and Full HD 1080p video at 60fps, the CAM520 Pro2 delivers exceptional image quality and intelligent participant framing for seamless collaboration. With USB plug-and-play connectivity, PoE+ support, RTSP/RTMP streaming, and advanced management capabilities, it's an ideal solution for modern conferencing and professional AV installations.

Crystal-Clear Full HD Video

Deliver professional-quality meetings with outstanding clarity.

  • Full HD 1080p resolution at 60 fps
  • 2MP 1/2.8-inch Sony Exmor sensor
  • Sharp, accurate color reproduction
  • Excellent low-light performance
  • Professional image processing

The Sony Exmor sensor produces vibrant, detailed video, ensuring every participant appears clear and natural during meetings and presentations.

Powerful 12x Optical Zoom

Capture every detail with precision.

  • 12x optical zoom
  • 18x total zoom
  • 84.5° wide-angle field of view
  • Fast autofocus
  • Distortion-free close-ups up to 60 feet away

Quickly zoom in on presenters, whiteboards, or documents while maintaining exceptional image quality.

AI SmartFrame Technology

Keep every participant perfectly framed.

  • AI SmartFrame
  • Facial detection
  • Body detection
  • Automatic participant framing
  • Optimized hybrid meetings

SmartFrame automatically detects everyone in the room and adjusts the camera view to ensure all participants remain visible—even from distances up to 33 feet.

Plug-and-Play Simplicity

Start meetings in seconds.

  • USB 3.1 connectivity
  • Plug-and-play installation
  • Windows compatible
  • macOS compatible
  • Chromebook compatible

Simply connect a single USB cable to begin professional video conferencing without installing additional drivers.

Flexible Streaming & Connectivity

Support conferencing and live streaming with ease.

  • USB 3.1 output
  • LAN connectivity
  • RTSP streaming
  • RTMP streaming
  • H.264 video streaming

The CAM520 Pro2 supports simultaneous conferencing, streaming, and recording for webinars, training sessions, and virtual events.

Professional Camera Controls

Customize your meeting experience.

  • Pan, tilt, and zoom control
  • IR remote included
  • Store up to 10 camera presets
  • PTZApp software support
  • Advanced image adjustments

The included remote and PTZApp software make it easy to save camera positions and fine-tune image settings for professional presentations.

Enterprise Integration

Built for professional AV environments.

  • RS-232 control
  • VISCA-over-IP support
  • Pelco-P and Pelco-D protocols
  • UVC over USB
  • Third-party control system compatibility

The CAM520 Pro2 integrates seamlessly with enterprise AV systems and room control platforms for centralized camera management.

Flexible Installation

Designed for modern conference rooms.

  • PoE+ (IEEE 802.3at) support
  • Desktop placement
  • Wall-mount bracket included
  • Tripod compatible
  • Kensington security slot

Power, networking, and remote management can be delivered over a single Ethernet cable, simplifying installation and reducing cable clutter.

Advanced Device Management

Simplify deployment across your organization.

  • Web-based remote management
  • USB virtualization
  • PoE+ management
  • Remote configuration
  • Easy firmware updates

IT administrators can remotely monitor and manage cameras across multiple rooms or campuses without requiring on-site access.

Broad Platform Compatibility

Works with today's leading collaboration platforms.

  • Microsoft Teams
  • Zoom
  • Cisco Webex
  • Google Meet
  • Skype
  • BlueJeans
  • RTSP/RTMP compatible cloud platforms

The CAM520 Pro2 integrates seamlessly with popular conferencing applications and cloud streaming services.

AVer CAM520 Pro2 Conference Camera
AVer

AVer CAM520 Pro2 Conference Camera

$1,199.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Camera</dt>
<dd>
<ul>
<li>Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions</li>
<li>Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps</li>
<li>SmartFrame for automatic FOV adjustment to fit all participants</li>
<li>Smart Gallery* function offers great visibility for individual participant in the meeting room</li>
<li>Innovative Preset Framing: Follow presenter based on preset areas</li>
<li>True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions</li>
<li>Zoom: 24X* total zoom (12X optical zoom)</li>
<li>Field of view(D/H/V):84.5°/76°/48°</li>
<li>Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)</li>
<li>Lens F#: 1.8 (wide) ~ 2.8 (tele)</li>
<li>Mirror, flip, AE, white balance: auto/manual override via PTZApp 2</li>
<li>Minimum focus distance: 1.5 m</li>
<li>Standard tripod screw holes and Kensington slot</li>
<li>People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage</li>
</ul>
<small>Please use PTZApp 2 to set up Smart Gallery and 24X zoom.</small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Motorized Pan &amp; Tilt Movement</dt>
<dd>
<ul>
<li>Pan: ±170°</li>
<li>Tilt: +90° (up) -30° (down)</li>
<li>10 camera presets (via remote control)</li>
<li>Fast and quiet pan/tilt movement</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Video Format</dt>
<dd>
<ul>
<li>YUV, YUY2, MJPEG, NV12</li>
<li>Network video compression format: H.264, H.265</li>
<li>Network protocol: RTSP, RTMP</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Connectivity</dt>
<dd>
<ul>
<li>12V/2A power adaptor</li>
<li>Mini DIN9 for RS232 in &amp; out connection (VISCA control panel and camera daisy chain)</li>
<li>USB 3.1 type-B connector</li>
<li>IP (RJ45)</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>USB</dt>
<dd>
<ul>
<li>3.1 Gen1 Type B, backward compatible with USB 2.0</li>
<li>UVC (USB video class) 1.1, UVC1.5*</li>
</ul>
<small>*UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.</small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Control</dt>
<dd>
<ul>
<li>IR remote control</li>
<li>VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)</li>
<li>Remote side: VISCA over IP, IP (RJ45)</li>
<li>UVC/UAC plug and play</li>
<li>WebUI: Browser IP access via Chrome (Does not support Internet Explorer)</li>
<li>PTZApp 2</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Package Contents</dt>
<dd>
<ul>
<li>CAM520 Pro2 unit</li>
<li>Remote control</li>
<li>5m, USB2.0 type-B to type-A cable</li>
<li>Power adapter (10 ft/3 m)</li>
<li>QR code card</li>
<li>Wall-mount bracket</li>
<li>¼' tripod screw</li>
<li>Mini DIN9 to mini DIN8 RS232 adapter</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Optional Accessories</dt>
<dd>
<ul>
<li>Mini DIN8 to D-SUB9 RS232 adapter</li>
<li>Foldable TV mount</li>
<li>Ceiling mount</li>
<li>USB3.1 fiber extender 10m/20m/30m</li>
<li>USB3.1, 3m type-B to type-A cable</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Mount</dt>
<dd>
<ul>
<li>Camera wall-mount bracket included</li>
<li>Optional foldable TV mount</li>
<li>Optional ceiling mount</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>System Requirements</dt>
<dd>
<ul>
<li>Windows® 7/10/11</li>
<li>Mac OS X 14.4 or higher</li>
<li>Chromebox 3 version 94.0.4606.114 or later</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Hardware Specs*</dt>
<dd>
<ul>
<li>3.2 GHz Intel® Core™ i5-4460 processor</li>
<li>4 GB RAM or more</li>
<li>USB 3.1 port , backward compatible with USB2.0 port</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Web page browser requirement</dt>
<dd>
<ul>
<li>Chrome: version 76.x or above</li>
<li>Firefox: version 69 or above</li>
<li>IE: Not support</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Power Supply</dt>
<dd>
<ul>
<li>AC 100V ~ 240V, 50/60 Hz</li>
<li>Consumption: 12V, 2A</li>
<li>PoE+: 802.3at</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Free Applications for Meeting Collaboration (Windows® and MAC)</dt>
<dd>
<ul>
<li class="title"><strong>EZManager 2 : Camera Central Management software</strong></li>
<li>Remotely manage group FW/SW updates, camera control, and settings</li>
<li class="title"><strong>PTZApp 2</strong></li>
<li>Support Virtual Streaming function.*</li>
<li>Compatible with Skype for business far-end control</li>
<li>Upgrade firmware automatically or manually</li>
<li>Control camera</li>
<li>Set parameters and adjust camera image</li>
<li>Diagnose operating status</li>
<li>View live video</li>
<li class="title"><strong>EZLive</strong></li>
<li>Real-time streaming / annotating / image capturing / video recording</li>
</ul>
<small>*Only available in Windows PC. Doesn't support in MAC PC.</small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Environmental Data</dt>
<dd>
<ul>
<li>Operation temperature: 0°C ~ 40°C</li>
<li>Operation humidity: 20% ~ 80%</li>
<li>Storage temperature: -20°C ~ 60°C</li>
<li>Storage humidity: 20% ~ 80%</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Dimensions</dt>
<dd>
<ul>
<li>Package dimensions: 256 x 256 x 274 mm</li>
<li>Package weight: 3.335 kg/7.35 lbs</li>
<li>Camera: 182 x 142.7 x 153 mm/1.47 kg</li>
<li>Remote control: 200 x 50 x 21 mm/0.09 kg</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Warranty</dt>
<dd>
<ul>
<li>Camera: 3 years</li>
<li>Accessories: 1 year</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Compatible Applications</dt>
<dd>
<ul>
<li>Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit</li>
</ul>
</dd>
</dl>
</li>
</ul>

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/2.8"-Type CMOS

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

N/A

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

1 x Mini-DIN 9-Pin (RS-232, UVC 1.5) Input

N/A

Focal Length

3.9 to 47.3mm

N/A

Minimum Object Distance

Wide: 4.9' / 1.5 m

N/A

Pan Angle

±170°

N/A

Tilt Angle

+90° (up) -30° (down)

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

32 to 104°F / 0 to 40°C

N/A

Power

AC 100V ~ 240V, 50/60 Hz

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

12x

N/A

TAA Compliant

N/A
View product
