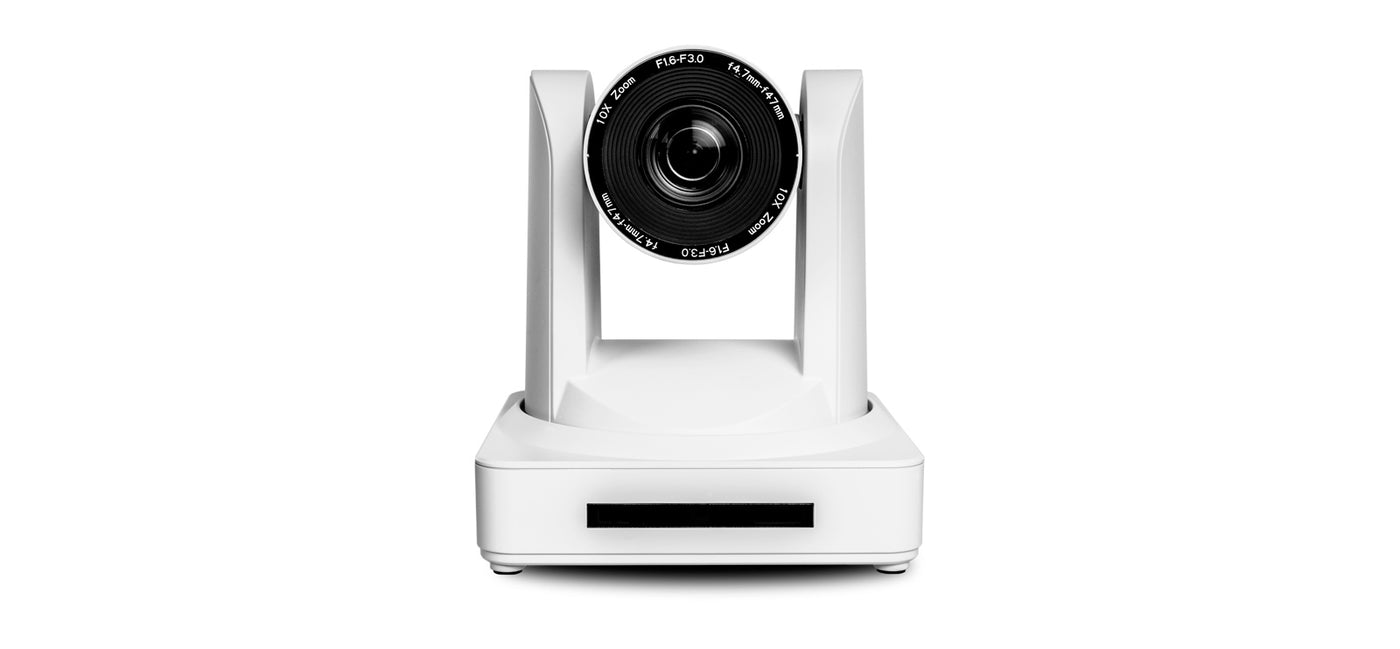

Atlona AT-HDVS-CAM-W PTZ Camera with USB (White)

• 1080P


• 10x optical zoom


• 1/2.8″ low-noise, HD CMOS sensor


• Universal PC compatibility


• USB 2.0 interface for video and camera control

Key Features

• Designed for video conferencing with AV systems supporting USB interfacing and extension

• USB 2.0 interface for video and camera control

• Universal PC compatibility through standard UVC (USB Video Class) driver

• PTZ camera control available from popular soft codec and UC clients such as Microsoft® Teams, Zoom™,

BlueJeans™, Slack™, WebEx®, and GoToMeeting®

• Up to 255 camera presets available, 10 accessible from IR remote

• Supports VISCA, Pelco-D, and Pelco-P camera control protocols

• Fast and accurate auto focus, plus auto white balance and auto exposure modes

• Fast and quiet pan and tilt mechanism

• Picture controls available for brightness, color, saturation, contrast, sharpness, and gamma

• Easy, GUI-based configuration using integrated web server

• TCP/IP, RS-232, USB, and IR control – convenient handheld IR remote control included

• Available video resolutions from 176×144 up to 1080p @ 30 Hz

• High performance imaging, fine detail, and color rendering with 1/2.8″ low-noise, HD CMOS sensor

• Multi-element zoom lens with 10x optical zoom and a 60.9° horizontal field of view

• Camera can be mounted on a wall, or inverted for ceiling installation with the optional AT-HDVS-CAM-CMNT

ceiling mount kit

• Includes installation guide, wall mounting bracket, IR remote control, 2 meter (6.5 foot) USB Type-A male to male

cable, VISCA to RS-232 DB-9 adapter, lens cap, and external universal power supply

• Available in black or white



Introducing the Atlona AT-HDVS-CAM, a high-performance PTZ camera tailored for enterprise-grade video conferencing, lecture capture, distance education, and more. Designed with versatility and seamless integration in mind, this camera offers a USB 2.0 interface for both video and camera control, making it an ideal choice for various applications.

The HDVS-CAM effortlessly integrates with the Omega™ Series, HDVS-300 System, and OmniStream™, providing a comprehensive and automated conferencing system that includes AV and USB extension. Its professional-grade imaging capabilities deliver exceptional video resolutions of up to 1080p @ 30 Hz, ensuring a crisp and clear visual experience.

The camera's auto-focusing mechanism is fast and accurate, while its pan and tilt functionality operates swiftly and quietly. This combination of precision and efficiency makes it well-suited for small to medium-sized meeting spaces, classrooms, and training rooms.

The HDVS-CAM is available in both black and white, offering flexibility to match various room aesthetics. Additionally, Atlona's family of PTZ cameras includes the HDVS-CAM-HDBT with HDBaseT output and the HDVS-CAM-HDMI with HDMI output and USB 2.0 interface, providing further options to cater to specific requirements.

To facilitate easy installation, the camera comes with a handheld IR remote control and mounting hardware for on-wall installation. An optional AT-HDVS-CAM-CMNT is available for inverted ceiling mounting, enhancing its adaptability to different room configurations.

In conclusion, the Atlona AT-HDVS-CAM is a top-tier PTZ camera that excels in professional-quality imaging and smooth camera control. Its compatibility with various conferencing systems, easy installation, and multiple output options make it a reliable and versatile choice for enterprise settings, education environments, and beyond.
