Atlona AT-HDVS-CAM-HDMI-BK PTZ Camera with HDMI Output and USB (Black)
Atlona AT-HDVS-CAM-HDMI-BK PTZ Camera with HDMI Output and USB (Black) is backordered and will ship as soon as it is back in stock.
Need Help? Call Us 800-211-2718
Couldn't load pickup availability
Accessories
- HDMI output
- USB 2.0 interface for video and camera control
- Universal PC compatibility
- 1/2.8″ low-noise, HD CMOS sensor
- 10x optical zoom
- 1/2.8” HD CMOS
DUNS #074303253
IRS W-9 form
- 1 x Wall mounting plate
- 1 x 1/4 20OUNC screws
- 1 x IR Remote Control
- 1 x USB A cable
- 1 x VISCA to RS-232 DB-9 adapter
- 2 x AAA battery
- HDMI output
- USB 2.0 interface for video and camera control
- Universal PC compatibility
- 1/2.8″ low-noise, HD CMOS sensor
- 10x optical zoom
- 1/2.8” HD CMOS
FEATURES
- Designed for video conferencing and other applications such as lecture capture and distance education
- HDMI output
- USB 2.0 interface for video and camera control
- Simultaneous video output over HDMI and USB
- Universal PC compatibility through standard UVC (USB Video Class) driver
- PTZ camera control available from popular soft codec and UC clients such as Microsoft® Teams, Zoom™, BlueJeans™, Slack™, WebEx®, and GoToMeeting®
- Up to 255 camera presets available, 10 accessible from IR remote
- Supports VISCA, Pelco-D, and Pelco-P camera control protocols
- Fast and accurate auto focus, plus auto white balance and auto exposure modes
- Fast and quiet pan and tilt mechanism
- Picture controls available for brightness, color, saturation, contrast, sharpness, and gamma
- Easy, GUI-based configuration using integrated web server
- TCP/IP, RS-232, USB, and IR control – convenient handheld IR remote control included
- Delivers HD video resolutions including 1080p @ 60 Hz (176×144 up to 1080p @ 30 Hz over USB 2.0)
- High performance imaging, fine detail, and color rendering with 1/2.8″ low-noise, HD CMOS sensor
- Multi-element zoom lens with 10x optical zoom and a 60.9° horizontal field of view
- Camera can be mounted on a wall, or inverted for ceiling installation with the optional AT-HDVS-CAM-CMNT ceiling mount kit
- Includes installation guide, wall mounting bracket, IR remote control, 2 meter (6.5 foot) USB Type-A male to male cable, VISCA to RS-232 DB-9 adapter, lens cap, and external universal power supply
- Available in black or white
- Limited product warranty: 10 years for electronic circuit and optics; 3 years for PTZ motor

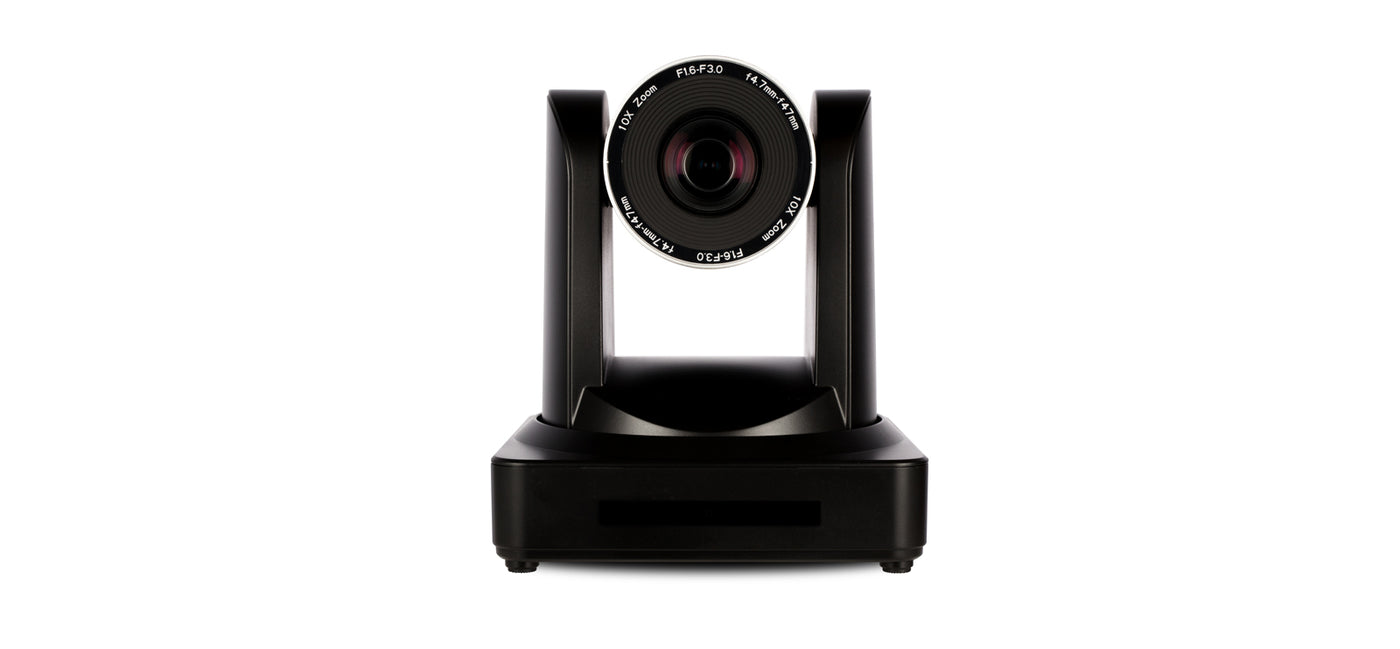

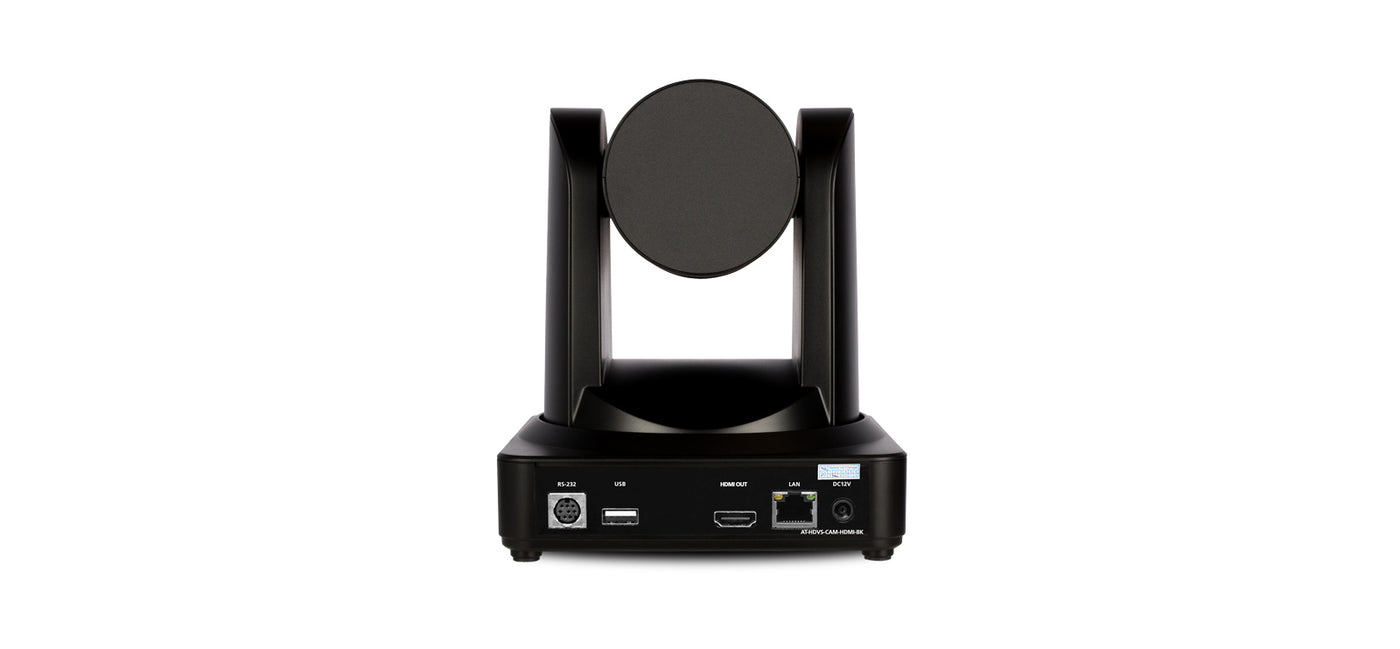

The Atlona AT-HDVS-CAM-HDMI is an enterprise-grade PTZ camera designed for use in video conferencing and other applications such as lecture capture and distance education. It features HDMI output, as well as a USB 2.0 interface for video and camera control. Simultaneous video output is available over both interfaces. Through USB, the HDVS-CAM-HDMI seamlessly integrates with the Omega™ Series and HDVS-300 System for a complete, automated conferencing system that includes AV and USB extension. The HDMI output is ideal for use with a video conferencing codec, lecture capture appliance, or PC equipped for video capture. The HDVS-CAM-HDMI delivers high performance, professional-quality imaging with video resolutions up to 1080p @ 60 Hz over HDMI and 1080p @ 30 Hz for USB 2.0, as well as fast and accurate auto-focusing, and a fast yet quiet pan and tilt mechanism. This PTZ camera is ideal for a wide range of small to medium-sized meeting spaces, classrooms, training rooms, and many other environments. The HDVS-CAM-HDMI is available in black or white.
The HDVS-CAM-HDMI is part of a family of PTZ cameras that includes the HDVS-CAM with USB 2.0 interface, as well as the HDVS-CAM-HDBT with HDBaseT output. It includes a handheld IR remote control, plus mounting hardware for convenient on-wall installation. Available as an option is the AT-HDVS-CAM-CMNT for inverted ceiling mounting.
-
Resolution
-
Signal To Noise Ratio
-
Gain
-
Exposure Control
-
White Balance
-
Output
-
Camera Control
-
Focal Length
-
Pan Angle
-
Tilt Angle
-
Pan Speed
-
Tilt Speed
-
Presets
-
Operating Temperature
-
Power
-
Minimum Illumination
-
Optical Zoom
