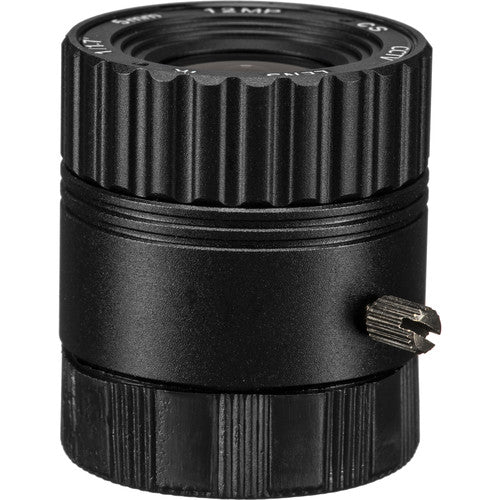

Marshall CS-Mount 5mm Fixed Lens for 12MP Cameras

High-Resolution Optics for CS-Mount Cameras

The Marshall CS-Mount 5mm Fixed Lens is designed for 12MP cameras equipped with a 1/1.7" image sensor, delivering sharp, detailed imagery for professional video and imaging applications.


Wide 87° Field of View

With a 5mm focal length, this lens provides an 87° horizontal field of view, offering broad scene coverage while maintaining accurate perspective and image clarity.


IR-Corrected Performance

The lens is IR corrected, ensuring consistent focus and image accuracy in both visible and infrared lighting environments, making it suitable for day/night operation.


Fixed Iris, Stable Imaging

Featuring fixed iris operation, the lens delivers reliable performance in controlled lighting conditions with minimal adjustment requirements.

Marshall Electronics CS-5.0-12MP CS-Mount 5mm Fixed Lens

SKU: CS5012MP | UPC: 801813193008
Authorized Dealer Authorized Marshall Electronics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$84.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Marshall Electronics CS-5.0-12MP CS-Mount 5mm Fixed Lens $84.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_22p_DbxsLr4MV-m3EOA_5T">\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Compatible with 12MP Cameras</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">CS Mount</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">5mm Focal Length</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Compatible with 1/1.7" Sensors</li>\n</ul>
Marshall Electronics CS-5.0-12MP CS-Mount 5mm Fixed Lens
Marshall Electronics

Marshall Electronics CS-5.0-12MP CS-Mount 5mm Fixed Lens

$84.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>Lens Mount</strong> CS
<strong>Sensor Compatibility</strong> 1/1.7", 1/2.5", 1/3"
<strong>Focal Length</strong> 5mm
<strong>Back Focal Length</strong> 6.39mm
<strong>Aperture</strong> f/2

<strong>Angle</strong> <strong>of View
</strong> 1/1.7" Sensor
Diagonal: 114.4°
Horizontal: 87°
Vertical: 61.8°
1/2.5" Sensor
Diagonal: 87°
Horizontal: 68.6°
Vertical: 49.7°
1/3" Sensor
Diagonal: 70.9°
Horizontal: 55.5°
Vertical: 41.2°

<strong>Minimum Object Distance</strong> 0.98' / 0.3 m
<strong>Focus Type</strong> Fixed Focus
<strong>Iris Type</strong> Fixed
<strong>Distortion</strong> -43.7%
<strong>IR Corrected</strong> Yes
<strong>Operating Temperature</strong> -4 to 140°F / -20 to 60°C
<strong>Flange Back Length</strong> 0.49" / 12.5 mm
<strong>Dimensions</strong> (ø x L) 1.1 x 1.23" / 28 x 31.3 mm
<strong>Weight</strong> 1.44 oz / 40.9 g
