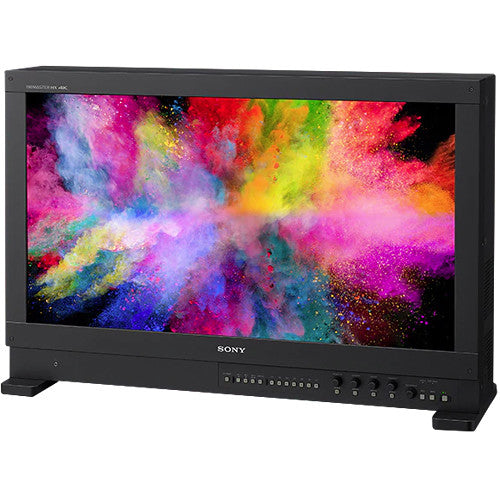

Sony BVM-HX310 31-inch 4K TRIMASTER HX™ Professional Master Monitor

Sony BVM-HX310 31" 4K HDR TRIMASTER HX Professional Master Monitor

The Sony BVM-HX310 is a high-performance 4K HDR monitor tailored for cinematography production and post-production workflows. It pairs seamlessly with Sony's 4K cinematography cameras, ensuring accurate and reliable monitoring for professionals.

Key Specifications

• Screen Size: 31"
• Resolution: Up to 4096 x 2160
• HDR Capability: High Dynamic Range with deep blacks and bright highlights
• Contrast Ratio: 1,000,000:1
• Brightness: 1000 cd/m²
• Viewing Angles: 89°
• Connectivity:
  • 8x SDI inputs
  • 1x HDMI port
  • 1x RJ45 Ethernet port
• Power: Includes AC power cord and plug holder

Advanced HDR Features

• Wide Color Gamut: Delivers high-resolution images with clarity, depth, and realism.
• HDR Support: Standardized EOTFs such as SMPTE ST.2084, ITU-R BT.2100 (HLG), and additional options like S-Log2 and S-Log3 for film-like workflows.
• Video Payload ID (VPID): Automatically detects EOTF, color space, and RGB source from SDI signals for error-free setup.

Enhanced Workflow Efficiency

• User LUT Support: Load custom LUTs via USB for pre-grading comparisons or alternate EOTFs.
• Quad-View Display Mode: Compare up to four sets of custom display settings simultaneously.
• Streamlined Connectivity: Single-cable 12G-SDI input with support for 3G/HD-SDI (single-/dual-link) and HDMI 1.4 (HDCP 2.3).

Performance and Control

• Low Processing Delay: Less than one video frame for real-time monitoring.
• Interlace Display Mode: Provides artifact-free 1080i input signal monitoring.
• Front Panel Controls: Seven user-assignable buttons and manual controls for aperture, chroma, brightness, and contrast.
• Marker Flexibility: Two custom markers for specialized applications like shopping channels.

User-Centric Design

• Password Protection: Ensures secure access to user settings.
• Last-Used Settings Memory: Retains key settings, including color space and user presets, for instant recall.
• Dimmable Lights: Adjustable button and indicator lights for a distraction-free workspace.

PrimeSupport Warranty

Includes expert technical support for added peace of mind and reliable assistance when needed.

The Sony BVM-HX310 is an indispensable tool for professionals who demand precision and flexibility in their 4K HDR production and post-production workflows.
