Vaddio RoboSHOT 40 UHD 4K OneLINK Bridge Express System (Black Camera) 999-9952-270
Vaddio RoboSHOT 40 UHD 4K OneLINK Bridge Express System (Black Camera) 999-9952-270 is backordered and will ship as soon as it is back in stock.
AUTHORIZED DEALER
- Manufacturer Warranty Included
- Lifetime Technical Support from OfficeWonderland
- No Sales Tax for Qualified Tax-Exempt Organizations
- Purchase Orders Accepted (Net 30 Available)
Vaddio RoboSHOT 40 UHD 4K OneLINK Bridge Express System (Black Came...
Key Features
- UHD 4K30 Video
- 40x Powerful Zoom
- HDMI USB And IP
- 330-Foot Single-Cable Extension
- Genlock And Smooth Movement
Best For
Purchase Orders & Tax-Exempt
We proudly support schools, universities, government agencies, and qualified businesses.
- Net 30 Purchase Orders
- Tax-Exempt Sales for Eligible Organizations
- W-9 Available Upon Request
Vaddio RoboSHOT 40 UHD 4K OneLINK Bridge Express System – Black

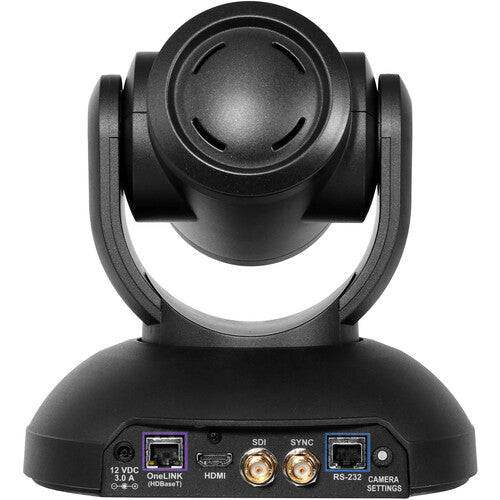

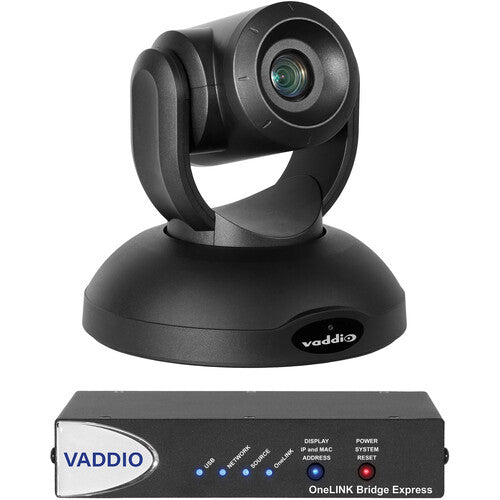

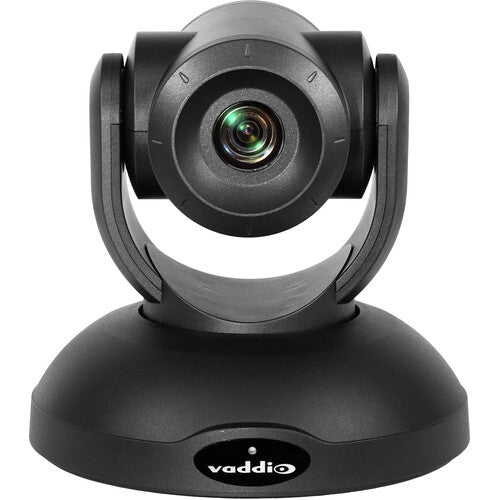

The Vaddio RoboSHOT 40 UHD 4K OneLINK Bridge Express System combines the professional imaging capabilities of the RoboSHOT 40 UHD PTZ Camera with the streamlined connectivity of the OneLINK Bridge Express. Designed for broadcasting, live streaming, distance learning, corporate communications, and houses of worship, the system delivers UHD 4K video, powerful zoom performance, and professional camera control while extending power, video, Ethernet, and control over a single cable.
UHD 4K Video
The RoboSHOT 40 UHD captures UHD 4K (3840 x 2160) video at up to 30 fps or Full HD 1080p at up to 60 fps.
Its 1/2.5" Exmor R image sensor provides the image quality required for professional broadcasting, streaming, conferencing, and presentation applications.
Powerful Zoom Performance
The camera features a 20x optical zoom combined with advanced lossless zoom capabilities.
Zoom performance includes:
- 20x optical zoom
- Up to 30x lossless zoom in 4K
- Up to 40x zoom in HD
- 70° horizontal field of view at wide
- Approximately 2° field of view at maximum zoom
This extensive range makes the camera suitable for both wide room coverage and detailed shots of presenters, speakers, performers, and other distant subjects.
Multiple Simultaneous Video Outputs
The RoboSHOT 40 UHD provides multiple video outputs that can remain active simultaneously, eliminating the need to select only one destination.
Available output options include:
- HDMI
- HDBaseT
- 3G-SDI
- IP streaming
This allows the camera to feed multiple displays, recorders, production systems, or streaming destinations as part of a professional AV workflow.

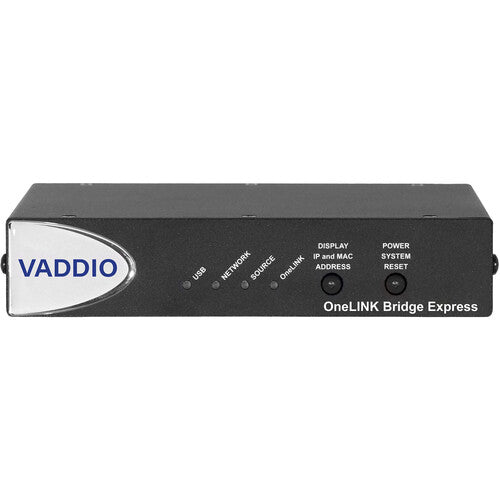

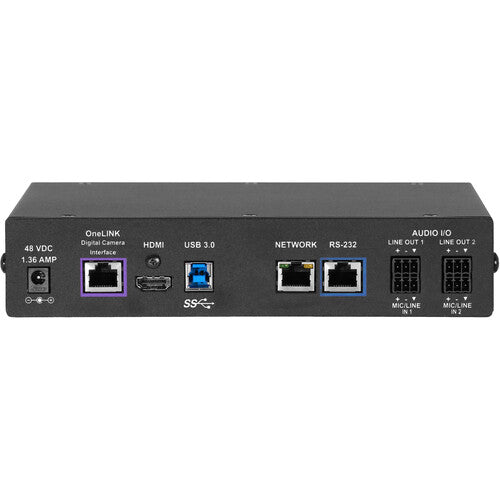

OneLINK Bridge Express
The included OneLINK Bridge Express simplifies installation by extending HD video, Ethernet, RS-232 control, and power between the camera and AV equipment over a single cable.
Using Cat 6 cabling, the system supports transmission distances of up to 328 feet, providing greater flexibility when positioning the camera in larger spaces.
Single-Cable Installation
The OneLINK architecture reduces the amount of cabling required between the camera and equipment rack.
Power, video, network connectivity, and camera control can be extended through the system, helping create a cleaner and more manageable professional installation.
USB 3.0 Video Output
The OneLINK Bridge Express can provide uncompressed video up to 1080p60 over USB Type-B, allowing the professional PTZ camera system to integrate with compatible computers and USB-based conferencing or production workflows.
External Genlock Support
The RoboSHOT 40 UHD supports external genlock, making it particularly useful in professional multi-camera productions.
Genlock helps synchronize the camera with other video equipment, simplifying integration into broadcast and live-production environments where multiple cameras and video sources are used together.
Smooth & Silent PTZ Movement
Vaddio's next-generation silent motors and Tri-Synchronous motion technology provide smooth pan, tilt, and zoom movement.
The system is engineered to maintain stable motion even at high zoom levels, helping produce professional camera movements without distracting jitter or bouncing.
IP Streaming
Built-in IP streaming allows video to be distributed directly over a network.
Because IP streaming can operate alongside the camera's other video outputs, the RoboSHOT 40 UHD can support flexible workflows involving recording, monitoring, conferencing, and live streaming simultaneously.
Flexible Camera Control
The RoboSHOT 40 UHD provides multiple control options for professional and integrated AV environments.
Camera control is available through:
- Included IR remote control
- RS-232
- HDBaseT
- Ethernet/network control
- Browser-based web interface
The web interface enables authorized users to configure and control the camera remotely from a compatible networked device.
-
General
-
Sensor
-
Resolution
-
Signal To Noise Ratio
-
Output
-
Audio Input
-
Pan Angle
-
Tilt Angle
-
Pan Speed
-
Tilt Speed
-
Optical Zoom
