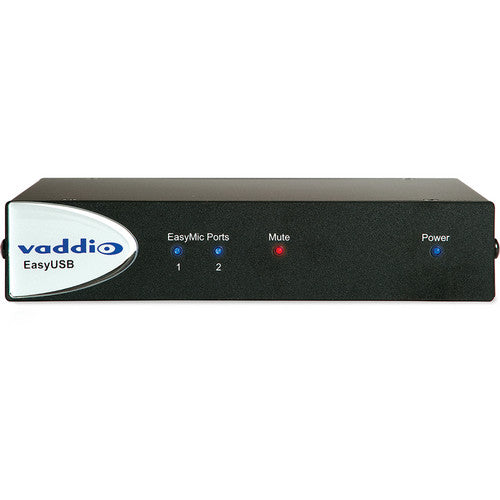

Vaddio EasyUSB Mixer/Amp 999-8530-000

SKU: 9998530000  |  UPC: 840077501853
$1,071.90
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Supports up to two EasyMic Devices (MicPOD or Ceiling MicPOD) using RJ-45 & Cat. 5 for audio, control, and power (100 feet)

  • 2 x 20 Watt Class-D amplifier with 2-Pin Euro Terminal

  • Connects to PC as a USB sound device

  • USB 2.0 Audio Class Device (UAC) / no drivers required

  • Auxiliary Line Input and Output

  • Unbalanced Line Input and Output (RCA)


The EasyUSB Mixer/Amp supports up to two EasyTALK™ MicPOD™ microphones. In addition, analog line level I/O interfaces allow for integration with external AV equipment such as videoconferencing codecs, external amplifiers or LCD displays. The EasyUSB Mixer/Amp also has a 2 x 20 watt integrated audio amplifier for connection to external 4/8-Ohm speakers.

The EasyTALK USB uses a standard UAC driver, based on the guidelines set by the USB Implementers Forum, so you do not need to download any additional software or drivers. Instead, you just plug in each device and they work automatically with any operating system — Windows, Mac, Linux — you name it. It’s completely driver-free. They are designed as a truly plug-and-play audio solution for software-based conferencing systems.

Is This Right For You?


Recommendation


Vaddio EasyUSB Mixer Amp 999-8530-000
Vaddio

Vaddio EasyUSB Mixer/Amp 999-8530-000

$1,071.90

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>Audio :</strong>
Frequency Response: 20 Hz to 20 kHz
Dynamic Range: &gt;90 dB
THD + Noise: &lt;0.02%

<strong>Line Input/Output:</strong>
Analog
Connector: RCA (unbalanced)
Impedance: 10 kΩ
Nominal Level: -10 dBu

<strong>Amplifier:</strong>
Connector: 2-pin Molex Euro
Impendence: 8 Ω
Amplifier Output: 2 x 20 W
THD + Noise: &lt;0.2% at 1/3 power

<strong>Audio Interface:</strong>
USB
Connector: Type-B
PC Audio Controls: Mute &amp; volume
PC HID Controls: On / off hook

<strong>Ports:</strong>
Connectors: 2 x RJ 45-F
Proprietary Interface
Cable Distance: Maximum 100.0' (30.4 m) CAT-5

<strong>Settings:</strong>
Audio Processing
8-Position Dip Switch: Mixing modes, compressor, filter, delay

<strong>Indicators :</strong>
User Communications status, mute, power

<strong>Power Supply :</strong> 18 VDC, 2.75 A
<strong>Protocol :</strong> Serial Control: RS-232 (external control)
<strong>Operating Conditions :</strong>
<strong> Temperature:</strong> 32 to 104° F (0 to 40° C)
<strong>Relative Humidity:</strong> 20 to 80%
<strong>Power Consumption:</strong> Maximum 40 W
<strong>Dimensions (H x W x D)</strong>: 8.38 x 6.00 x 1.72"
<strong>Weight :</strong> 1.42 lb (0.65 kg)
