Vaddio EasyIP 20 Mixer Base Kit AV-over-IP Multi-Camera Conferencing System

The Vaddio EasyIP 20 Mixer Base Kit is a complete AV-over-IP multi-camera conferencing and production system designed for large rooms, classrooms, training facilities, houses of worship, government spaces, and other professional AV environments. Combining an EasyIP 20 PTZ Camera, EasyIP Mixer, and preconfigured EasyIP PoE+ managed switch, the kit provides the essential components needed to build a flexible network-based video system.

The compact EasyIP Mixer supports up to four EasyIP camera feeds plus an HDMI source, while integrated Dante audio capabilities provide flexible professional audio routing. With concurrent 1080p60 USB 3.0 and HDMI output, the system can support conferencing, recording, streaming, local presentation, and multi-camera production workflows.

Multi-Camera AV-over-IP Production

The EasyIP Mixer provides a streamlined platform for building professional productions around network-connected Vaddio EasyIP cameras.

The system can accommodate up to four EasyIP camera video feeds, allowing different areas of a room to be covered from multiple perspectives.

Camera positions can be dedicated to:

• Presenters
• Instructors
• Meeting participants
• Audience members
• Lecterns
• Stages
• Whiteboards
• Demonstration areas

This multi-camera capability makes the system particularly effective in larger spaces where a single camera may not provide sufficient coverage.

Compact AV Switcher

At the center of the system is the Vaddio EasyIP Mixer, a compact professional AV switcher designed to combine network video, external video, and Dante audio into a centralized production workflow.

The mixer supports:

• Up to 4 EasyIP camera feeds
• 1 HDMI video source
• Dante network audio
• USB 3.0 video output
• HDMI video output

The additional HDMI input makes it possible to incorporate presentation content or another compatible external video source alongside the EasyIP cameras.

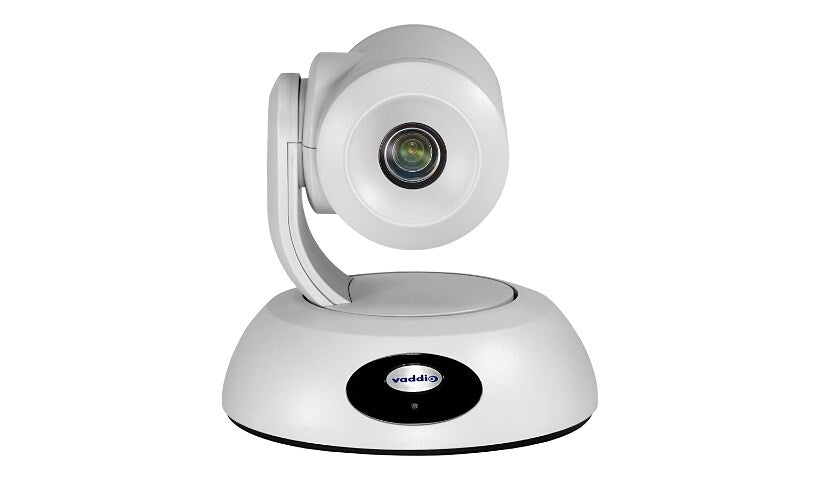

EasyIP 20 PTZ Camera

The Base Kit includes a Vaddio EasyIP 20 PTZ Camera designed to provide professional HD video capture over the network.

Featuring a 20x optical zoom lens and approximately 70° horizontal field of view, the camera provides the flexibility needed to capture both wide room views and detailed shots of distant presenters.

Powerful 20x Optical Zoom

The EasyIP 20's 20x optical zoom provides extended reach for larger conference rooms, classrooms, training spaces, and presentation environments.

Users can transition from broad views of the room to close-up shots of presenters, speakers, or other subjects without physically repositioning the camera.

This additional zoom range is particularly useful when the camera must be installed farther away from the primary presentation area.

70° Horizontal Field of View

A wide approximately 70° horizontal field of view helps the EasyIP 20 capture groups, presentation areas, and larger portions of the room.

Combined with its 20x optical zoom, the camera provides the versatility to handle both wide-angle coverage and tightly framed distant subjects.

Full HD 1080p60 Output

The EasyIP Mixer provides professional Full HD output at up to 1080p60, delivering smooth motion and detailed video for conferencing and production applications.

Full HD 60 fps output makes the system suitable for:

• Video conferencing
• Lecture capture
• Training
• Live production
• Recording
• Streaming
• Hybrid meetings
• Remote collaboration

Concurrent USB 3.0 & HDMI Output

The EasyIP Mixer supports simultaneous 1080p60 USB 3.0 and HDMI output, allowing the produced program feed to serve multiple applications at the same time.

For example, USB 3.0 can provide video to a conferencing computer while HDMI feeds a local display, recorder, switcher, or other compatible AV device.

This simultaneous-output capability provides additional flexibility when building hybrid conferencing and presentation systems.

Dante Network Audio

Integrated Dante audio allows professional networked audio sources to be incorporated into the EasyIP Mixer workflow.

The mixer features a 4x4 Dante audio matrix with a 10x10 cross-point audio matrix, providing flexible routing of audio sources throughout the system.

Dante integration makes it easier to incorporate compatible:

• Network microphones
• Audio DSPs
• Mixers
• Amplifiers
• Other Dante-enabled AV equipment

Preconfigured PoE+ Managed Switch

The EasyIP 20 Mixer Base Kit includes a preconfigured PoE+ managed network switch to provide power and network connectivity for compatible EasyIP endpoints.

Centralizing power and data through the network helps simplify system installation and reduces the need for separate power supplies at individual camera locations.

EasyIP Network Architecture

Vaddio's EasyIP platform uses standard network infrastructure to transport camera video and control signals.

This AV-over-IP architecture can help reduce traditional point-to-point AV cabling while providing greater flexibility for camera placement and future system expansion.

Benefits include:

• Simplified network-based installation
• Flexible camera placement
• Centralized PoE+ power
• Easier multi-camera expansion
• Reduced dedicated AV cabling
• Scalable system architecture

Expandable Up to Four EasyIP Cameras

Although the Base Kit includes one EasyIP 20 Camera, the EasyIP Mixer can support video feeds from up to four EasyIP cameras.

Additional compatible EasyIP cameras can be incorporated as coverage requirements grow, making the platform suitable for organizations that want to start with a single camera and expand into a larger multi-camera environment.

Flexible System Control

The EasyIP Mixer supports multiple control methods for integration into professional AV environments.

Available control options include:

• Serial control
• Telnet control
• Trigger control
• Vaddio Device Controller
• Web-based control

This flexibility allows the system to accommodate both straightforward user operation and more advanced integrated AV control workflows.

Web-Based Management

Web-based control provides convenient access to system configuration and operation through a compatible browser.

AV and IT personnel can manage system functions over the network without requiring direct physical access to the EasyIP Mixer.

Designed for Large Rooms

The combination of a 20x optical zoom PTZ camera, multi-camera switching, Dante audio, and network-based AV distribution makes the EasyIP 20 Mixer Base Kit particularly suitable for larger professional spaces.

The system can provide comprehensive coverage while allowing presenters and participants to be captured from multiple camera positions.
