• 55" 10-Bit OLED Display
• UHD 4K Resolution (3840 x 2160)
• HDR (High Dynamic Range) Mode
• 3G-SDI Quad-View up to 4K 60p

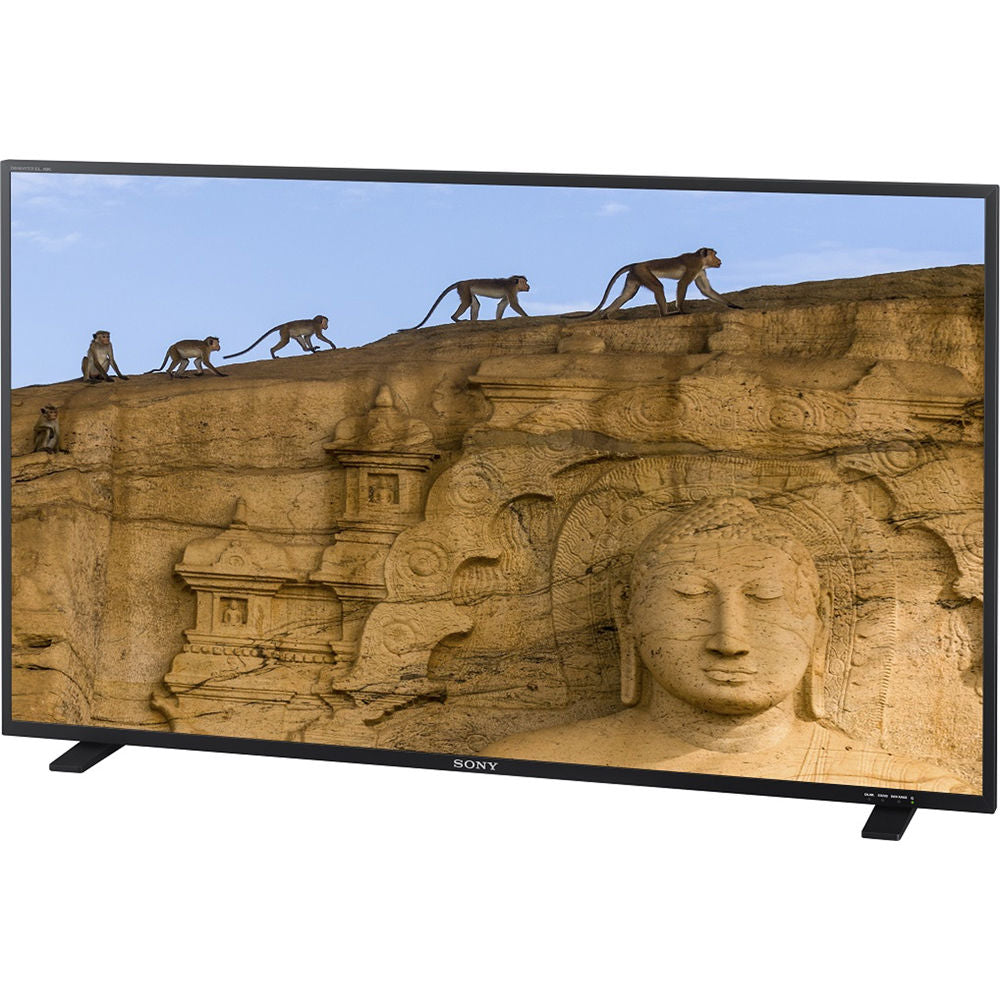

The PVM-X550 55" 4K Trimaster EL OLED Monitor from Sony is a professional monitor designed for use as a companion client monitor alongside the more compact Sony BVM-X300 master monitor. Features of this UHD 4K (3840 x 2160) monitor include an HDR (high dynamic range) mode, precise black and color reproduction, wide color-gamut support, individual pixel shutoff, a wide viewing angle, and lightweight form factor. Both 4K 2-sample interleave, and 4K square division signals are supported. In 3G/SDI quad-view mode, the PVM-X550 supports up to 2160p60, with separate settings for each of the four displays.

The PVM-X550's high dynamic range renders images with complex lighting in greater detail with finer tonal range, and improved shadow and highlight reproduction. The monitor's S-Gamut3.cine and S-Gamut3 color gamut support coordinates with Sony 4K camera color spaces.

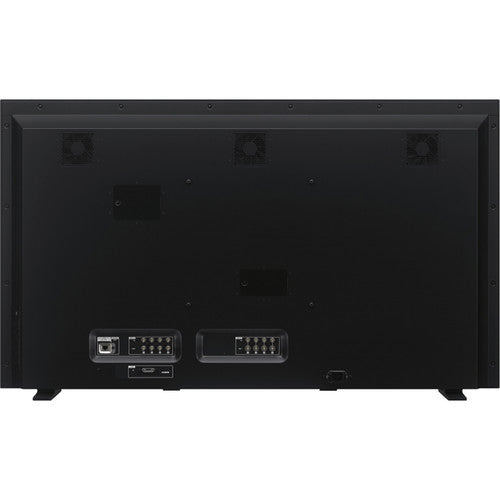

Additional features include Ethernet-based remote control via the optional BKM-16R unit, detailed and adjustable marker settings, up to five lockable user-preset profiles, a slim and lightweight form, and dual-position wall mounting. Interfaces consist of two sets of quad-3G/SDI inputs and outputs, HDMI and LAN inputs, and a stereo 3.5mm mini jack audio output.

55" 4K (3840 x 2160) OLED Panel

The lightweight, 10-bit, 4K OLED panel features a 1.78:1 (16x9) aspect ratio and adjustable markers

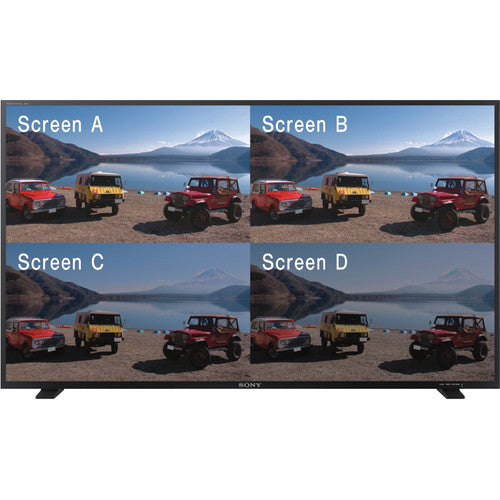

Quad-View Display Function

View four HD feeds simultaneously while controlling each view separately

HDR (High Dynamic Range) Display Mode

HDR mode displays greater shadow detail, truer blacks, and increased tonal range

Precise Black and Color Reproduction

Individual pixels can be fully turned off, enabling deeper blacks and accurate color reproduction

Wide Color-Gamut Support

S-Gamut3 and S-Gamut.cine support coordinates with Sony 4K cine-style cameras, while partial support is offered for ITU-R BT.2020 and ITU-R BT.709 color gamuts

Gamut Marker for Rec. 2020 Colors

Rec. 2020 colors, from Rec.709 and DCI-P3 color gamuts, are marked with a zebra pattern

Multiple Gamma Support

In addition to 2.2, 2.4, and CRT, multiple gammas (including S-Log2, S-Log3, ST.2084, and HLG) are supported

Additional Features

Two sets of quad 3G/SDI inputs/outputs

• One HDMI input


• One LAN input


• Five lockable user-preset profiles


• Dual wall-mounting positions

Ethernet-based remote control for up to 32 monitors via the optional BKM-16R control unit (not included)
