Product Summary

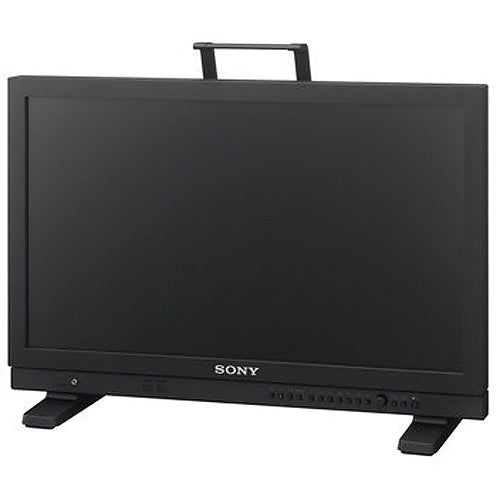

Sony LMD-A220 22" LCD Production Monitor

The Sony LMD-A220 is a versatile 22" Full HD monitor designed for on-set, studio, and broadcast applications. Combining a robust feature set with professional-grade image quality, this monitor is ideal for accurate video analysis and production monitoring.

Key Features

Display & Image Quality

  • Resolution: 1920 x 1080 Full HD for sharp and detailed visuals.
  • Panel Type: IPS LCD with wide 178° horizontal and vertical viewing angles.
  • Color Gamut Support: Includes SMPTE-C, EBU, ITU-R BT.709, and Native modes.
  • I/P Conversion: New low-latency automatic interlace-to-progressive conversion ensures smooth playback.
  • S-Log2 to Rec 709 LUT: Built-in LUT for accurate color monitoring during HDR workflows.

Comprehensive Input/Output Support

  • Video Inputs:
    • Dual 3G/HD/SD-SDI with active loop-through.
    • HDMI input for versatile connectivity.
    • Composite input with loop-through for analog devices.
  • Frame Rate Support: NTSC/PAL, 720p, 1080i, and 1080p at 24p–60p.

Advanced Monitoring Tools

  • Waveform Monitor: Built-in with zoom and line select capabilities for precise signal analysis.
  • Vectorscope: Provides color information with zoom for detailed evaluation.
  • Focus Assist: Adjustable colored peaking for critical focus accuracy.
  • Timecode Display: Displays embedded timecode for seamless synchronization.
  • Closed Captioning: EIA/CEA 608 and 708 captions decoding and display.

Audio Features

  • Embedded Audio: Decodes up to 16 SDI audio channels.
  • Audio Monitoring:
    • Front-panel 3.5mm headphone jack.
    • 1W built-in speaker for quick sound checks.
    • 3.5mm stereo mini jack input for analog audio.

Design & Control

  • User Interface:
    • Seven customizable function buttons for quick access to key features.
    • Lighted control panel for ease of use in dimly lit environments.
  • Mounting Options:
    • VESA 100 x 100mm mounting compatibility.
    • Includes monitor feet and a handle for portability.
    • Optional rackmount brackets available for studio installations.
  • Power Supply:
    • 12 VDC input via 4-pin XLR for field use.

Network & Remote Control

  • Ethernet Ports: Enable remote control and settings management via a network.
  • Parallel Remote Control: Integrates seamlessly with serial and parallel remote systems.
  • Firmware Updates: Upgrade software via the Ethernet connection for enhanced functionality.

Sony LMD-A220 22-inch lightweight Full HD high grade LCD Production monitor

SKU: LMDA220 | UPC: 27242875302
Authorized Dealer Authorized Sony Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
Sony LMD-A220 22-inch lightweight Full HD high grade LCD Production monitor Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul><li>21.5" Diagonal Screen Size</li><li>Supports 1080p60 Video Signals</li><li>1920 x 1080 Native Resolution</li><li>2 x 3G/HD/SD-SDI Inputs</li></ul>

Technical Details

Specifications

Resolution
1920 x 1080
79990f8bdc7743f3b4b4ae0fdb7c4fb8
Sony

Sony LMD-A220 22-inch lightweight Full HD high grade LCD Production monitor

ADD TO CART FOR LOWER PRICE
Call For Price

Brightness

250 cd/m² (nits)

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

24/7

N/A

Dimensions

(WxHxD) Without feet: 20.4 x 13.3 x 2.65" (51.78 x 33.8 x 6.72 cm)

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

1920 x 1080

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

Video Inputs: 2 x BNC (3G/HD/SD-SDI) input (with active loop-through outputs) 1 x HDMI input (HDCP compliant) 1 x BNC (Composite NTSC/PAL) input (with loop-through output) Audio Inputs: 1 x Stereo mini jack (3.5 mm) input Embedded audio via SDI/HDMI

N/A

Outputs

2 x BNC (3G/HD/SD-SDI) output (loop-through) 1 x BNC (Composite NTSC/PAL) output (loop-through) 1 x Stereo mini jack audio monitor output 1 x Stereo mini jack headphone output 1 x 1.0 W monaural speaker (built-in)

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

22"

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

1 x RJ-45 (Ethernet/LAN) for serial remote control and firmware upgrades 1 x RJ-45 (Parallel remote) 8-pin connector 1 x XLR 4-pin (male) DC power input (12 to 17 VDC)

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

100 x 100 mm

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

(WxHxD) Without feet: 20.4 x 13.3 x 2.65" (51.78 x 33.8 x 6.72 cm)

N/A

Aspect Ratio

N/A

N/A

Sensor

N/A

N/A

Resolution

1920 x 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

N/A

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

N/A

N/A

Focal Length

N/A

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

N/A

N/A

Power

N/A

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

N/A

N/A

TAA Compliant

N/A
