Product Summary

  • Full 4K Picture Resolution
  • 3G-SDI Quad-Link
  • Flicker-Free Mode
  • 100 cd/m2

4K OLED unleashed

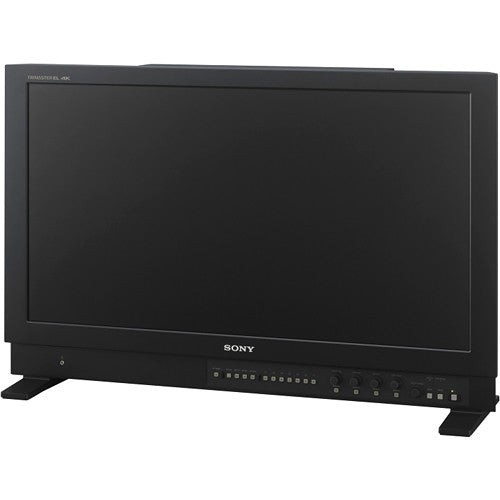

The BVM-X300 30-inch* 4K OLED master monitor is the flagship model in Sony’s professional monitor line-up. This high performance TRIMASTER EL™ OLED monitor offers unparalleled black performance, colour reproduction, quick pixel response and industry-leading wide viewing angles. In addition, the BVM-X300 has an enhanced interface and features to support High Dynamic Range (HDR) live production, as well as a wide colour gamut conforming to DCI-P3 and most of the ITU-R BT.2020 standard*. By unleashing these superb features and qualities, this master monitor provides a powerful tool for a wide range of applications such as colour grading and QC (quality control) in the 4K production workflow.








* 750.2 mm viewable area, measured diagonally.



** The BVM-X300 does not cover the BT.2020 colour space in full.



Full 4K picture resolution



Sony’ s unique OLED panel is equipped with 4K (4096x2160) pixels. This master monitor is ideal for cinema applications and 4K colour grading.



High Dynamic Range



Offers unprecedented image reproduction – black is black, and peak brightness can be reproduced more realistically with colours that are typically saturated in a conventional standard dynamic range. When S-Log3 (Live HDR) is selected, the BVM-X300 reproduces an S-Log3 HDR image with System Gamma, which is optimised for HDR live production. EOTFs of S-Log3, S-Log3 (Live HDR), S-Log2, SMPTE ST2084 and ITU-R BT.2100 (HLG) are supported.



Supports DCI P3 and ITU-R BT.2020 wide colour spaces



The BVM-X300 supports a wide colour gamut conforming to DCI-P3 and most of the ITU-R BT.2020 standard*. Furthermore, it supports S-GAMUT3.cine and S-GAMUT3.








* The BVM-X300 does not cover the BT.2020 colour space in full



Multi-format capability



The BVM-X300 can display formats including 4K, 2K, UHD and HD at various frame rates. 3G/HD-SDI Quad link and Dual link are supported for 4K/UHD and 3G/HD-SDI Single link and Dual link supported for 2K/HD. XYZ signals as well as RGB and Y/CB/CR are supported.



Safe area and aspect markers



The BVM-X300 monitor can display various markers, including an aspect marker, safe area marker, and centre marker.



Input Setting



To improve monitor usability, V2.2 firmware offers a new Input Setting. User preset is put into Input Setting menu and the number of Input Settings is expanded from four to eight.



Shopping channels



Shopping channels require a unique screen layout to differentiate instantly between a product and its commercial data. The monitor allows two flexible area markers to be set anywhere on screen.



Gamut Marker



When Rec.2020 colours out of Rec.709 or DCI-P3 colour gamuts are detected, the monitor indicates this with a zebra pattern over the relevant area of the picture. Gamut Marker is a convenient feature that instantly tells viewers to such colours.



Relative contrast 1/2, 1/3 and 1/4



Relative contrast modes (1/2, 1/3 and 1/4) instantly adjust contrast and allow HDR images to be monitored with higher peak luminance.

Sony BVM-X300 30-inch 4K TRIMASTER EL™ OLED critical reference monitor

SKU: BVMX300
Authorized Dealer Authorized Sony Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
Sony BVM-X300 30-inch 4K TRIMASTER EL™ OLED critical reference monitor Call for Price
Contact Us for Availability Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul><li>Full 4K Picture Resolution</li><li>3G-SDI Quad-Link</li><li>Flicker-Free Mode</li><li>100 cd/m2</li></ul>

Technical Details

Specifications

Resolution
4096 x 2160 pixels
ddfdb203e45d451b9b64c361d3d1f1c7
Sony

Sony BVM-X300 30-inch 4K TRIMASTER EL™ OLED critical reference monitor

ADD TO CART FOR LOWER PRICE
Call For Price

Brightness

100 cd/m2 (100% White signal input)

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

(W x H x D) 742.4 x 479.5 x 205 mm (29 1/4 x 19 x 8 1/8 inches).

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

4K (4096 x 2160) OLED

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

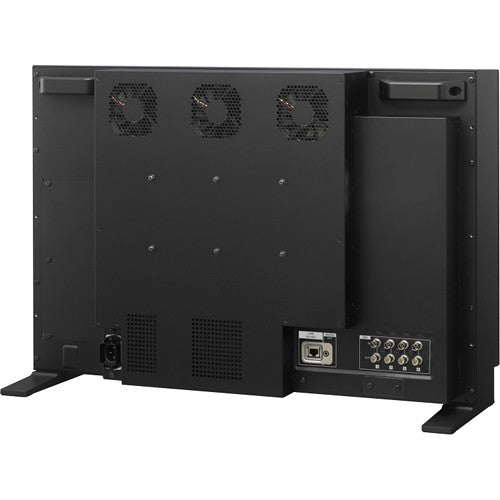

SDI Input: BNC (x4) x 2 sets (supports 3G/HD-SDI, Quad-link for 4K). HDMI Input: HDMI (x1). Serial Remote (LAN): Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1).

N/A

Outputs

SDI Monitor Output: BNC (x4) (switched out). Audio Monitor Output: Stereo mini jack (x1). Headphones Output: Stereo mini jack (x1).

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

30"

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

100 mm x 200 mm

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

(W x H x D) 742.4 x 479.5 x 205 mm (29 1/4 x 19 x 8 1/8 inches).

N/A

Aspect Ratio

N/A

N/A

Sensor

N/A

N/A

Resolution

4096 x 2160 pixels
