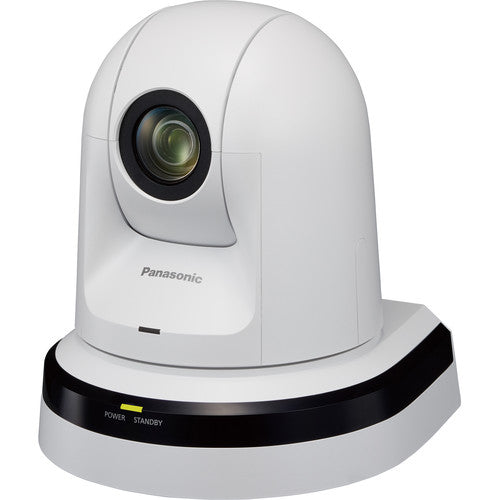

Panasonic AW-HE42W Full HD PTZ Camera with 20x Optical Zoom – White

The Panasonic AW-HE42W Full HD PTZ Camera delivers professional image quality, flexible connectivity, and streamlined remote operation for live production, corporate AV, education, houses of worship, event capture, conferencing, and remote video applications. Featuring a 1/2.3" MOS sensor with 1920 x 1080 Full HD resolution, the AW-HE42W provides detailed HD imaging for demanding professional environments.

A powerful 20x optical zoom lens with extendable iA Zoom provides flexible framing for both wide scenes and distant subjects. Professional 3G-SDI, HDMI, USB, and LAN connectivity supports traditional, computer-based, and IP video workflows, while HDR, PoE+, and optional NDI|HX provide additional flexibility for modern professional PTZ installations.

1/2.3" MOS Sensor

The AW-HE42W features a 1/2.3" MOS sensor designed to deliver detailed Full HD images for professional AV and production environments.

Its imaging system provides the quality required for presentations, lectures, conferences, performances, worship services, events, and other professional video applications.

1920 x 1080 Full HD Resolution

With a 1920 x 1080 Full HD resolution, the AW-HE42W captures detailed video for live production, streaming, conferencing, recording, and presentation applications.

Full HD imaging provides the clarity needed to capture presenters, instructors, performers, speakers, and other subjects across a variety of professional environments.

Powerful 20x Optical Zoom

The AW-HE42W incorporates a 20x optical zoom lens, providing substantial reach for larger rooms and venues.

Operators can transition from wide establishing shots to detailed close-ups without physically repositioning the camera.

Extendable iA Zoom

The camera's 20x optical zoom can be extended using iA Zoom, providing additional magnification when greater reach is required.

This added flexibility is particularly valuable for auditoriums, lecture halls, event spaces, houses of worship, and other larger venues.

High Dynamic Range

Integrated High Dynamic Range (HDR) functionality helps maintain greater image detail when scenes contain significant differences between bright and dark areas.

HDR is particularly useful when capturing subjects positioned against windows, displays, stage lighting, or other bright backgrounds.

Optimized for Backlit Conditions

The AW-HE42W's HDR capability makes it well suited for challenging backlit environments.

By improving image reproduction across areas of contrasting brightness, the camera can provide more balanced video in conference rooms, classrooms, worship spaces, and event venues.

Professional 3G-SDI Output

Integrated 3G-SDI output allows the AW-HE42W to connect with compatible professional production equipment.

This provides a dependable video interface for professional switchers, recorders, monitors, routers, and other SDI-based AV infrastructure.

HDMI Video Output

The AW-HE42W also provides HDMI video output, allowing straightforward integration with compatible displays, switchers, capture devices, recorders, and presentation systems.

USB Video Connectivity

Integrated USB connectivity expands the camera's compatibility with computer-based video applications.

USB provides another option for conferencing, streaming, recording, and software-based video workflows.

LAN & IP Video

The AW-HE42W supports video over LAN, providing connectivity for network-based production and professional AV environments.

IP connectivity makes the camera suitable for centralized video systems where remote access and network-based workflows are important.

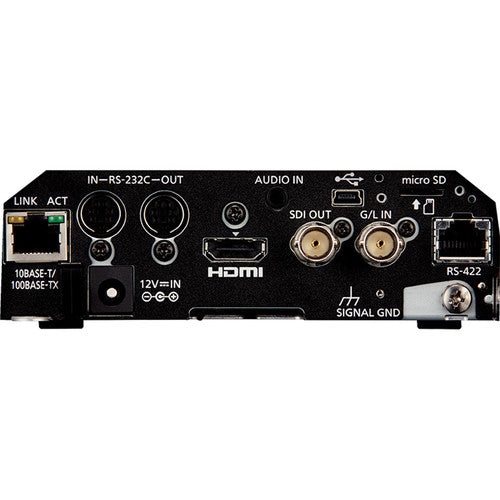

Multiple Video Interfaces

With 3G-SDI, HDMI, USB, and LAN connectivity, the AW-HE42W provides extensive integration flexibility.

Organizations can incorporate the camera into conventional SDI and HDMI systems, computer-based applications, or modern IP video environments.

PoE+ Support

The AW-HE42W supports PoE+ (Power over Ethernet Plus), allowing compatible network infrastructure to supply camera power through the LAN connection.

PoE+ can help lower installation costs by reducing the need for dedicated power cabling at the camera location.

Single-Cable Solution

Support for PoE+ and network-based connectivity provides a streamlined approach to remote video and audio capture.

Using network infrastructure for multiple camera functions can simplify installation, particularly when cameras are mounted on ceilings, walls, or other difficult-to-access locations.

Optional NDI|HX

The AW-HE42W offers an NDI|HX option for compatible network-based production environments.

NDI|HX provides additional flexibility for organizations transitioning toward IP-based video workflows and centralized production systems.

Remote Production Ready

The combination of professional video outputs, LAN connectivity, powerful zoom, and PoE+ makes the AW-HE42W an excellent fit for remote-production environments.

Network-based operation can reduce the need for personnel at the camera location while providing greater flexibility for centralized video production.

Designed for Live Production

Professional 3G-SDI and IP video outputs provide the dependable connectivity required for live-production workflows.

The AW-HE42W can serve as part of a professional multi-camera PTZ system for presentations, performances, events, worship services, lectures, and other productions.

Corporate & Education Applications

With Full HD imaging, powerful zoom, and multiple connectivity options, the AW-HE42W is well suited for corporate and educational installations.

The camera can capture presenters, instructors, students, presentation areas, and wider room views from a remotely positioned camera location.

Professional White Finish

The AW-HE42W features a white finish, providing a clean and discreet appearance for classrooms, conference facilities, houses of worship, lecture halls, and other architecturally sensitive installations.

Panasonic AW-HE42W Full-HD Professional PTZ Camera with 3G-SDI (White)

SKU: AWHE42W
Authorized Dealer Authorized Panasonic Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$3,895.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Panasonic AW-HE42W Full-HD Professional PTZ Camera with 3G-SDI (White) $3,895.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Full HD 1080p Video
  • 20x Optical Zoom
  • 3G-SDI HDMI USB LAN
  • Optional NDI|HX IP Workflow
  • PoE+ Single Cable Installation

Best For

  • 🎓 Education
  • 🏢 Corporate Collaboration
  • ⛪ House of Worship
  • 🏛️ Government
Complete Your Solution

Controllers

Panasonic AW-RP60GJ5 Compact Remote PTZ Camera Controller

Panasonic

Panasonic AW-RP60GJ5 Compact Remote PTZ Camera Controller
$2,942.00
16083
Panasonic

Panasonic AW-HE42W Full-HD Professional PTZ Camera with 3G-SDI (White)

$3,895.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/2.3" MOS Sensor

N/A

Resolution

4K

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

Auto, 0 dB to 48 dB (3 dB step)

N/A

Shutter Speed Range

1/60 to 1/2000

N/A

Exposure Control

N/A

N/A

White Balance

ATW, AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K)

N/A

Image Stabilization

Optical /4-axis hybrid image stabilizer for stable

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

USB Video Class Ver1.0, Motion JPEG,HDMI, SDI, USB and LAN cable

N/A

Audio Input

N/A

N/A

Audio

AUDIO OUTPUTUSB Audio Class Ver1.0

N/A

Camera Control

IP control ,CONTROL IN RS422A (RJ-45)

N/A

Focal Length

F1.8 to F3.6

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

±175°

N/A

Tilt Angle

-30°to 90°

N/A

Pan Speed

Maximum speed during preset: 300°/s

N/A

Tilt Speed

Maximum speed during preset: 300°/s

N/A

Presets

N/A

N/A

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

N/A

Power

DC 12 V (Supplied AC adaptor) DC 42 V to 57 V (PoE+ power supply)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

0.7 lx (50 IRE, F1.8, 48 dB,1/60 without accumulation)

N/A

Optical Zoom

3x

N/A
