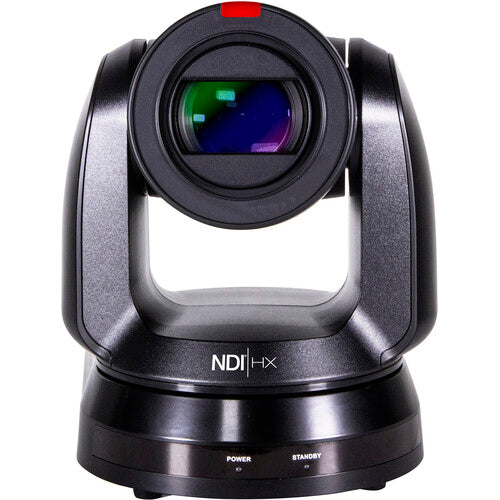

• Marshall Electronics CV730-NDIB UHD 4K Broadcast PTZ Camera with NDI HX front

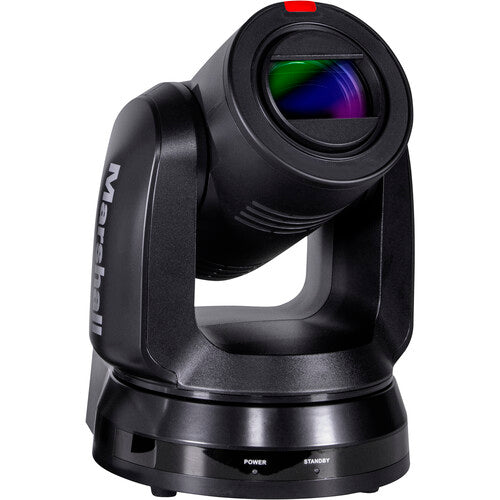

  • Marshall Electronics CV730-BK UHD 4K60 IP PTZ Camera with 30x Optical Zoom (Black)

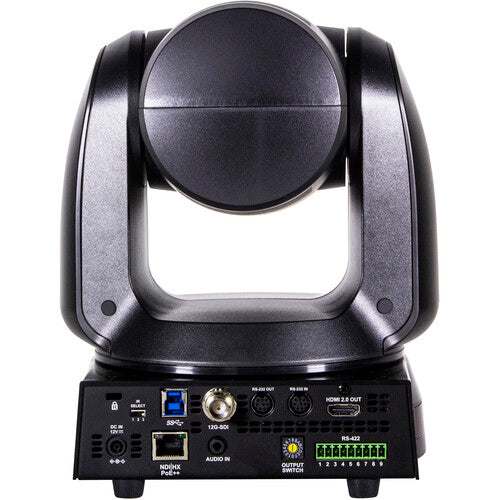

  • Marshall Electronics CV730-NDI UHD 4K Broadcast PTZ Camera with NDI HX (Black) input output

Marshall Electronics CV730-NDIB UHD 4K Broadcast PTZ Camera with NDI|HX

SKU: CV730NDIB  |  UPC: 801813226539
$3,499.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Video Resolution up to UHD 4K60\n 8.5MP 1/1.8" Sony Sensor\n 6.5 to 202mm Lens, 30x Optical Zoom\n 12G-SDI, HDMI 2.0, and NDI|HX Outputs\n 65° AoV, PoE, Tally Support\n RS-232 & RS-422 Serial Control\n 340° Pan, 120° Tilt\n VISCA and Pelco-D Protocol Support\n IR Remote Included\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

  • Video Resolution up to UHD 4K60

  • 8.5MP 1/1.8" Sony Sensor

  • 6.5 to 202mm Lens, 30x Optical Zoom

  • 12G-SDI, HDMI 2.0, and NDI|HX Outputs

  • 65° AoV, PoE, Tally Support

  • RS-232 & RS-422 Serial Control

  • 340° Pan, 120° Tilt

  • VISCA and Pelco-D Protocol Support

  • IR Remote Included



  • 8.5 Megapixel UHD Sensor (1/1.8")

  • 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV

  • 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)

  • 12G/6G/3G-SDI, HDMI2.0, USB3.0 and NDI®|HX2. simultaneous outputs

  • 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p

  • 59.94, 50, 29.97, 25fps options up to 4K60 and HD60

  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)

  • 12V Power Supply included and PoE++ (IEEE802.3bt)


Marshall CV730-NDIB highlights a 30x optical zoom block and convenient multiple 12GSDI and HDMI outputs with NDI®|HX2. and amazingly clear UHD images up to 3840x2160p at 60fps. NDI®|HX2. provides low latency, excellent quality, frame-accurate video, and audio in real time to IP workflows. NDI® Tools opens the capability to incorporate more video devices and applications into your production workflow. CV730-NDIB is the first UHD60 PTZ camera with NDI®|HX2..


Best of Class


Featuring 12GSDI, HDMI2.0, and NDI®|HX2. from a professional level 8.5MP 1/1.8" UHD sensor and smooth synchronous movements. CV730-NDIB is the first to deliver UHD60 performance with NDI®|HX2. ease-of-use delivering crystal-clear images up to 3840x2160p at 60fps. NDI®|HX2. provides Video, Audio, Control, Tally and Power over one Ethernet cable for remote broadcast-style adjust & match settings control.

CV730 - Flexible Zome Range with precision of 30X optical zoom


Flexible Zoom Range


Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances.




CV730 - Easy one-cable to camera setup


Ease of Use


Install one-cable to camera with NDI®|HX2. for all functions, simple connect to any Ethernet port - THAT'S IT - or use Ethernet for PoE++/Preview and other outputs (12GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.




CV730 is a professional broadcast camera with cutting edge production capabilities


Professional Broadcast Performance


Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners. CV730-NDIB constitutes the World's first NDI®|HX2. PTZ camera with Ultra-HD video quality at 60fps.


Is This Right For You?


Recommendation


Marshall Electronics CV730-NDIB UHD 4K Broadcast PTZ Camera with NDI HX front
Marshall Electronics

Marshall Electronics CV730-NDIB UHD 4K Broadcast PTZ Camera with NDI|HX

$3,499.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1-Chip 1/1.8" CMOS Sensor

N/A

Resolution

4K

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

1/10000 to 1/1 sec

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

Image Flip

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

Formats: SDI, HDMI, RJ45: 3840 x 2160p at 25, 29.97, 50, 59.94 fps 1920 x 1080p at 25, 29.97, 50, 59.94 fps 1280 x 720p at 25, 59.94 fps

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

N/A

N/A

Focal Length

N/A

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

340°

N/A

Tilt Angle

120°

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

9 via IR

N/A

Operating Temperature

N/A

N/A

Power

PoE Support:PoE 802.3af, Power Connectors : 1 x Barrel / Coaxial (12 VDC)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

1 Lux

N/A

Optical Zoom

30x

N/A

TAA Compliant

N/A
