Marshall Electronics CV610-U3-V2 Compact PTZ USB/HDMI Camera (Black)

SKU: CV610U3V2  |  UPC: 801813187595
$899.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n 1/2.8" 2MP CMOS Sensor\n 10x Optical/12x Digital Zoom\n Up to 1920 x 1080p60 Video Output\n 128 Preset Positions\n Concurrent USB 3.1/HDMI Output\n 350° Pan, 120° Tilt\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

  • 1/2.8" 2MP CMOS Sensor

  • 10x Optical/12x Digital Zoom

  • Up to 1920 x 1080p60 Video Output

  • 128 Preset Positions

  • Concurrent USB 3.1/HDMI Output

  • 350° Pan, 120° Tilt



  • You can store up to six presets of camera direction and camera parameters into the camera, up to six presets on the remote controller, or 128 presets via protocol programming

  • Full HD up to 1080p60 via USB and HDMI

  • Automatic and manual white balance for complex lighting environments

  • 350° pan range

  • 120° tilt range

  • Breakout cable with HDMI, RS-232, RS-422/485, CVBS, and audio is included

  • The camera supports USB 3.1 Gen 1/2.0 video output and control with UVC1.5 compliant software, as well as UAC2.0, VISCA, and Pelco P/D protocols

  • Virtual COM port built in for camera movement control capability

  • Built-in microphone

  • USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s; USB 3.1 Gen 1 and USB 3.0 are synonymous

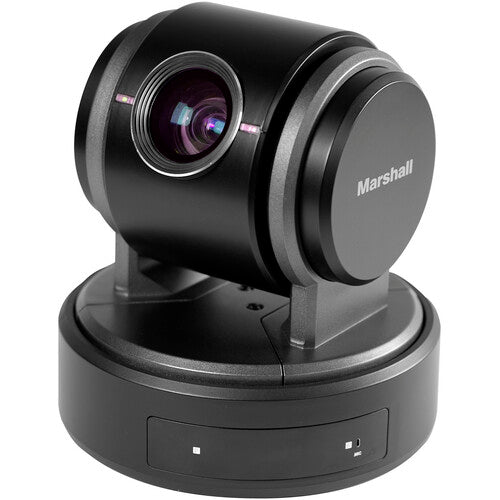

The black Marshall Electronics CV610-U3-V2 Compact PTZ USB/HDMI Camera is well suited for use as a remotely controlled video conference camera in various environments such as corporate and government meeting rooms, education, houses of worship, live events, courtrooms, healthcare, and broadcast media.

The CV610-U3-V2 features a wide-angle 10x optical zoom lens with 12x digital zoom, and it incorporates a 1/2.8" 2MP CMOS sensor for clear HD output up to 1080p60. The camera utilizes a DC motor servo controller to achieve high speed and quiet positioning, and you can program up to 128 preset positions which can also incorporate preset exposure, white balance, and picture style. It features 350° of pan and 120° of tilt.

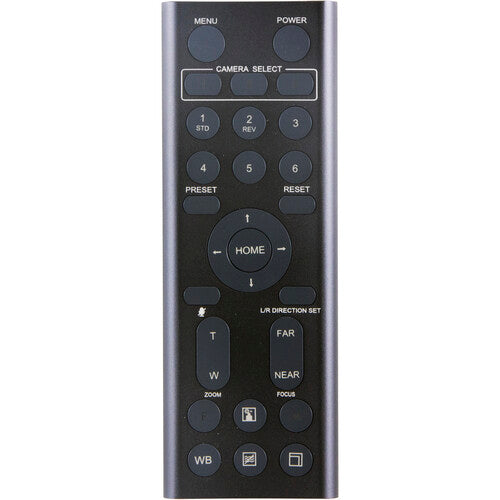

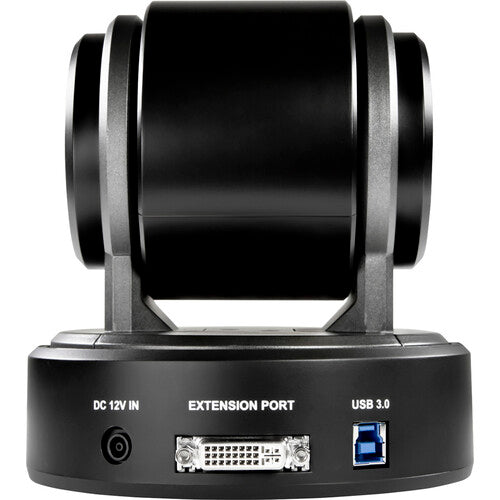

The camera simultaneously outputs via the built-in USB 3.1 Gen 1 port and via the HDMI port by using the included breakout cable that connects to the built-in extension port; the USB port is also backward compatible with USB 2.0. Camera control is achieved via the USB port for use with a Windows or Mac computer, with the included IR remote control, or you can use the breakout cable which provides an RS-232 connector and an RS-422/RS-485 connector to interface with the camera using UVC1.5, UAC2.0, VISCA, or Pelco P/D protocols. The breakout cable also incorporates a 3.5mm audio line input jack.

Is This Right For You?


Recommendation


Marshall Electronics CV610-U3-V2 Compact PTZ USB HDMI Camera (Black)
Marshall Electronics

Marshall Electronics CV610-U3-V2 Compact PTZ USB/HDMI Camera (Black)

$899.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

Supported Control Protocols

IR
RS-232
RS-422
RS-485
VISCA

Video Output Connectors

1 x HDMI Type A (HDMI 1.0) Female
1 x USB 3.0 Type-B (USB Video) Female

Built-In Microphone Type

Mono





N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1-Chip 1/2.8" CMOS Sensor, 2.0 MP

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

50 dB

N/A

Gain

-3 to 28 dB

N/A

Shutter Speed Range

1/1 to 1/10,000 sec

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

Image Flip, Mirror (Vertical)

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

Formats :HDMI, USB: 1920 x 1080p at 25, 30, 50, 60 fps 1280 x 720p at 25, 30, 50, 60 fps USB: 1024 x 768p at 25, 30, 50, 60 fps 960 x 540p at 25, 30, 50, 60 fps 850 x 480p at 25, 30, 50, 60 fps 800 x 600p at 25, 30, 50, 60 fps 768 x 448p at 25, 30, 50, 60 fps 720 x 576p at 25, 30, 50, 60 fps 720 x 540p at 25, 30, 50, 60 fps 720 x 480p at 25, 30, 50, 60 fps 640 x 480p at 25, 30, 50, 60 fps 640 x 360p at 25, 30, 50, 60 fps 352 x 288p at 25, 30, 50, 60 fps

N/A

Audio Input

N/A

N/A

Audio

Audio I/O :1 x 1/8" / 3.5 mm Stereo Mic Level Input

N/A

Camera Control

Focus Control : Autofocus, Manual Focus

N/A

Focal Length

3.8 to 38mm

N/A

Minimum Object Distance

Field of View: Horizontal: 6.4 to 62.5° , Maximum Aperture: f/1.8 to 3.4

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

350°

N/A

Tilt Speed

120°

N/A

Presets

128 via IR, RS-232

N/A

Operating Temperature

N/A

N/A

Power

Power Connectors : 1 x JEITA (12 VDC)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

10x

N/A

TAA Compliant

N/A
