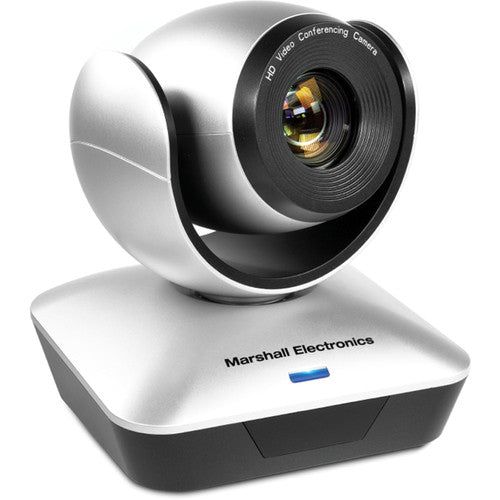

• Marshall Electronics CV610-U2 Full HD USB 2.0 PTZ Camera front

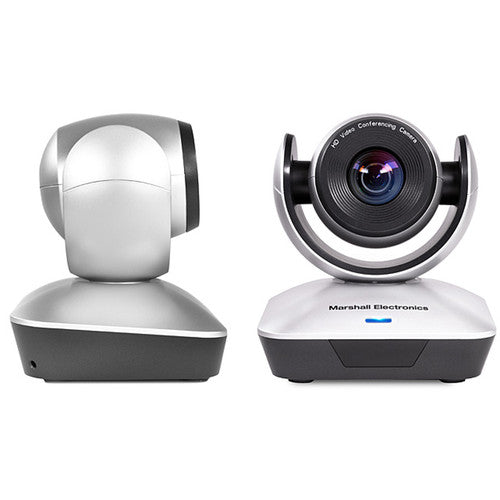

  • Marshall Electronics CV610-U2 Full HD USB 2.0 PTZ Camera front side view

Marshall Electronics CV610-U2 Full HD USB 2.0 PTZ Camera

SKU: CV610U2  |  UPC: 801813187137
$799.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n 5MP 1/2.8" Sensor\n USB 2.0 with UVC1.5 Protocol control\n 1080p, 720p, and 640 x 480p\n 30/15/8 fps\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

  • 5MP 1/2.8" Sensor

  • USB 2.0 with UVC1.5 Protocol control

  • 1080p, 720p, and 640 x 480p

  • 30/15/8 fps


The silver CV610-U2 Full HD USB 2.0 PTZ Camera from Marshall Electronics incorporates a 5MP 1/2.8" image sensor with a 10x optical zoom. It is suitable for small teleconference spaces, and outputs video via USB 2.0. The camera supports UVC1.5, which allows you to control the camera via the USB2.0 port as well. You can also control the camera using the RS-232 port.

Outputting 1080p, 720p, and 480p, the camera captures video at 30, 15, or 8 fps, and the 10x optical and 12x digital zoom provides up to 120x zoom capability. The camera can store up to 128 preset positions, and it is compatible with common software platforms for Teleconference, Unified Communications (UC), and Huddle Spaces.



    • 1/2.8" sensor captures clear images

    • Full HD image resolution at 30/15/8 fps

    • OSD Menu

    • 3D Noise Reduction

    • Electronic Shutter

    • Wide Dynamic Range

    • IR Transfer (IR Pass)

    • 10x optical zoom (4.7 to 47mm lens) with 12x digital

    • 10 presets via IR remote setting, 128 via VISCA control, preset accuracy: 0.1°

    • Mountable via table, wall, ceiling mounts included with flippable images

    • Compatible with integrated video conferencing systems

    • Quiet PTZ motor allows for quality transitions



Is This Right For You?


Recommendation


Marshall Electronics CV610-U2 Full HD USB 2.0 PTZ Camera front
Marshall Electronics

Marshall Electronics CV610-U2 Full HD USB 2.0 PTZ Camera

$799.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

Interface

USB: USB 2.0 type-B
RS-232: 8-pin Mini-Din
Power: 12 VDC coaxial

Supported Video Resolutions

1080p
720p
640 x 480p

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1-Chip 1/2.8" CMOS Sensor

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

-

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

Manual

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

-

N/A

Sync

N/A

N/A

Output

USB: USB 2.0 type-B

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

RS-232: 8-pin Mini-Din

N/A

Focal Length

f/1.8 to f/14

N/A

Minimum Object Distance

Lens 4.7 to 4.7mm, Aperture f/1.8 to f/14

N/A

Pan Angle

340°

N/A

Tilt Angle

120°

N/A

Pan Speed

120

N/A

Tilt Speed

80

N/A

Presets

Up to 128 preset location saves, adjustable Pan-Tilt speeds between presets

N/A

Operating Temperature

N/A

N/A

Power

DC 12 V

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

10x

N/A

TAA Compliant

N/A
