SKU: CVMICROJYSTK  |  UPC: 801813227574

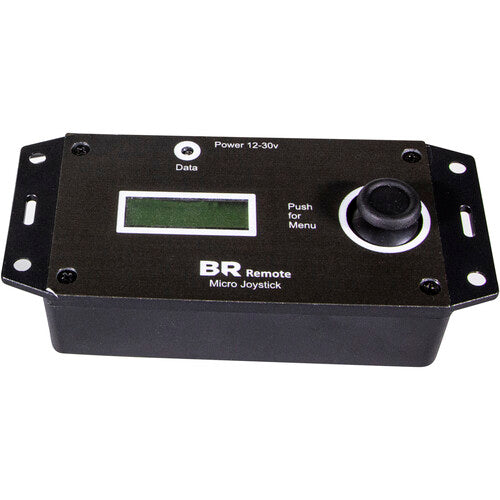

Marshall Electronics CV-MICRO-JYSTK Mini Joystick Controller

$299.00
Free Shipping At Checkout!

BACK TO SCHOOL SALE- additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • Control the CV-PT-HEAD Pan/Tilt Head
  • Pan/Tilt/Zoom/Focus Functions
  • Compact Design, Menu Navigation
  • Can Accept RCP Data and Power Camera
  • Stores up to 8 Preset Positions
  • Built-In Camera Control Protocols
  • Compatible with BR Cameras and Heads

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form

  • Control the CV-PT-HEAD Pan/Tilt Head

  • Pan/Tilt/Zoom/Focus Functions

  • Compact Design, Menu Navigation

  • Can Accept RCP Data and Power Camera

  • Stores up to 8 Preset Positions

  • Built-In Camera Control Protocols

  • Compatible with BR Cameras and Heads


Control your pan/tilt head and BR camera functions remotely with this Mini Joystick Controller from Marshall Electronics. The compact controller features a thumb-style joystick that can control the pan, tilt, zoom, and focus features of your CV-PT-HEAD, BR head, or BR camera using RS-485 serial connectivity.

The controller is powered using a DC power input, and it features a 4-pin XLR output that connects to the pan/tilt head. Using a separately available cable extension, RS-485 serial signals can travel up to 3000' over XLR. It can also receive RCP data to control and power your BR camera mounted on the pan/tilt head. Using the LCD screen and menu system, you can store up to eight preset positions within the controller, and you can also set pan/tilt head configuration as well as camera settings such as iris, gain, shutter, focus, and more. The unit features mounting holes on the sides so it can be mounted on a rack.


Compatibility



Marshall CV-PT-HEAD motorized pan/tilt head
Marshall BR series heads and cameras






Joystick Functions



Pan, Tilt, Zoom, Focus, and Menu navigation






Menu Functions



Pan/Tilt Speed and Direction
Head Select and Re-Assign Ident
Ramp Up/Down
Store and GoTo Preset positions (8)
White Balance, Red Gain, and Blue Gain
Iris, Gain, Shutter
Auto Focus and Auto Iris
Master Pedestal, Gamma, Detail
Dynamic Range, Noise Reduction
Rec Run/Stop
Camera Protocol Select
