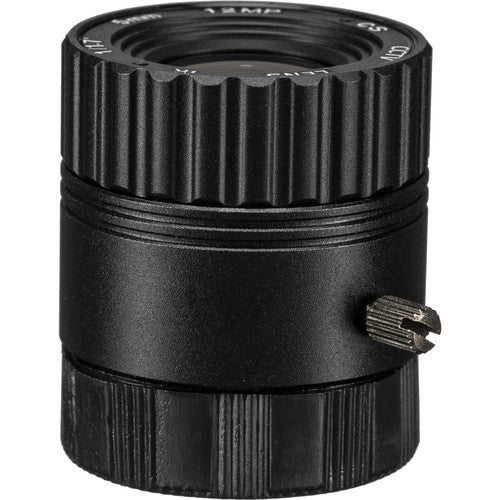

Marshall Electronics CS-5.0-12MP CS-Mount 5mm Fixed Lens

SKU: CS5012MP  |  UPC: 801813193008
$84.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Compatible with 12MP Cameras\n CS Mount\n 5mm Focal Length\n Compatible with 1/1.7" Sensors\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

Marshall CS-Mount 5mm Fixed Lens for 12MP Cameras

High-Resolution Optics for CS-Mount Cameras

The Marshall CS-Mount 5mm Fixed Lens is designed for 12MP cameras equipped with a 1/1.7" image sensor, delivering sharp, detailed imagery for professional video and imaging applications.


Wide 87° Field of View

With a 5mm focal length, this lens provides an 87° horizontal field of view, offering broad scene coverage while maintaining accurate perspective and image clarity.


IR-Corrected Performance

The lens is IR corrected, ensuring consistent focus and image accuracy in both visible and infrared lighting environments, making it suitable for day/night operation.


Fixed Iris, Stable Imaging

Featuring fixed iris operation, the lens delivers reliable performance in controlled lighting conditions with minimal adjustment requirements.

Is This Right For You?


Recommendation


Marshall Electronics CS-5.0-12MP CS-Mount 5mm Fixed Lens
Marshall Electronics

Marshall Electronics CS-5.0-12MP CS-Mount 5mm Fixed Lens

$84.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>Lens Mount</strong> CS
<strong>Sensor Compatibility</strong> 1/1.7", 1/2.5", 1/3"
<strong>Focal Length</strong> 5mm
<strong>Back Focal Length</strong> 6.39mm
<strong>Aperture</strong> f/2

<strong>Angle</strong> <strong>of View
</strong> 1/1.7" Sensor
Diagonal: 114.4°
Horizontal: 87°
Vertical: 61.8°
1/2.5" Sensor
Diagonal: 87°
Horizontal: 68.6°
Vertical: 49.7°
1/3" Sensor
Diagonal: 70.9°
Horizontal: 55.5°
Vertical: 41.2°

<strong>Minimum Object Distance</strong> 0.98' / 0.3 m
<strong>Focus Type</strong> Fixed Focus
<strong>Iris Type</strong> Fixed
<strong>Distortion</strong> -43.7%
<strong>IR Corrected</strong> Yes
<strong>Operating Temperature</strong> -4 to 140°F / -20 to 60°C
<strong>Flange Back Length</strong> 0.49" / 12.5 mm
<strong>Dimensions</strong> (ø x L) 1.1 x 1.23" / 28 x 31.3 mm
<strong>Weight</strong> 1.44 oz / 40.9 g
