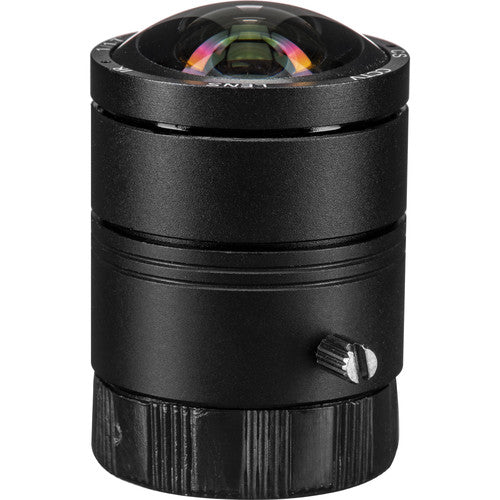

Marshall Electronics CS-3.2-12MP CS-Mount 3.2mm Fixed Lens

SKU: CS3212MP  |  UPC: 801813192995
$93.99
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Compatible with 12MP Cameras\n CS Mount\n 3.2mm Focal Length\n Compatible with 1/1.7" Sensors\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

Marshall CS-Mount 3.2mm Fixed Lens for 12MP Cameras

Ultra-Wide Coverage for High-Resolution Imaging

The Marshall CS-Mount 3.2mm Fixed Lens is engineered for 12MP cameras equipped with a 1/1.7" image sensor, delivering sharp, high-resolution imagery with an expansive field of view.


131° Ultra-Wide Field of View

With a 3.2mm focal length, this lens provides an impressive 131° horizontal field of view, making it ideal for applications requiring maximum scene coverage, such as surveillance, machine vision, and wide-area monitoring.


IR-Corrected Optics

The lens is IR corrected, ensuring accurate focus and consistent image quality in both visible and infrared lighting environments.


Fixed Iris, Reliable Performance

Featuring a fixed f/2 aperture, the lens delivers stable exposure performance and simplified setup for fixed-lighting environments.

Is This Right For You?


Recommendation


Marshall Electronics CS-3.2-12MP CS-Mount 3.2mm Fixed Lens
Marshall Electronics

Marshall Electronics CS-3.2-12MP CS-Mount 3.2mm Fixed Lens

$93.99

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>Lens Mount</strong> CS
<strong>Sensor Compatibility</strong> 1/1.7", 1/1.8", 1/2.3"
<strong>Focal Length</strong> 3.2mm
<strong>Back Focal Length</strong> 6mm
<strong>Aperture</strong> f/2

<strong>Angle of View</strong>
1/1.7" Sensor
Diagonal: 160°
Horizontal: 131°
Vertical: 99°
1/1.8" Sensor
Diagonal: 153.6°
Horizontal: 129°
Vertical: 88°
1/2.3" Sensor
Diagonal: 136°
Horizontal: 113.5°
Vertical: 83°

<strong>Minimum Object Distance</strong> 0.98' / 0.3 m
<strong>Focus Type</strong> Fixed Focus
<strong>Iris Type</strong> Fixed
<strong>Distortion</strong> -64%
<strong>IR Corrected</strong> Yes
<strong>Operating Temperature</strong> -40 to 221°F / -40 to 105°C
<strong>Dimensions</strong> (ø x L) 1.1 x 1.53" / 28 x 38.9 mm
<strong>Weight</strong> 1.87 oz / 53 g
