Blackmagic Design MultiView 4 HD HDL-MULTIP3G/04HD

SKU: HDLMULTIP3G04HD  |  UPC: 9338716005424
$185.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n 4 x SD/HD/3G-SDI Inputs\n 1 x SDI & 1 x HDMI Outputs\n Automatic Signal Detection\n SDI Re-Clocking on Output\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • 4 x SD/HD/3G-SDI Inputs

  • 1 x SDI & 1 x HDMI Outputs

  • Automatic Signal Detection

  • SDI Re-Clocking on Output


Blackmagic MultiView 4 HD is a multiviewer that lets you simultaneously monitor 4 completely independent SDI video sources on a single display! You can monitor any combination of SD and HD formats and frame rates, all at the same time. Each view can display overlays with information such as custom labels, audio meters and more. MultiView 4 HD has both SDI and HDMI outputs for monitoring on professional SDI displays, projectors or even big screen televisions!




Blackmagic MultiView 4 HD

Is This Right For You?


Recommendation

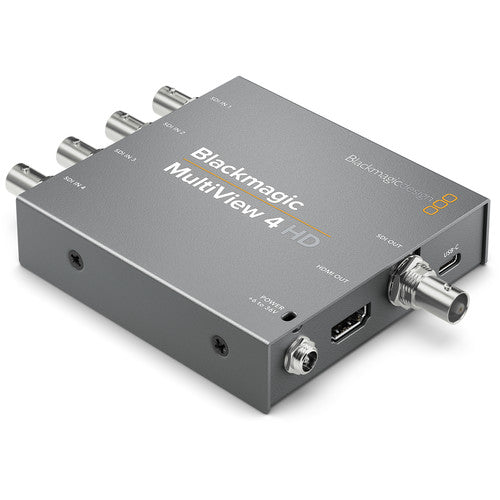

Blackmagic Design MultiView 4 HD HDL-MULTIP3G 04HD front
Black Magic Design

Blackmagic Design MultiView 4 HD HDL-MULTIP3G/04HD

$185.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>Input Connectors:</strong>

4 x BNC (3G-SDI)
<strong>Output Connectors:</strong>

1 x BNC (3G-SDI)
1 x HDMI

<strong>Video Standard Compliance:</strong>

SMPTE 259M/292M/296M/310M/425M-B
ITU -R BT.601/BT.656

<strong>Video Format:</strong>

SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 2K
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps
<strong>Max Sample Rate/Resolution :</strong>

48 kHz / 24-Bit

<strong>OS Compatibility:</strong>

macOS 10.12
macOS 10.13
Windows 8.1
Windows 10

<strong>Power Consumption:</strong> 6 to 36 VDC (5.5 W)

<strong>Operating Temperature:</strong> 32 to 104°F / 0 to 40°C
<strong>Storage Temperature:</strong> -4 to 113°F / -20 to 45°C
<strong>Operating Humidity:</strong> 0 to 90%

<strong>Dimensions:</strong> 4.8 x 3.1 x 1.2" / 123.0 x 79.5 x 29.5 mm
<strong>Weight:</strong> 8.53 oz / 0.24 kg
