Product Summary


  • Single Link SD/HD/3G/6G-SDI Input

  • 8x Single Link SD/HD/3G/6G-SDI Outputs

  • Re-Clocked Outputs

  • Supports SD, HD, UHD 4K & DCI 4K Signals




  • 4:2:2 and 4:4:4 sampling and color precision

  • 24-bit, 48 kHz audio sampling


The Mini Converter SDI Distribution 4K from Blackmagic Design allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously. It automatically detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI input video format. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 6G-SDI technology, the Mini Converter supports resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 24 fps, as well as SD, HD, and 3G-SDI signals. It supports all SDI-related transmission features, including embedded audio, ancillary data, and even handles ASI signals - asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.

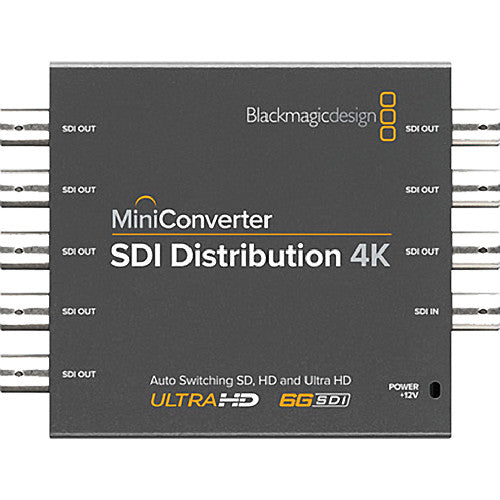

Blackmagic Design Mini Converter - SDI Distribution CONVMSDIDA4K

SKU: CONVMSDIDA4K | UPC: 9338716002621
Authorized Dealer Authorized Black Magic Design Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$295.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Blackmagic Design Mini Converter - SDI Distribution CONVMSDIDA4K $295.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_22p_DbxsLr4MV-m3EOA_5T">\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Single Link SD/HD/3G/6G-SDI Input</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">8x Single Link SD/HD/3G/6G-SDI Outputs</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Re-Clocked Outputs</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Supports SD, HD, UHD 4K &amp; DCI 4K Signals</li>\n</ul>
Blackmagic Design Mini Converter - SDI Distribution CONVMSDIDA4K
Black Magic Design

Blackmagic Design Mini Converter - SDI Distribution CONVMSDIDA4K

$295.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>Input Connectors :</strong>
1 x BNC (6G-SDI)

<strong>Output Connectors :</strong>
8 x BNC (6G-SDI)

<strong>Other I/O</strong> :
1 x USB Type-A Firmware

<strong>Video Standard Compliance:</strong>
SMPTE 259M/292M/296M/372M/425M

<strong>Re-Clocking:</strong>
Yes

<strong>Video Format:</strong>
SDI (4:2:2 RGB, YUV)
NTSC: 23.98/29.97 fps
PAL: 25 fps
720p: 59.94/60 fps
1080i: 50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2KPsF: 23.98/24/25 fps
DCI 2K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30 fps
DCI 4K: 24 fps

<strong>Max Sample Rate/Resolution</strong> :
48 kHz / 24-Bit

<strong>Power Consumption:</strong> Power Supply: 12 to 30 VDC (4.8 W)

<strong>Operating Temperature:</strong> 32 to 104°F / 0 to 40°C
<strong>Storage Temperature:</strong> -4 to 113°F / -20 to 45°C
<strong>Operating Humidity:</strong> 0 to 90%

<strong>Dimensions:</strong> 4.8 x 3.6 x 0.9" / 12.2 x 9.2 x 2.3 cm
<strong>Weight:</strong> 11.88 oz / 336.79 g
