Product Summary


  • Single, Dual, and Quad Link SDI Input

  • Single Link 6G-SDI

  • Dual Link 3G-SDI & Quad Link HD-SDI

  • 4K HDMI Output








  • Accepts single link 6G-SDI, dual link 3G-SDI, or quad link HD-SDI

  • 4K HDMI output

  • SD, HD, UHD 4K (3840x2160), and DCI 4K (4096x2160) resolutions

  • Automatic input signal detection

  • 4:2:2 and 4:4:4 sampling and color precision

  • 24-bit, 48 kHz audio sampling

  • Dip switch and software control

  • USB 2.0 port for firmware updates

  • 12V power supply with international socket adapters

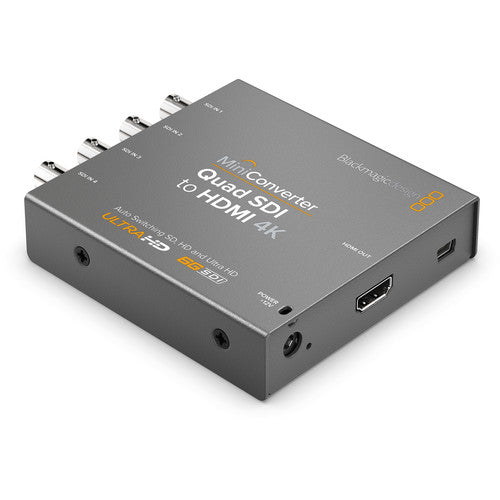

The Mini Converter Quad SDI to HDMI 4K from Blackmagic Design allows you to convert single link 6G-SDI, dual link 3G-SDI, or quad link HD-SDI to a single 4K HDMI output. This allows you to use professional SDI equipment that outputs Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) video signals with projectors and televisions that support 4K over a single HDMI cable. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps, as well as NTSC/PAL SD and HD formats. The Mini Converter features four BNC connectors: Input 1 accepts single link SD/HD/3G/6G-SDI signals, Input 2 adds support for dual link HD/3G-SDI, and Input 3 and 4 add the remaining channels required for quad link HD-SDI signals. Input 1 automatically detects between SD, HD, 3G, and 6G-SDI signals. When inputting UHD sources and the HDMI output detects an HDTV or HD monitor, the output signal is automatically down-converted from UHD to HD.

The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.





Blackmagic Design Mini Converter - Quad SDI to HDMI 4K CONVMBSQUH4K2

SKU: CONVMBSQUH4K2 | UPC: 9338716002133
Authorized Dealer Authorized Black Magic Design Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$495.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Blackmagic Design Mini Converter - Quad SDI to HDMI 4K CONVMBSQUH4K2 $495.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_22p_DbxsLr4MV-m3EOA_5T">\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Single, Dual, and Quad Link SDI Input</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Single Link 6G-SDI</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Dual Link 3G-SDI &amp; Quad Link HD-SDI</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">4K HDMI Output</li>\n</ul>

Technical Details

Specifications

Output
1 x HDMI, type A
