Blackmagic Design ATEM Talkback Converter 4K SWRCONVRCKT4K8

SKU: SWRCONVRCKT4K8  |  UPC: 9338716003413
$2,495.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Communicate with up to 8 Cameras\n 8 x SDI I/O\n Camera Talkback via XLR, Mini\n Fits in 1 Standard Rack Unit\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Communicate with up to 8 Cameras

  • 8 x SDI I/O

  • Camera Talkback via XLR, Mini

  • Fits in 1 Standard Rack Unit

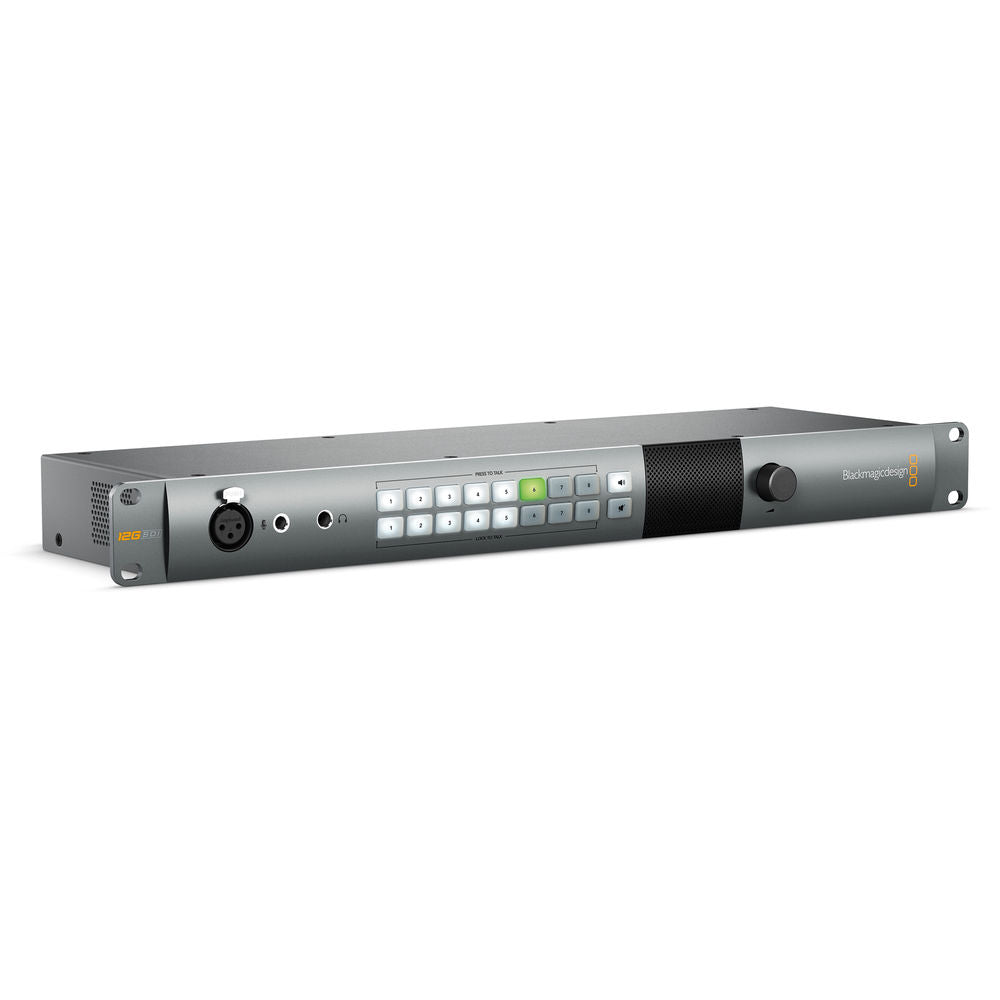

ATEM Talkback Converter 4K handles up to 8 cameras for SDI talkback using embedded audio channels 15 and 16 as used on the Blackmagic Studio Cameras and ATEM Camera Converter. Supports 12G-SDI for all SD, HD and Ultra HD formats up to 2160p60 and provides BNC connections to each camera, and an optical fiber socket for adding an optical fiber SFP module for extending camera distances when required. Includes push to talk buttons, support for tough and common aviation headsets, loop through for more than 8 camera support, built in speaker, front panel mic input and much more.




ATEM Talkback Converter 4K

Is This Right For You?


Recommendation

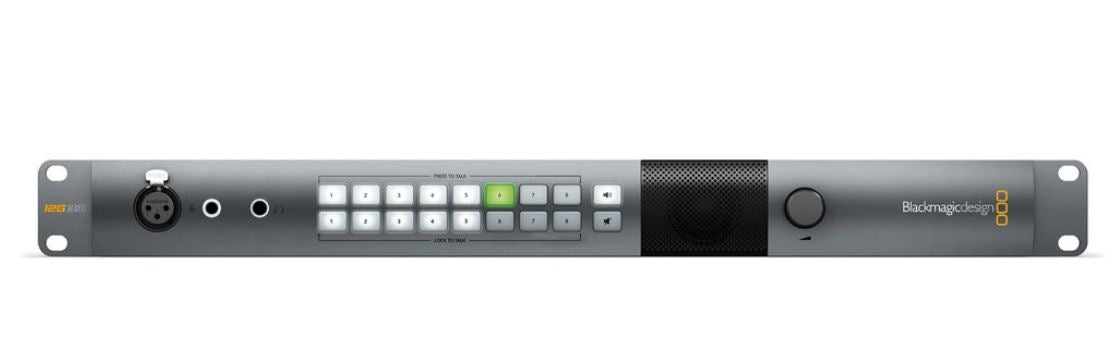

Blackmagic Design ATEM Talkback Converter 4K SWRCONVRCKT4K8 front
Black Magic Design

Blackmagic Design ATEM Talkback Converter 4K SWRCONVRCKT4K8

$2,495.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

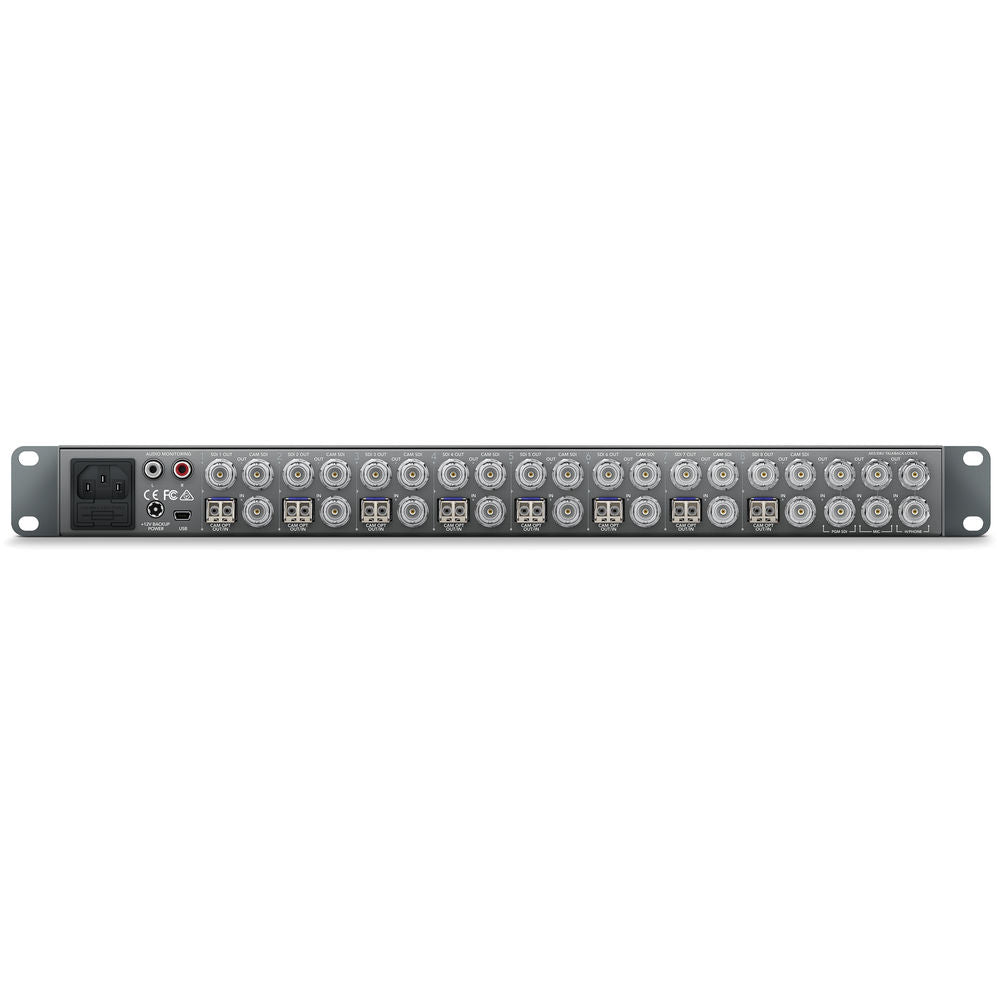

<strong>Connections</strong>
<strong>I/O:</strong>

1 x SDI Program Input
1 x SDI Program Output
1 x XLR for talkback microphone
1 x 0.25" TRS headset connector
1 x 0.206" TRS microphone connector
1 x Stereo RCA monitoring output
8 x 10-bit SD/HD/Ultra HD 4K camera input
8 x 10-bit SD/HD/Ultra HD 4K camera output
8 x 10-bit SD/HD/Ultra HD 4K output

With optional connectors
8 x LC fiber SD/HD/Ultra HD I/O with audio
<strong>Computer Interface</strong> :

1 x USB mini-B connector (for firmware updates)
<strong>Supported Formats</strong>
<strong>SD Format Support :</strong>

525/29.97 NTSC
625/25 PAL
<strong>HD Format Support :</strong>

1280 x 720p50, 59.94, 60
1920 x 1080i50, 59.94, 60
1920 x 1080PsF23.98, 24, 25, 29.97, 30
1920 x 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
<strong>2K Format Support :</strong>

2048 x 1080PsF23.98, 24, 25
2048 x 1080p23.98, 24, 25
<strong>4K Format Support</strong> :

3840 x 2160p23.98, 24, 25, 29.97, 30, 50, 60
4096 x 2160p23.98, 24, 25, 29.97, 30, 50, 60
<strong>SDI Compliance :</strong>

SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M
<strong>Video Processing :</strong>

Sampling: 4:4:4, 4:2:2
Color Precision: 10-bit
Color Space: REC 601, REC 709
Rate Support: SDI automatically switches between SD, HD, and UHD 4K
<strong>Audio Sampling :</strong>

24-bit, 48 KHz A/D Conversion

<strong>Other Specs</strong>
<strong>Compatible Operating Systems :</strong>

Mac OS X 10.9 and newer
Windows 7 and 8
<strong>Environmental</strong> :

Operating Temperature: 41 to 104&amp;decF / 5 to 40°C
Storage Temperature: -4 to 113°F / -20 to 45°C Relative Humidity: 0 to 90% non-condensing
<strong>Certifications</strong> :

EMC, UL, FCC, CE, C-Tick, KCC
<strong>Power Supply :</strong>

110 to 240 VAC input with redundant 12 to 31 VDC input
<strong>Power Usage :</strong>

60 W
<strong>Dimensions :</strong>

19 x 6.3 x 1.75" / 483 x 160 x 44 mm
Form Factor: 1 RU
<strong>Weight :</strong>

5 lb / 2.3 kg
