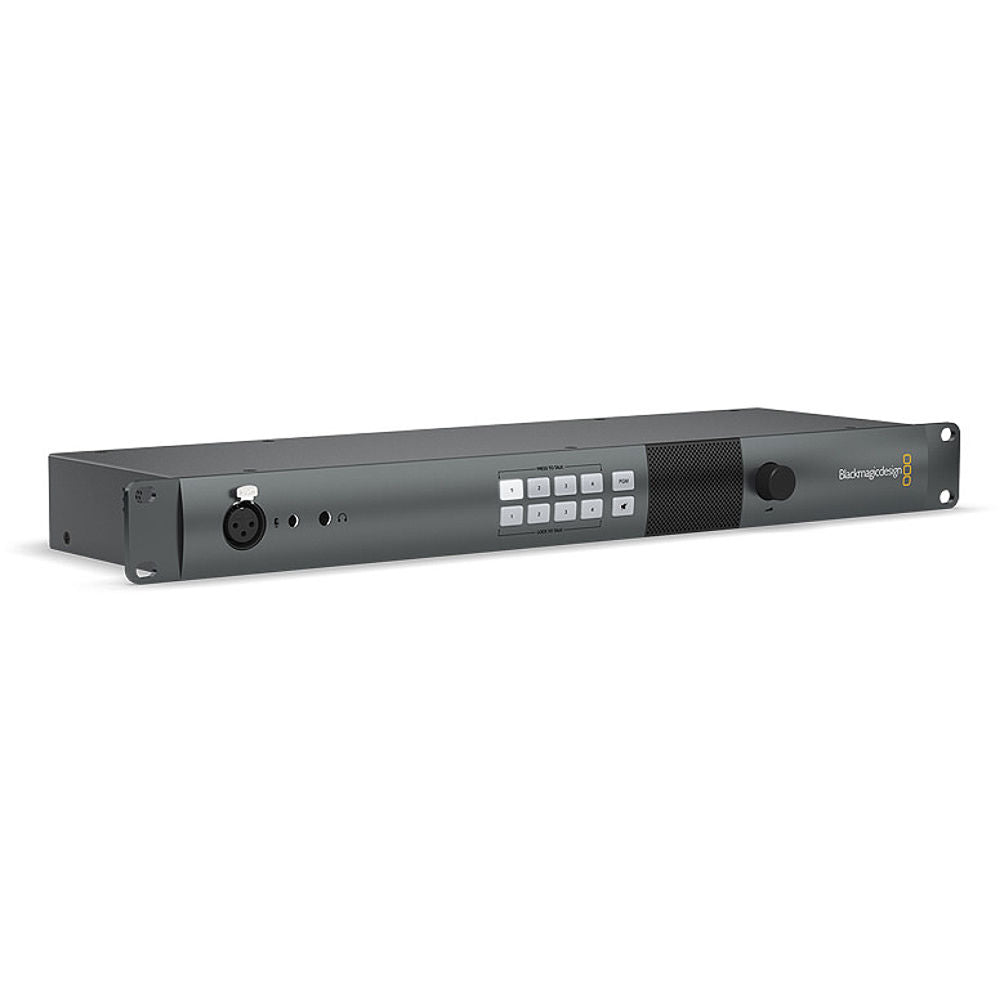

Blackmagic Design ATEM Studio Converter 2 SWRCONVRCK2

SKU: SWRCONVRCK2  |  UPC: 9 338716 001983
$1,995.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n 4 Bidirectional Converters in 1 RU Unit\n Optical Fiber Signal Range 28 Miles\n Connects up to 4 ATEM Camera Converters\n 4 x Fiber to SDI 10-bit Converters\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • 4 Bidirectional Converters in 1 RU Unit

  • Optical Fiber Signal Range 28 Miles

  • Connects up to 4 ATEM Camera Converters

  • 4 x Fiber to SDI 10-bit Converters


ATEM Studio Converter is the ideal partner for the ATEM Camera Converter. Connect up to four Camera Converters via optical fiber up to 28 miles away with bi-directional video plus tally and talkback! Connect your ATEM switcher program output to the ATEM Studio Converter and this is distributed to the four Camera Converters. Multiple Studio converters can be cascaded together when more than 4 cameras are needed.




ATEM Studio Converter

Is This Right For You?


Recommendation

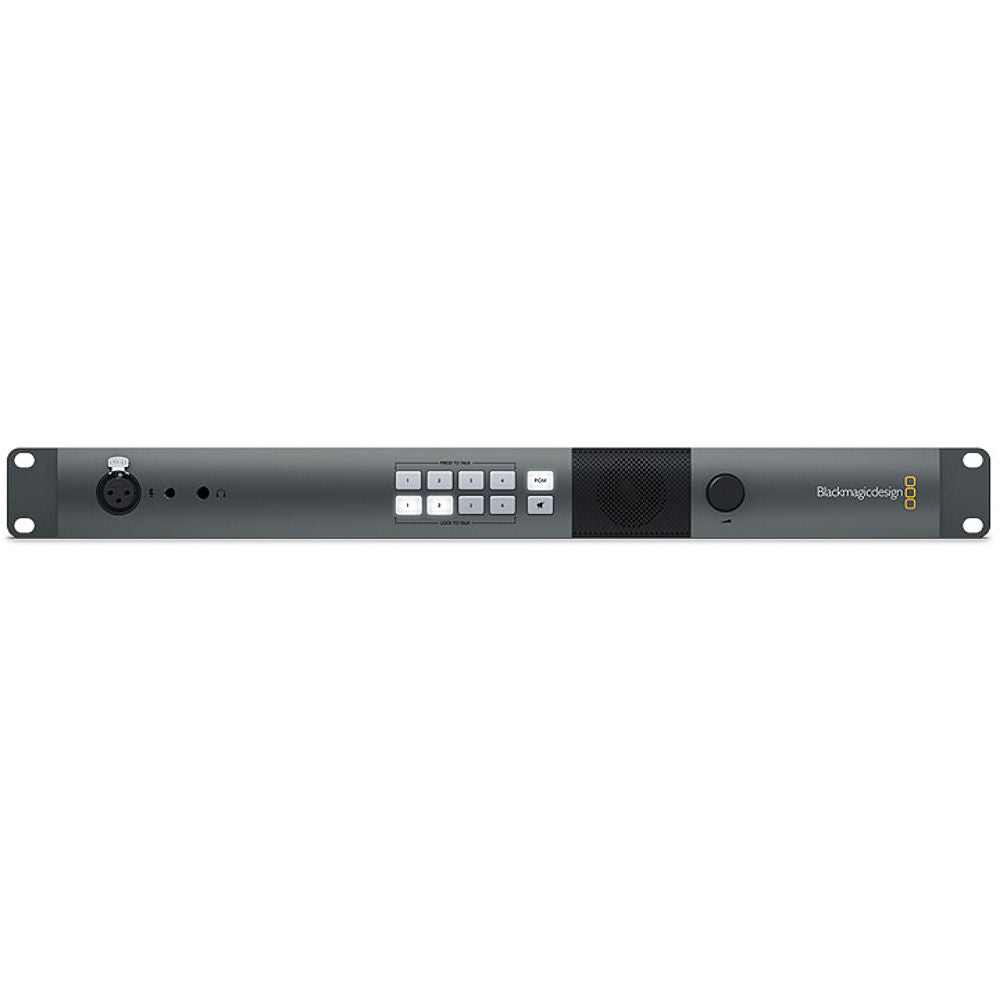

Blackmagic Design ATEM Studio Converter 2 SWRCONVRCK2 front
Black Magic Design

Blackmagic Design ATEM Studio Converter 2 SWRCONVRCK2

$1,995.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>Standards</strong>
<strong>Format Support :</strong>

<strong>4K</strong>
DCI 4096 x 2160p: 60/50/30/29.97/25/24/23.98
UHD 3840 x 2160p: 60/59.94/50/30/29.97/25/24/23.98

<strong>2K</strong>
2048 x 1080p: 25/24/23.98
2048 x 1080PsF: 25/24/23.98

<strong>HD</strong>
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

<strong>SD</strong>
NTSC
525i: 59.94
PAL
625i: 50
<strong>Video</strong>
<strong>SDI Video Input :</strong>

4 x 10-bit SD/HD switchable camera inputs
1 x 10-bit SD/HD switchable program input from switcher, including Tally information embedded in the SDI signal
<strong>SDI Compliance :</strong>

SMPTE 259M, SMPTE 292M
<strong>Video Sampling :</strong>

4:2:2
<strong>Color Precision :</strong>

10-bit
<strong>Color Space :</strong>

REC 601
REC 709
<strong>Optical Fiber Video Input :</strong>

4 x single mode SD/HD switchable camera inputs with LC connector
<strong>Optical Fiber</strong>

<strong> Input</strong>
4 x single mode LC connectors for video with embedded audio
Channels 1 &amp; 2 are camera audio
Channels 15 &amp; 16 are talkback audio

<strong>Output</strong>
4 x single mode LC connectors for video with embedded audio
Channels 1 &amp; 2 are camera audio
Channels 15 &amp; 16 are talkback audio
<strong>Audio :</strong>
<strong>Audio Sampling :</strong>

48 kHz
24-bit A/D conversion
<strong>Analog Audio Output :</strong>

4 x 3-Pin XLR Balanced Audio Pairs (1 x pair per fiber input)
2 x RCA jacks provide a L/R stereo pair
<strong>Talkback :</strong>

1 x 1/4" TRS headphone jack
1 x .206" TRS mic input for use with aviation style headset
1 x 3-pin XLR connector for talkback microphone
1 x Integrated speaker
<strong>Talkback Control :</strong>

8 x Front panel buttons for camera operator selection, lock, mute and un-mute
<strong>AES/EBU Talkback Loops :</strong>

<strong> Input</strong>
1 x BNC mic input
1 x BNC headphone input

<strong>Output</strong>
1 x BNC mic output
1 x BNC headphone output
<strong>General</strong>
<strong>OS Compatibility Mac :</strong>
OS X 10.7 Lion and later
OS X 10.8 Mountain Lion and later

<strong>Windows :</strong>
Windows 7
Windows 8
<strong>Computer Interface :</strong>

1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control
<strong>Temperature :</strong>

<strong> Operating</strong>
32 to 104°F (0 to 40°C)

<strong>Storage</strong>
-4 to 113°F (-20 to 45°C)
<strong>Power Requirements</strong> :

110 - 220 VAC, 50/60 Hz
12 - 31 VDC redundant input

<strong>Note</strong>: IEC power cord is required/not included, redundant power supply not included
<strong>Dimensions (H x W)</strong> 1.7 x 18.9" (44 x 482 mm)
1 RU size with built-in rackmount ears
<strong>Weight :</strong> 4 lb (1.81 kg)

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

N/A

N/A

Resolution

N/A

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

N/A

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

N/A

N/A

Focal Length

N/A

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

N/A

N/A

Power

N/A

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

N/A

N/A

TAA Compliant

N/A
View product
