Blackmagic Design ATEM Camera Converter SWRCONV

SKU: SWRCONV  |  UPC: 9338716001310
$595.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Enables Extension of SDI/HDMI Cameras\n Transmission Distance - 28 miles (45km)\n Internal Battery\n Talkback Function\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Enables Extension of SDI/HDMI Cameras

  • Transmission Distance - 28 miles (45km)

  • Internal Battery

  • Talkback Function


Get everything you need for cameras in live production with a single converter! Connect your camera’s SDI or HDMI outputs for conversion to optical fiber, while your switcher program feed can be fed back via optical fiber for camera monitoring. ATEM Camera Converter includes an internal battery, talkback, tally, and microphone inputs!




ATEM Camera Converter

Is This Right For You?


Recommendation

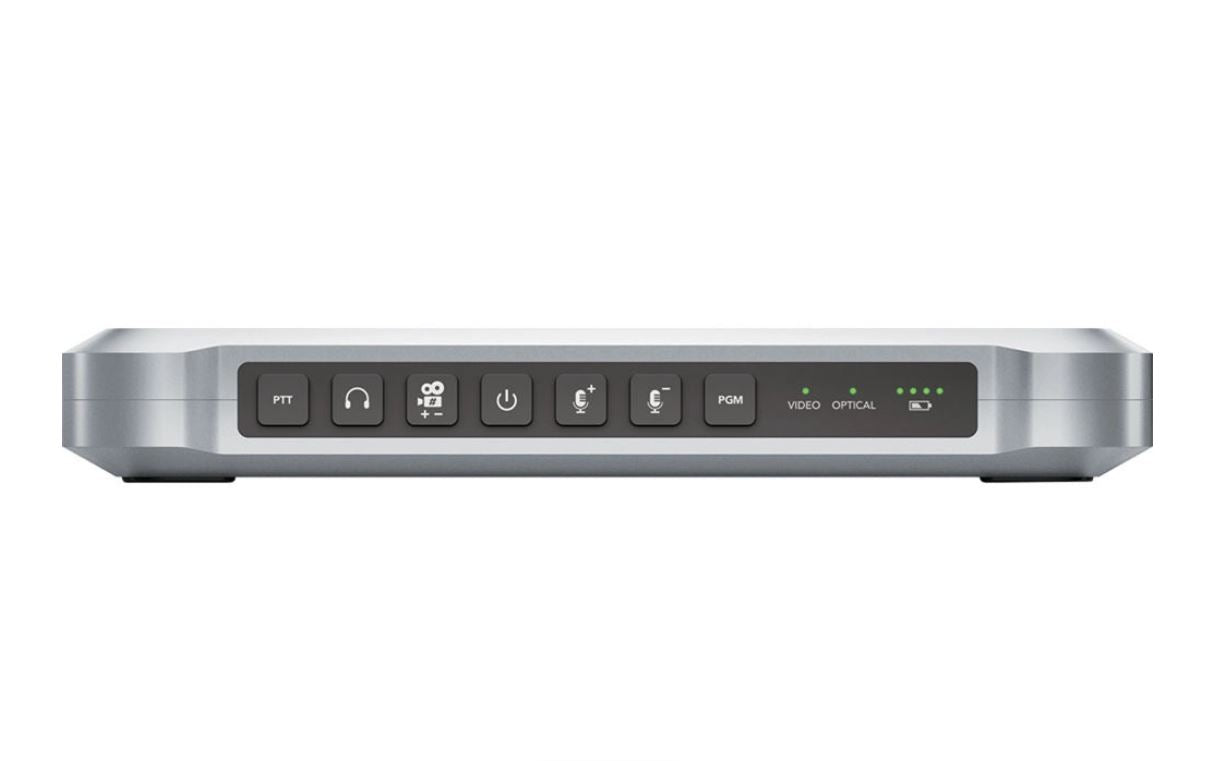

Blackmagic Design ATEM Camera Converter SWRCONV front
Black Magic Design

Blackmagic Design ATEM Camera Converter SWRCONV

$595.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>Video Input</strong> :

SDI Video Input:1 x 10 bit SD/HD switchable
SDI Video Output: 1 x 10 bit SD/HD switchable
DMI Video Input: 1 x HDMI 1.3 type A connector
HDMI Video Output: 1 x HDMI 1.3 type A connector
Optical Fiber Video Input: 1 x LC type, 10 bit SD/HD switchable
Optical Fiber Video Output: 1 x LC type, 10 bit SD/HD switchable

Only single-mode LC type fiber optic cables are recommended for all fiber optic connections above

&nbsp;

<strong>Analog Audio :</strong>

2 x balanced 1/4" TRS connectors (stereo), line or microphone level in. When connected, replaces audio from SDI In or HDMI In. 1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones (compatible with iPhone compatible headsets)
<strong>Computer Interface :</strong> 1 x USB 2.0 high speed interface for configuration and firmware updates
<strong>SDI Compliance :</strong> SMPTE 259M, SMPTE 292M
<strong>Video Sampling</strong> : 4:2:2
<strong>Audio Sampling :</strong> Television standard sample rate of 48Khz, 24 bit A/D conversion
<strong>Color Precision :</strong> 10 bit
<strong>Color Space :</strong> 4:2:2 YUV
<strong>Multiple Rate Support</strong> SDI and HDMI switches between 270Mb/s SD-SDI and 1.5Gb/s HD-SDI
<strong>Firmware Upgrade :</strong> Firmware built into software driver. Loaded at system startup or via updater software
<strong>Power Supply</strong> : 12V power supply included with international socket adaptors for all countries
<strong>Operating Systems Supported</strong> : Microsoft Windows XP, Windows Vista. Windows 7 and Apple Mac OS X
