General
<div class="border-bottom">
<h2 class="light resource-support-header">Specs & Details</h2>
</div>
<div id="spec-grid">
<div class="spec-group">

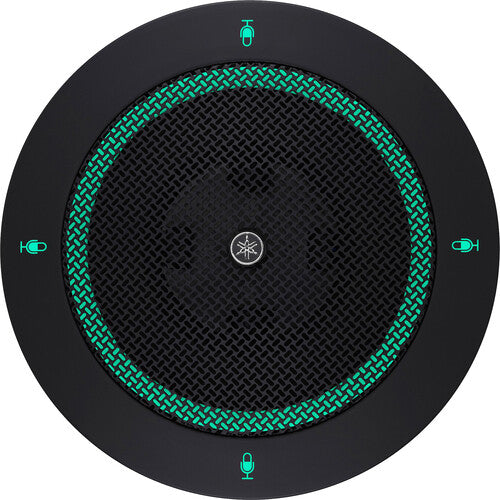

<h3 class="spec-group-title">RM-TT GENERAL</h3>
<div class="spec-row">
<div class="spec-title">Dimensions</div>
<div class="spec-description">140 (W) × 41.5 (H) × 140 (D) mm</div>
</div>
<div class="spec-row">
<div class="spec-title">Weight</div>
<div class="spec-description">310g</div>
</div>
<div class="spec-row">
<div class="spec-title">Power Requirements</div>
<div class="spec-description">PoE (IEEE 802.3af)</div>
</div>
<div class="spec-row">
<div class="spec-title">Maximum Power Consumption</div>
<div class="spec-description">4.5W</div>
</div>
<div class="spec-row">
<div class="spec-title">Connector</div>
<div class="spec-description">RJ45</div>
</div>
<div class="spec-row">
<div class="spec-title">In Operation Temp/Humidity</div>
<div class="spec-description">0°C - 40°C / 30% - 90% (no condensation)</div>
</div>
<div class="spec-row">
<div class="spec-title">Storage Temperature/Humidity</div>
<div class="spec-description">-20°C - 60°C / 20% - 90% (no condensation)</div>
</div>
<div class="spec-row">
<div class="spec-title">Indicator</div>
<div class="spec-description">Mute indicator (Mute/Unmute), Status indicator, Network port indicator</div>
</div>
<div class="spec-row">
<div class="spec-title">Max Device Number with RM-CR</div>
<div class="spec-description">14</div>
</div>
<div class="spec-row">
<div class="spec-title">Accessories</div>
<div class="spec-description">Installation manual, Tabletop mounting adapter, Screw for mounting x 3, Spacer x 3</div>
</div>
</div>
<div class="spec-group">
<h3 class="spec-group-title">RM-TT NETWORK</h3>
<div class="spec-row">
<div class="spec-title">Ethernet</div>
<div class="spec-description">Dante, Remote Control, Web UI, PoE</div>
</div>
<div class="spec-row">
<div class="spec-title">Cable Requirements</div>
<div class="spec-description">CAT5e or higher (STP)</div>
</div>
</div>
<div class="spec-group">
<h3 class="spec-group-title">RM-TT AUDIO SPECIFICATIONS</h3>
<div class="spec-row">
<div class="spec-title">Audio I/O Dante</div>
<div class="spec-description">1in/2out</div>
</div>
<div class="spec-row">
<div class="spec-title">Sampling Rate</div>
<div class="spec-description">48kHz</div>
</div>
<div class="spec-row">
<div class="spec-title">Bit Depth</div>
<div class="spec-description">24bit</div>
</div>
<div class="spec-row">
<div class="spec-title">Frequency Response</div>
<div class="spec-description">160Hz - 16kHz (-10dB)</div>
</div>
<div class="spec-row">
<div class="spec-title">Max Input Level of SPL (0dBFS)</div>
<div class="spec-description">106.8dB SPL</div>
</div>
<div class="spec-row">
<div class="spec-title">Self Noise</div>
<div class="spec-description">6.3dBA SPL</div>
</div>
<div class="spec-row">
<div class="spec-title">SN Ratio Ref. 94dB SPL at 1kHz</div>
<div class="spec-description">87.7dBA</div>
</div>
<div class="spec-row">
<div class="spec-title">Sensitivity</div>
<div class="spec-description">-12.8dBFS/Pa</div>
</div>
<div class="spec-row">
<div class="spec-title">Dynamic Range</div>
<div class="spec-description">100.5dBA</div>
</div>
<div class="spec-row">
<div class="spec-title">Signal Processing</div>
<div class="spec-description">Auto Voice Tracking, Selectable Polar Pattern (Cardioid, Hyper-cardioid, Super-cardioid, Omnidirectional, Bidirectional, Troid), Adaptive Echo Canceller, Noise Reduction, Dereverberation, Auto Mixer, Auto Gain Control, Parametric EQ, Output Gain</div>
</div>
</div>
<div class="spec-group">

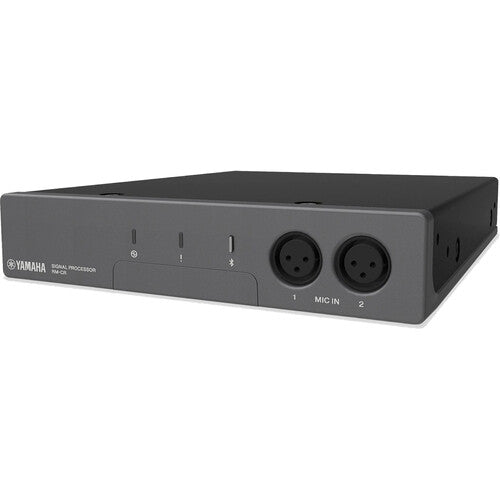

<h3 class="spec-group-title">RM-CR GENERAL</h3>
<div class="spec-row">
<div class="spec-title">Dimensions</div>
<div class="spec-description">215 (W) x 44 (H) x 260 (D) mm</div>
</div>
<div class="spec-row">
<div class="spec-title">Weight</div>
<div class="spec-description">1.6kg</div>
</div>
<div class="spec-row">
<div class="spec-title">Power Requirements</div>
<div class="spec-description">PoE+ (IEEE 802.3at, LLDP), DC 48V</div>
</div>
<div class="spec-row">
<div class="spec-title">Maximum Power Consumption</div>
<div class="spec-description">15.0W</div>
</div>
<div class="spec-row">
<div class="spec-title">In Operation Temp/Humidity</div>
<div class="spec-description">0°C - 40°C / 30% - 90% (no condensation)</div>
</div>
<div class="spec-row">
<div class="spec-title">Storage Temperature/Humidity</div>
<div class="spec-description">-20°C - 60°C / 20% - 90% (no condensation)</div>
</div>
<div class="spec-row">
<div class="spec-title">Indicator</div>
<div class="spec-description">Power indicator, Status indicator, Bluetooth indicator, Network port indicator x 3</div>
</div>
<div class="spec-row">
<div class="spec-title">Accessories</div>
<div class="spec-description">Installation manual, USB Cable (A-B) 5m (16.4ft), USB Cable (A-microB) 1m (3.3ft), Rubber foot x 4, Access panel</div>
</div>
<div class="spec-row">
<div class="spec-title">Options</div>
<div class="spec-description">Rack Mount Kit RM-MTL, Table Mount Kit RM-MRK</div>
</div>
</div>
<div class="spec-group">
<h3 class="spec-group-title">RM-CR NETWORK</h3>
<div class="spec-row">
<div class="spec-title">Ether1</div>
<div class="spec-description">Dante, Remote Control, Web UI, PoE+</div>
</div>
<div class="spec-row">
<div class="spec-title">Ether2/Ether3</div>
<div class="spec-description">Corporate Network, Remote Control, SIP, Web UI</div>
</div>
<div class="spec-row">
<div class="spec-title">USB Network (Front)</div>
<div class="spec-description">USB2.0, Network Class, Web UI, Fixed IP</div>
</div>
<div class="spec-row">
<div class="spec-title">Cable Requirements</div>
<div class="spec-description">Ethernet1/2/3: CAT5e or higher (STP) USB Network : USB Cable (A-microB)</div>
</div>
</div>
<div class="spec-group">
<h3 class="spec-group-title">RM-CR AUDIO SPECIFICATIONS</h3>
<div class="spec-row">
<div class="spec-title">Audio I/O Dante</div>
<div class="spec-description">16in/16out</div>
</div>
<div class="spec-row">
<div class="spec-title">Audio I/O USB</div>
<div class="spec-description">USB2.0, Audio Class 1.0, Input: 2ch, Output: 2ch @48kHz</div>
</div>
<div class="spec-row">
<div class="spec-title">Audio I/O Microphone Input</div>
<div class="spec-description">XLR Balanced, Input: 2ch</div>
</div>
<div class="spec-row">
<div class="spec-title">Audio I/O Aux</div>
<div class="spec-description">RCA Unbalanced (Line Level), Input: 2ch, Output: 2ch</div>
</div>
<div class="spec-row">
<div class="spec-title">Audio I/O Speaker Out</div>
<div class="spec-description">RCA Unbalanced (Line Level), Output: 2ch</div>
</div>
<div class="spec-row">
<div class="spec-title">Audio I/O Bluetooth</div>
<div class="spec-description">Version 4.2 Supported Profiles: HFP (1.6), A2DP, AVRCP Supported Codec: CVSD, SBC, mSBC Wireless Output: Class2 Maximum Communication Distance: 10m (32.8ft) (no obstacles) Radio Frequency (Operational Frequency): 2,402MHz - 2,480MHz Maximum Output Power (EIRP): 4.0dBm (2.5mW)</div>
</div>
<div class="spec-row">
<div class="spec-title">Audio I/O SIP</div>
<div class="spec-description">Call Handling: Dial, Answer, Hold, Resume, Forwarding, Do not disturb, Redial, Call timer, Call ID, Voice mail notifications (switch configured) Call Bridging: Supports bridging SIP, USB, BT and AUX calls. Join, Split, Hold, Resume, 5+1 lines: up to 2 SIP calls, 1 USB call, 1 Bluetooth call, 1 AUX, Plus the user Codecs: G.711, G.722HD, G.729ab, G.726 DTMF Support: RTP event, SIP in-band, SIP info package Security: SRTP support (RFC 1889), IETF SIP support (RFC 3261 and companion RFCs)</div>
</div>
<div class="spec-row">
<div class="spec-title">Sampling Rate</div>
<div class="spec-description">48kHz</div>
</div>
<div class="spec-row">
<div class="spec-title">Bit Depth</div>
<div class="spec-description">24bit</div>
</div>
<div class="spec-row">
<div class="spec-title">Latency</div>
<div class="spec-description">8ms (Dante In to USB Out, includes signal processing)</div>
</div>
<div class="spec-row">
<div class="spec-title">Frequency Response</div>
<div class="spec-description">20Hz - 20kHz</div>
</div>
</div>
</div>
