Shure QLXD14/84 Digital Wireless Supercardioid Lavalier Microphone System (G50: 470 to 534 MHz)

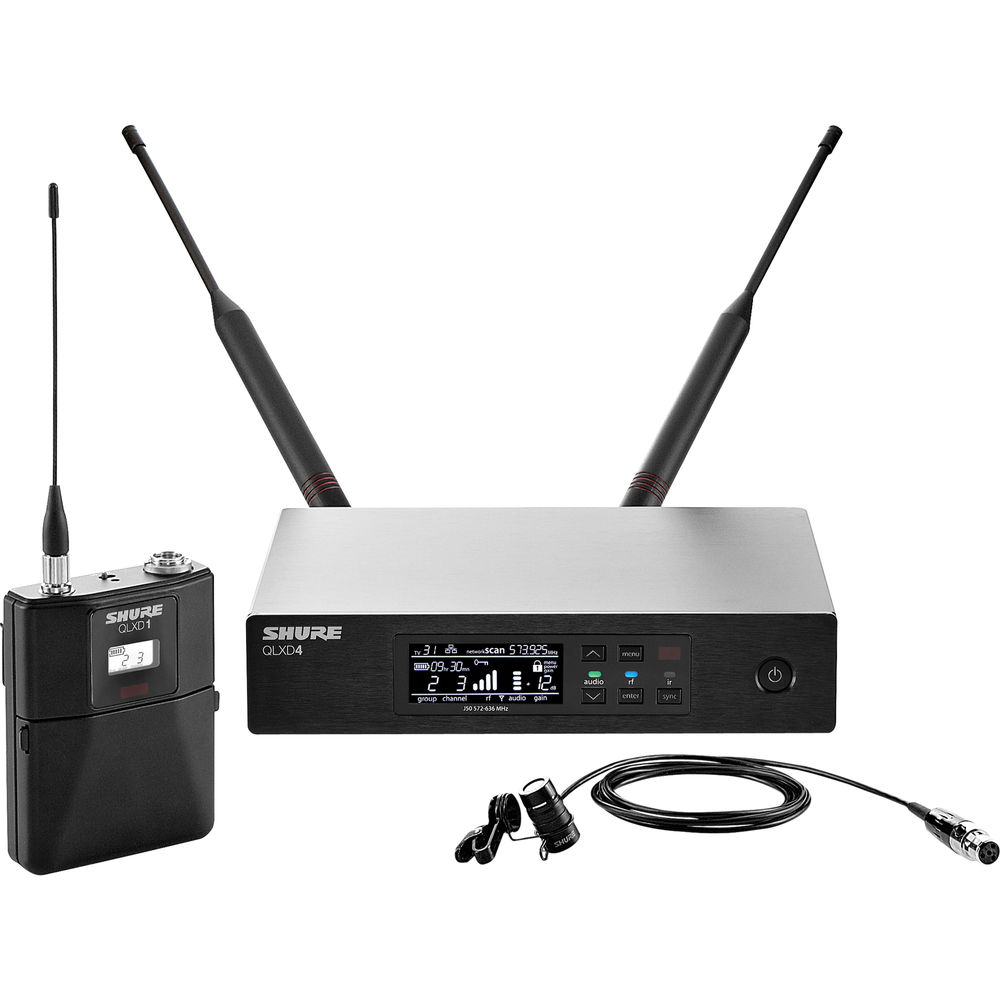

Shure QLXD14/84 Rackmount Digital Wireless Lavalier Microphone System

Superior Audio for Professionals

The Shure QLXD14/84 Lavalier Wireless Microphone System is crafted for instructors, presenters, and broadcasters seeking professional-quality audio, reliable RF performance, and secure AES 256-bit encryption.

Ideal for Diverse Environments

Built rugged and easy-to-use, this system is ideal for TV broadcasts, sound-reinforcement applications in medium-sized venues, houses of worship, and A/V installations in conference, educational, and corporate facilities.

Pristine Digital Audio Transmission

Operating in the UHF band, the QLXD14/84 transmits pristine 24-bit/48 kHz digital audio with clarity, accurate low end, and crisp transient response. Digital Predictive Switching Diversity ensures interference-free transmission with solid RF signal stability.

Scalable Mic Channels

With the capability to run up to 60 mic channels at the same location, this system offers flexibility for various audio capture scenarios.

WL184 Supercardioid Lavalier Microphone

The system includes a WL184 supercardioid lavalier microphone optimized for speech intelligibility. Its supercardioid polar pattern minimizes background noise and feedback for crystal-clear audio.

Intelligent Bodypack Transmitter

The QLXD1 bodypack transmitter, with a locking TA4M connection, provides up to 9 hours of operation on two AA batteries. It features adjustable input sensitivity for versatile speaking styles and mic levels.

Robust Performance and Security

Operating in the G50: 470 to 534 MHz UHF band with a 64 MHz tuning range and 2560 selectable frequencies, the system ensures robust performance. 256-bit AES encryption offers unbreachable privacy, and low latency makes it ideal for live sound reinforcement.

Easy Setup and Monitoring

The receiver’s scanning function, automatic channel scan, and IR sync make setup seamless. The receiver offers up to 60 dB of adjustable gain with an internal limiter to prevent digital clipping.

Precision Control with Ethernet Networking

Ethernet networking enables real-time monitoring and control via Shure's Wireless Workbench (WWB) software. Compatible with external controllers like AMX and Creston, it provides enhanced precision.

Remote Control and Smart Power Management

The ShurePlus Channels Mobile App for iOS devices allows remote adjustments. Smart Power Management options on the transmitter, including the SB900A lithium-ion rechargeable battery, provide extended battery life.

Enhance System Reliability

Accessories like UA874 active antennas or PA805 passive antennas increase system range and protection against interference. The UA844+SWB antenna distribution system offers more on-air channels in less setup time.

Adaptable Microphone Options

Shure provides numerous lavalier, headset, and handheld microphone options to adapt the QLX-D system to evolving needs, ensuring versatility in various applications.

Elevate Your Audio Experience

With superior audio quality, advanced features, and compatibility with a range of microphones, the Shure QLXD14/84 Lavalier Wireless Microphone System delivers unparalleled performance for professional audio capture in diverse environments.
