SKU: C803AT47

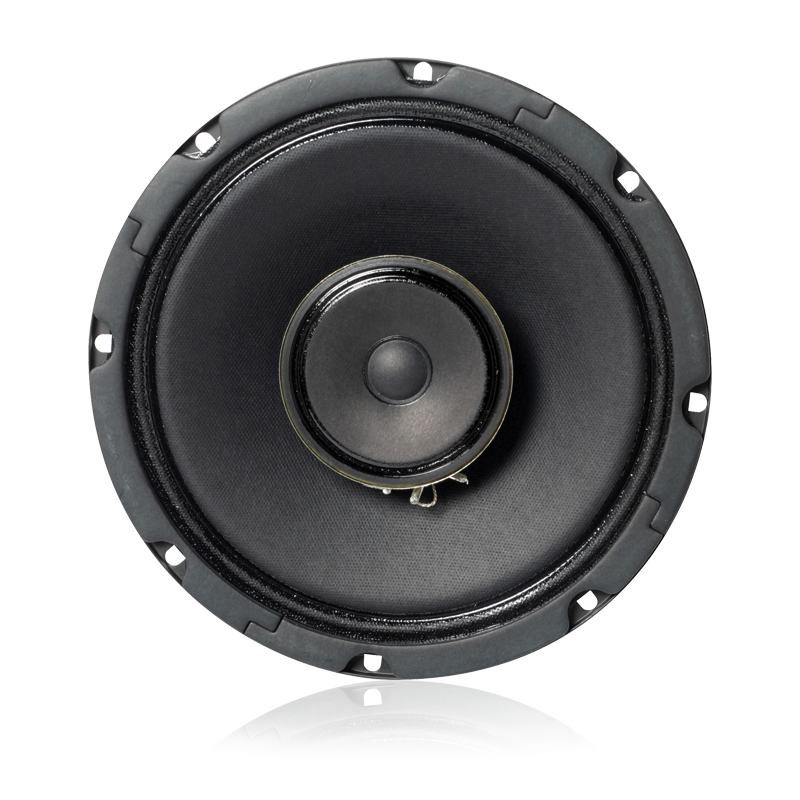

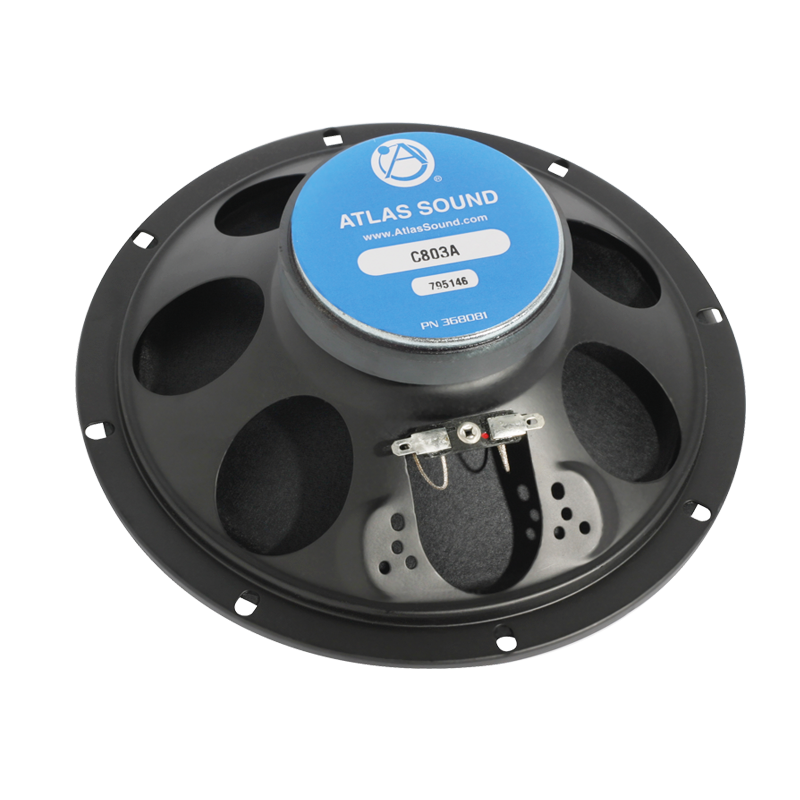

Atlas Sound 8" In-Ceiling Coaxial Speaker with 4-Watt 70V Transformer C803AT47

$64.99
Free Shipping At Checkout!

CYBER WEEK Extended additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
  • Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker
  • Offers Proven Performance with Wide Frequency Response
  • Post-Mounted Tweeter Adds Strength and a More Attractive Appearance
  • UL Certified, Safety Listed to UL1480A and UL2043

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form

  • Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use

  • Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker

  • Offers Proven Performance with Wide Frequency Response

  • Post-Mounted Tweeter Adds Strength and a More Attractive Appearance

  • UL Certified, Safety Listed to UL1480A and UL2043


Model C803AT47, A high-quality 16-watt loud speaker with a factory-installed 70.7V 4W linematching transformer Model C803AT47 utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 70Hz - 15.5kHz, ±5dB frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems. The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter). Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu.
