Atlas Sound 8" Dual Cone Sound Masking Speaker with 4-Watt 70V Transformer and Enclosure - Black M1000

• Pre-Assembled Unit Includes 8" dia. Loudspeaker, Transformer, Enclosure, Baffle and Mounting Hardware


• Labor-Saving Hardware Package – Complete with New Snap Hanger Assembly, Allows Quick and Easy Installation


• Innovative Input Panel Includes Combination Knock-Out and Strain Relief Connector to Accommodate Flexible or Rigid Conduit


• Design Enables Upward, Downward, or Horizontal Orientation


• 734 cu in Enclosure for Extended Low Frequency Response

• Pre-Assembled Unit Includes 8" dia. Loudspeaker, Transformer, Enclosure, Baffle and Mounting Hardware


• Labor-Saving Hardware Package – Complete with New Snap Hanger Assembly, Allows Quick and Easy Installation


• Innovative Input Panel Includes Combination Knock-Out and Strain Relief Connector to Accommodate Flexible or Rigid Conduit


• Design Enables Upward, Downward, or Horizontal Orientation


• 734 cu in Enclosure for Extended Low Frequency Response


• Available in Black or White Epoxy Finishes to Blend with a Variety of Open Ceiling Plans


• Suitable for Use Above Suspended Ceiling Systems or Open Ceiling Spaces Approved for Use in Air Handling (Plenum Ceilings)

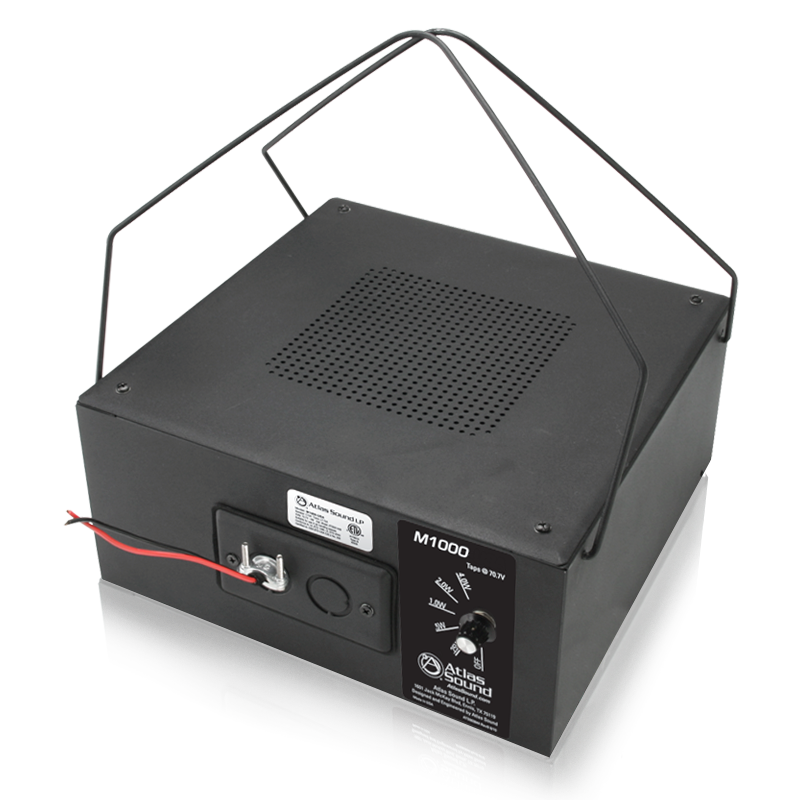

Introducing the M1000 sound masking speaker assembly, a comprehensive solution designed to accurately reproduce the required spectrum of masking signals into the plenum space. This innovative assembly ensures optimal performance and ease of installation.

The M1000 features a specially designed 8" dual cone speaker that provides precise sound reproduction. The 734 cubic inch square enclosure guarantees ample low-frequency response, delivering a well-rounded sound masking experience.

To ensure easy system tuning, a high-efficiency 70.7V internal transformer is coupled with an external tap selector switch. This allows for convenient adjustment of the system to meet specific requirements.

Installation is made simple with the exclusive AtlasIED EZ hang brackets. These innovative brackets utilize collapsible plated hangers that can be quickly adjusted for upward, downward, or side-firing installation. The hangers come pre-installed on the unit and fold flat for shipping, saving time and effort during setup.

To meet local code requirements, the M1000 includes an innovative cover with knockouts and a strain relief. This feature allows for the use of rigid or flexible conduit, if needed, and accommodates "through" connections on the removable plate. The assembly is UL 2043 listed for use in air handling spaces, ensuring compliance and safety.

For added convenience, an optional 78" (2m) suspension chain system (part MCHAIN72) is available. This system allows for quick mounting and height adjustment of the M1000, providing flexibility in installation.

The M1000 also includes an integral wire strain relief strategically located on the top of the enclosure. This feature ensures secure termination of speaker cables, minimizing the risk of damage or disconnection.

Choose the M1000 sound masking speaker assembly for accurate sound reproduction, simplified installation, and compliance with safety standards. Experience enhanced sound masking performance with this comprehensive solution from AtlasIED.
