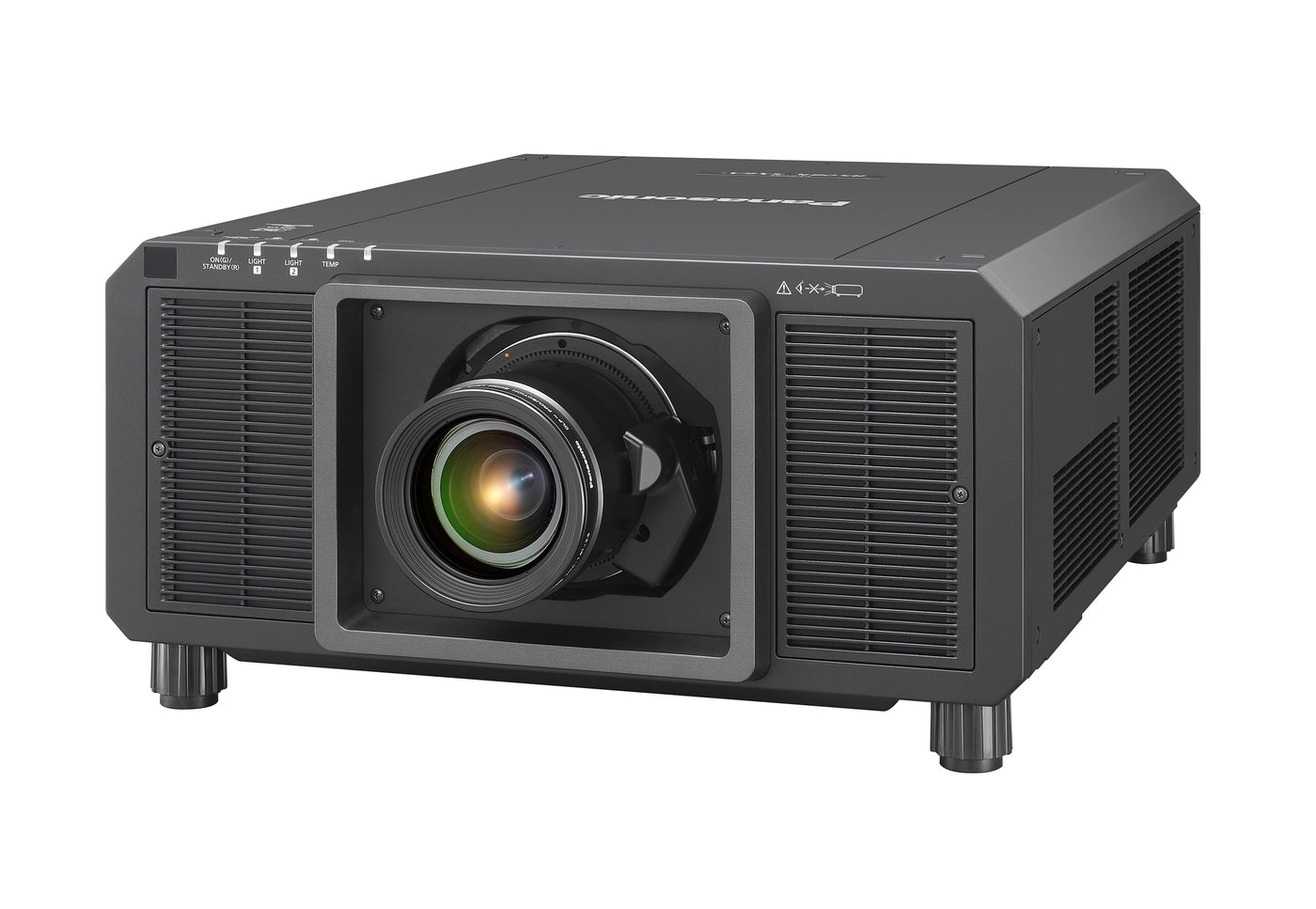

3-Chip DLP™ SOLID SHINE Laser projectors capture a more accurate color space than comparable laser projectors. Blue lasers ensure greater precision while an expanded color gamut improves white-balance accuracy.

*1 As of October 2017.

*2 Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period.

*3 At this time, brightness will have decreased to approximately 50 % of its original level (NORMAL Mode, Dynamic Contrast Mode: 3, Image Mode: Dynamic, IEC62087: 2008 Broadcast Content, dust density of 0.15 mg/m³). Usage environment affects light-source lifespan. Replacement of parts other than the light source may be required in a shorter period. Panasonic recommends cleaning or checkup at point of purchase after approximately 20,000 hours.

Real Motion Processor interpolates images for a 120 Hz* frame-rate. Smooth 120 Hz* reproduction is possible via simultaneous inputs (dual SDI inputs or DVI-D/HDMI). Together with a refined optical engine to enhance focus, Real Motion Processor delivers a better sense of resolution, contrast, and fluidity.

*Refresh-rate varies depending on vertical scanning frequency.

Proprietary circuitry analyzes individual video frames to identify and clarify areas of the image containing fine details and textures. Algorithms pull information from four frequency bandwidths, from super-high to low, to sharpen outlines, correct contours, and reduce ringing noise.

Direct laser power output modulation achieves high contrast with less power consumption. Digitally controlled frame-by-frame scene-linking modulation ensures precise output adjustment, while accurate 20,000:1* contrast is delivered even when bright and dark scenes frequently interchange.

* Please refer to the specification page for detail condition.

This premium technology stops pictures washing out in bright light and assures dramatic impact for mapping and multi-projector applications. It uses sensor information to correct sharpness, gamma curves, and colors to suit on-site conditions.

Contrast Sync allows Dynamic Contrast Control to be synchronized for consistent picture quality across multiple screens. Shutter Sync, meanwhile, synchronizes shutter on/off timing.

Projectors switch instantly to a backup input* should the primary signal be disrupted, so the display is maintained in situations where projection must not be interrupted. No screen-blanking occurs during backup input switching.

Note: Primary and secondary signals must be the same.

*Combination of primary/secondary input terminals is fixed. Switching to secondary input (or primary input) occurs automatically when the input signal for primary input (or secondary input) is disrupted. The Backup Input Setting is enabled only when the input signal to primary and secondary terminals is the same.

Panasonic has added a new Free Grid function to existing Geometric Adjustment that enables convenient grid-based image adjustment using the projector’s remote controller. Grid resolutions of 2 x 2, 3 x 3, 5 x 5, 9 x 9, or 17 x 17 can be projected and areas of the image reshaped or geometrically altered to compensate for screen distortions. This correction is easily performed by adjusting control points located at grid-line intersections. Move freely between grid resolutions to achieve the desired level of granularity without losing work progress. This clever data-saving function allows technicians to smoothly create a distortion-free projection in a wide range of installation situations.

Note: Free Grid requires the latest firmware. Register your projector at PASS to update firmware.

Download free Geometry Manager Pro software to expand geometric and multi-screen setup and calibration capabilities via PC. The suite includes two upgrade kits that can be optionally unlocked with paid key codes. ET-UK20 adds uniformity correction and extensive creative masking capabilities. ET-CUK10 features Auto Screen Adjustment which enables simultaneous setup (including curved-screen correction) of multiple projectors for multi-screen applications using a compatible camera. This streamlines edge-blending, color-matching, black-level, stacking, and brightness uniformity calibration.

Note: Requires the latest firmware. Register your projector at PASS to update firmware, get free Geometry Manager Pro software for PC, obtain activation keys for ET-UK20 and ET-CUK10, and download a plug-in for ET-CUK10. Compatible cameras for ET-CUK10 comprise Panasonic AW-HE70/ AW-UE70 and Nikon D5200/D5300/D5500/D5600.

Panasonic Multi Monitoring & Control Software supports up to 2,048 devices over LAN and features system map visualization or auto-search of devices to be registered. The free software is available with Early Warning functions (automatic free 90-day trial available). These advanced functions enable real-time monitoring, abnormality detection, and notification before servicing is required. Administrators can achieve seamless control and real-time monitoring while preventing potential problems, saving time, and enhancing system reliability.

*Software functionality varies depending on the model.
