JBL VTXA12-BP Dual 12-inch Line Array Loudspeaker | 90-Degree Dispersion

SKU: VTXA12BP  |  UPC: 691991034251
Call For Price
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Space-efficient and lightweight\n Full-face grill offers superior weather protection\n Seamlessly integrates with JBL system control\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Space-efficient and lightweight

  • Full-face grill offers superior weather protection

  • Seamlessly integrates with JBL system control

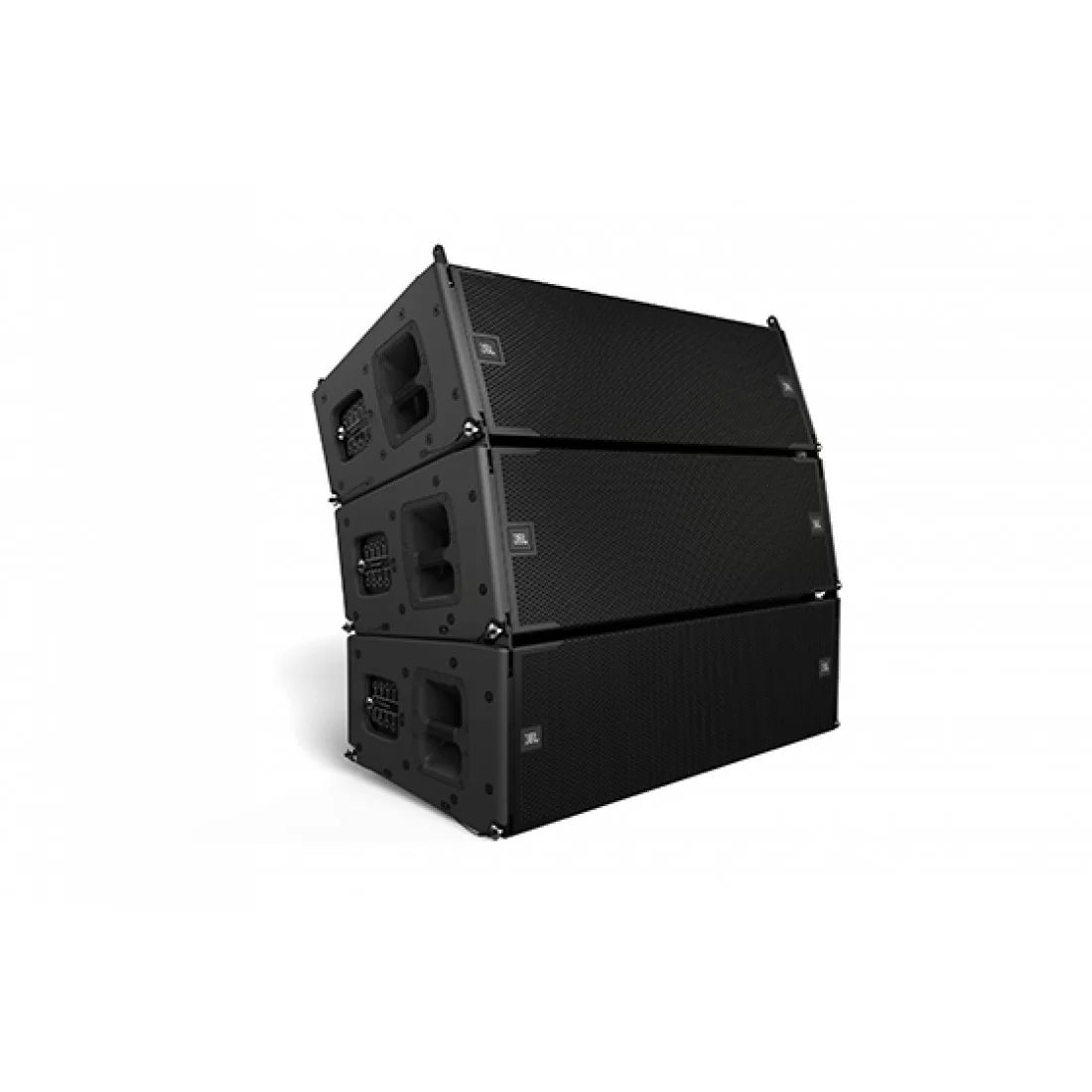

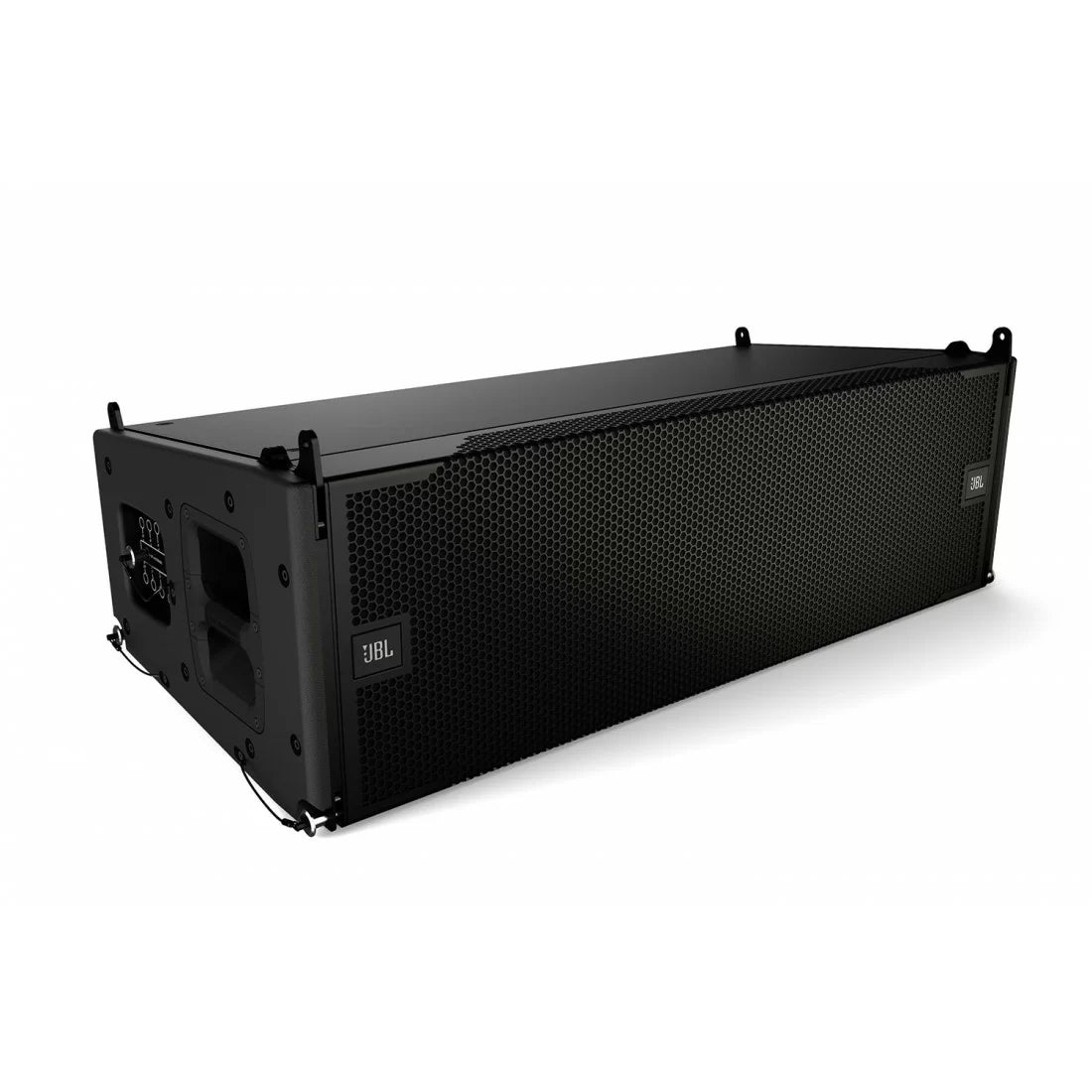

JBL VTX A12 Loudspeaker: Revolutionizing Tour Sound

The JBL VTX A12 Loudspeaker is a game-changing solution designed to meet the demanding needs of mid- to large-size touring applications and high-end fixed installations. Meticulously engineered from the ground up, the VTX A12 caters to the unique challenges faced by rental companies, FOH engineers, and tour sound production crews.

Unmatched Performance and Coverage:

  • Harnessing next-generation JBL transducer technology and a precision-crafted high-frequency waveguide, the VTX A12 achieves unrivaled performance, sensitivity, and coverage. It redefines the standards of sonic excellence.


Efficiency in Deployment:

  • Featuring a patented JBL rigging mechanism and a revamped suspension system, the setup and deployment process has been streamlined. This innovation ensures a hassle-free experience for professionals in the field.


Reliability Meets Versatility:

  • Our commitment to reliability and versatility is reflected in every aspect of the VTX A12's physical design. This loudspeaker boasts minimal size, dramatically reduced weight, and maximum dependability.


Beyond a Line Array:

  • The VTX A12 is not just another line array; it represents a paradigm shift in tour sound technology. It reimagines how sound professionals approach their craft.


Key Features:

  • New and enhanced JBL transducers deliver optimal output-to-weight ratio.

  • Innovative HF section integrates the phasing plug and waveguide for high sensitivity and linearity, even at high output levels.

  • Redesigned Radiation Boundary Integrator® (RBI) reduces horn edge diffraction, improves LF sensitivity, lowers distortion, and provides 90-degree coverage down to 250 Hz.

  • Next-generation LF section, featuring Differential Drive woofers with a dual magnet, dual voice-coil design for extended linear excursion.

  • Best-in-class rigging for rapid, streamlined deployment.

  • Full-face grill offers superior weather protection and a refined aesthetic.

  • New transport cart and frame simplify transportation and setup.

  • Space-efficient and lightweight design without compromising performance.

  • Seamlessly integrates with JBL system control and prediction software.


The JBL VTX A12 Loudspeaker redefines excellence in tour sound, setting new benchmarks in performance, reliability, and versatility. Experience the future of sound technology with a system that's as groundbreaking as it is efficient.

Is This Right For You?


Recommendation


JBL VTXA12-BP Professional Loudspeakers
JBL

JBL VTXA12-BP Dual 12-inch Line Array Loudspeaker | 90-Degree Dispersion

Call For Price

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<table class="specs">
<tbody>
<tr>
<td class="name">Frequency Range (-10dB)</td>
<td>46 Hz - 19k Hz (Preset: VTX A12)</td>
</tr>
<tr>
<td class="name">Horizontal Coverage (-6 dB)</td>
<td>90 degrees nominal (250 Hz - 18k Hz)</td>
</tr>
<tr>
<td class="name">Max SPL</td>
<td>146 dB (Preset: VTX A12)</td>
</tr>
<tr>
<td class="name">System Amplification</td>
<td>Crown Audio I-Tech HD</td>
</tr>
<tr>
<td class="name">Nominal Impedance</td>
<td>LF: 2x 8 ohms
MF: 8 ohms
HF: 8 ohms</td>
</tr>
<tr>
<td class="name">LF Driver</td>
<td>(2) JBL 2264H 12-inch Neodymium Differential Drive® woofer</td>
</tr>
<tr>
<td class="name">MF Driver</td>
<td>(4) JBL 2165H 5.5-inch Neodymium Differential Drive® woofer</td>
</tr>
<tr>
<td class="name">HF Driver</td>
<td>(3) JBL 2423K 2-inch annular diaphragm compression driver</td>
</tr>
<tr>
<td class="name">Enclosure</td>
<td>Finnish birch plywood, Black DuraFlex finish, integral recessed handles</td>
</tr>
<tr>
<td class="name">Suspension / Mounting</td>
<td>High-grade steel with anti-corrosion coating, captive suspension plates, quick release pins, auto-locking mechanism for setting angles</td>
</tr>
<tr>
<td class="name">Inter-enclosure Angle</td>
<td>0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 6 | 8 | 10</td>
</tr>
<tr>
<td class="name">Dimensions (H x W x D)</td>
<td>330 mm x 1118 mm x 495 mm
13 in x 44 in x 19.5 in</td>
</tr>
<tr>
<td class="name">Net Weight (each)</td>
<td>60.8 kg (134 lbs)</td>
</tr>
</tbody>
</table>
