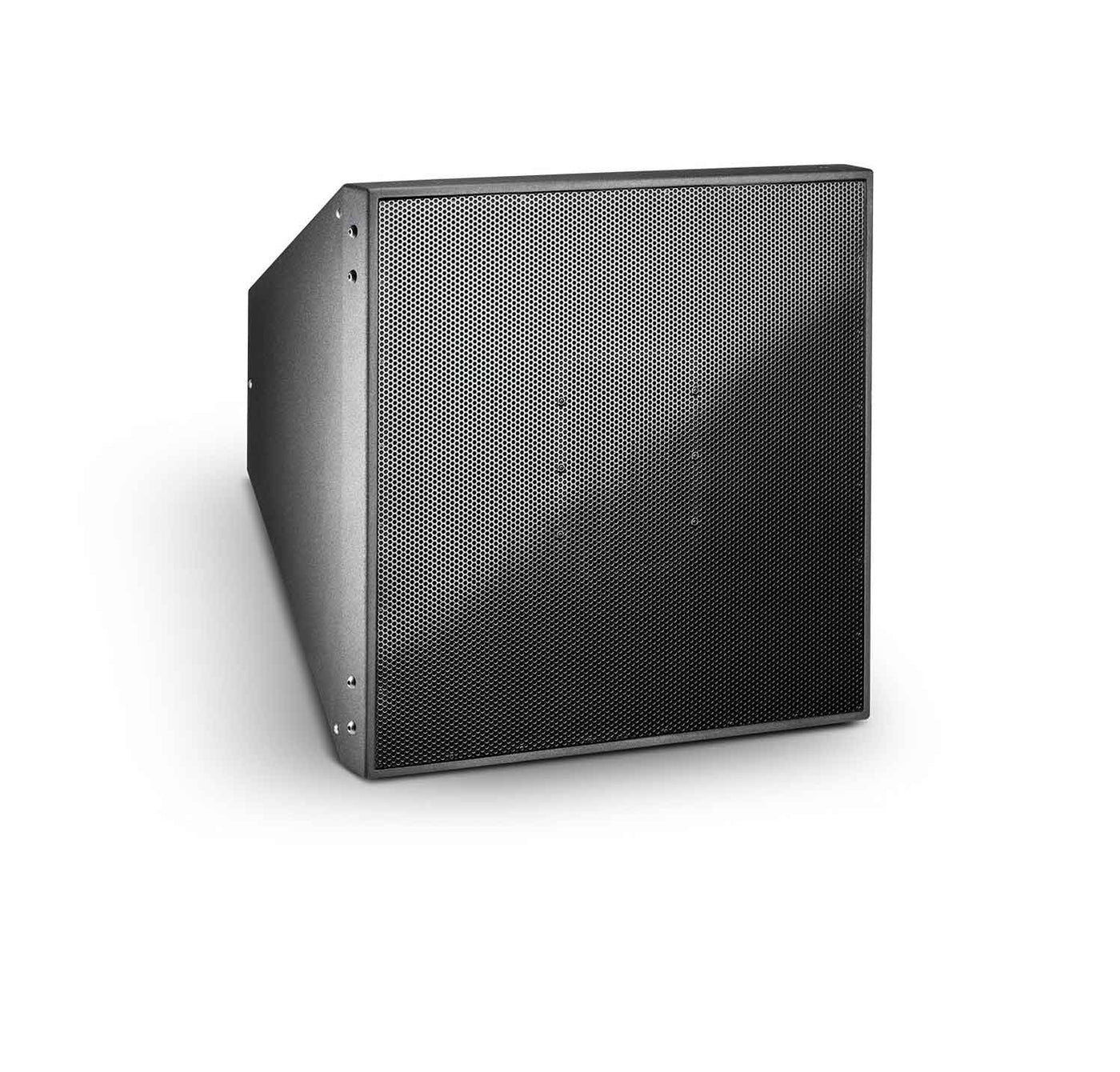

JBL PD743i-215-WRX Loudspeakers with Extreme weather protection

SKU: PD743i215WRX
Call For Price
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Maximum SPL of 143 dB\n Impactful low-frequency performance\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Maximum SPL of 143 dB

  • Impactful low-frequency performance


Introducing the PD743i-215-WRX Precision Directivity loudspeaker - your ultimate solution for delivering impactful sound reinforcement even at remarkable throw distances that were once challenging for standard single-driver setups. With its advanced engineering, this single module achieves an impressive continuous output of over 104 dB SPL at expansive distances of 50 meters (165 feet).

The PD743i-215-WRX redefines the limits of sound projection, allowing you to cover extensive areas with uncompromised audio quality. Designed for versatility, it seamlessly integrates into clusters alongside other PD family modules or stands confidently on its own as a key component of a dynamic distributed sound system. Unleash the power of precision directivity and elevate your sound experience with the PD743i-215-WRX. Crafted from durable Birch Plywood, the JBL PD743i-215-WRX boasts a robust construction that ensures both reliability and exceptional sound quality.












Experience a wide frequency range that extends from 36.5 Hz to 19.5 kHz, allowing you to capture the full spectrum of audio with impressive clarity.

With a frequency response of 42 Hz to 18.5 kHz and a remarkable ±3 dB accuracy, the PD743i-215-WRX guarantees a balanced and true-to-source sound reproduction.

Elevate your sound experience with a staggering maximum SPL of 143 dB, providing the power you need to command any space.

At its core, the PD743i-215-WRX maintains a minimum frequency response of 42 Hz, delivering a rich and impactful low-frequency performance that sets the stage for a remarkable audio journey.











Is This Right For You?


Recommendation


JBL PD743i-215-WRX Loudspeakers with Extreme weather protection
JBL

JBL PD743i-215-WRX Loudspeakers with Extreme weather protection

Call For Price

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<table class="specs">
<tbody>
<tr>
<td class="name">Frequency Range (-10dB)</td>
<td>36.5 Hz to 19.5 kHz</td>
</tr>
<tr>
<td class="name">Frequency Response (±3 dB)</td>
<td>42 Hz - 18.5 kHz</td>
</tr>
<tr>
<td class="name">Coverage Pattern</td>
<td>40° x 30°</td>
</tr>
<tr>
<td class="name">Directivity Index (DI)</td>
<td>16 dB</td>
</tr>
<tr>
<td class="name">System Sensitivity (1w @ 1m)</td>
<td>LF: 103 dB SPL; Passive Mid-High: 111 dB SPL</td>
</tr>
<tr>
<td class="name">Maximum SPL (1m)</td>
<td>LF - 141 dB Peak; MHF - 143 dB Peak</td>
</tr>
<tr>
<td class="name">Transducer Power Rating (AES)</td>
<td>LF - 1000 W (4000 W Peak); MHF - 400 W (1600 W Peak)</td>
</tr>
<tr>
<td class="name">Crossover</td>
<td>Bi-Amp with passive mid/high crossover (Tri-Amp optional)</td>
</tr>
<tr>
<td class="name">Crossover Frequencies</td>
<td>220 Hz, 1.2 kHz</td>
</tr>
<tr>
<td class="name">DSP</td>
<td>Custom DSP for Crown ITHD and IT4x3500HD amplifiers</td>
</tr>
<tr>
<td class="name">LF Driver</td>
<td>2 x JBL 2265H 380 mm (15 in) Diferential Drive driver with 75 mm (3 in) dual voice coil</td>
</tr>
<tr>
<td class="name">MF Driver</td>
<td>2 x JBL CMCD-82H midrange driver with 200 mm (8 in) diameterDifferential Drive® dual 75 mm (3 in) voice coil</td>
</tr>
<tr>
<td class="name">HF Driver</td>
<td>2 x JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil</td>
</tr>
<tr>
<td class="name">Nominal Impedance</td>
<td>LF: 4 ohms MF: 4 ohms HF: 16 ohms</td>
</tr>
<tr>
<td class="name">Enclosure</td>
<td>Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood</td>
</tr>
<tr>
<td class="name">Enclosure WRC/WRX Version</td>
<td>For direct exposure or extreme environments, berglassed with stainless steel hardware</td>
</tr>
<tr>
<td class="name">Grille</td>
<td>Black powder coated zinc treated 14 gauge perforated steel with black foam backing</td>
</tr>
<tr>
<td class="name">Grille WRC/WRX Version</td>
<td>Three layer grille assy consisting of 16-gauge powder coated S.S., backed with O.C. foam and S.S. mesh</td>
</tr>
<tr>
<td class="name">Input Connector</td>
<td>NL4 for bi-amp operation or NL8 for tri-amp operation (optional)</td>
</tr>
<tr>
<td class="name">Input Connectors WRC/WRX Version</td>
<td>4 conductor 16 awg direct burial cable assy 20 length (or length TBD)</td>
</tr>
<tr>
<td class="name">Environmental</td>
<td>Available WRC/WRX Version: IP55</td>
</tr>
<tr>
<td class="name">Suspension Attachment</td>
<td>52 total points (12 top and bottom, 11 each side, 6 back), M10 threaded hardwar</td>
</tr>
<tr>
<td class="name">Dimensions (H x W x D)</td>
<td>991 mm x 991 mm x 1145.8 mm(39.0 x 39.0 x 45.1 in)</td>
</tr>
<tr>
<td class="name">Net Weight (each)</td>
<td>335 lbs (152 kg)</td>
</tr>
<tr>
<td class="name">Crossover Modes</td>
<td>Passive</td>
</tr>
<tr>
<td class="name">System Power Rating</td>
<td>LF - 1000 W (4000 W Peak);
MHF - 400 W (1600 W Peak) (AES rated)</td>
</tr>
<tr>
<td class="name">Nominal LF Driver Impedance</td>
<td>4 ohms</td>
</tr>
<tr>
<td class="name">Nominal MF Driver Impedance</td>
<td>4 ohms</td>
</tr>
<tr>
<td class="name">Nominal HF Driver Impedance</td>
<td>4 Ohms Passive Mid/High Crossover</td>
</tr>
</tbody>
</table>
