Product Summary


  • Sophisticated high-slope passive networks

  • Large-format Progressive Transition waveguides

  • High-frequency compression driver














Introducing the JBL Professional PD6212/66-WRC Passive Two-Way Full-Frequency Loudspeaker in a sleek light gray finish—a versatile and weather-resistant audio solution designed for professional installations. Ideal for a wide range of settings including performing arts facilities, theatrical sound design, auditoriums, houses of worship, live music venues, nightclubs, sports facilities, and theme parks, the PD6212/66-WRC is engineered to deliver exceptional sound quality even in outdoor environments.

With an impressive IP55 weather-resistant rating, the PD6212/66-WRC is built to thrive in outdoor placements while being sheltered from direct exposure to the elements. This makes it well-suited for locations with potential challenges like varying temperature extremes, salt air, high humidity, and rapid changes in weather conditions.

At the heart of the PD6212/66-WRC is a powerful combination of components, including the JBL M222-8A 12" low-frequency driver with a 3" voice coil, and the remarkable 2453H 1.5" exit high-frequency compression driver with a 4" voice coil. To ensure maximum durability and longevity in outdoor environments, all drivers and components have been treated with a specialized urethane coating, providing water resistance and protection against the elements.

The PD6212/66-WRC boasts large-format PT Progressive Transition waveguides, offering an expansive 60x60° coverage for both high and low frequencies. These waveguides are not only ideal for delivering consistent pattern control but are also fully rotatable, enabling you to optimize the speaker's orientation for the best sound projection.

The speaker's sophisticated high-slope passive networks minimize band overlap for a seamlessly integrated audio experience. Additionally, the well-controlled off-axis response enhances the arrayability of the speakers, giving you the freedom to create your desired sound setup.

For added convenience, the PD6212/66-WRC includes a sealed gland nut and a permanently attached 20' captive jacketed cable. This cable, though unterminated, is resistant to UV radiation, ozone, and water, making it an ideal solution for outdoor installations.

In summary, the JBL Professional PD6212/66-WRC Passive Two-Way Full-Frequency Loudspeaker in light gray is a rugged yet versatile audio solution that excels in both indoor and outdoor settings. With its weather-resistant design and exceptional performance, this loudspeaker is sure to elevate your sound experience across a variety of professional installations.











JBL PD6212/66-WRC 12" Weather Resistant Passive Two-Way Full-Frequency Loudspeaker (Gray)

SKU: PD621266WRC | UPC: 691991014673
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL PD6212/66-WRC 12" Weather Resistant Passive Two-Way Full-Frequency Loudspeaker (Gray) Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Sophisticated high-slope passive networks</li>\n <li>Large-format Progressive Transition waveguides</li>\n <li>High-frequency compression driver</li>\n</ul>

Technical Details

Specifications

General
Enclosure Type
Horn / Folded Horn Loudspeaker
Total Power Capacity
Passive: 1200 W Peak (at 8 Ohms) Bi-Amp: 1600 W Peak 300 W Peak
System Impedance
1 x 8 Ohms (Nominal)
Drivers
HF Driver
1 x 1.5" / 38.1 mm Rotatable Horn Titanium Compression Driver with 1.5" / 38.1 mm Throat
HF Voice Coil
4" / 101.6 mm
LF Driver
1 x 12" / 304.8 mm Woofer
LF Voice Coil
3" / 76.2 mm
Magnet
Neodymium
Performance
Frequency Range
80 Hz to 18 kHz -10 dB
Frequency Response
90 Hz to 16 kHz ±3 dB
Maximum SPL
138 dB SPL (Passive) 141 dB SPL (MF, Bi-Amp) 141 dB SPL (HF, Bi-Amp)
Coverage Angle
60° H x 60° V (Rotatable Horn)
Directivity
13.5 dB (Directivity Index) 22.4 dB (Directivity/Q Factor)
Speaker Sensitivity
Passive: 107 dB SPL Bi-Amp: 109 dB SPL Bi-Amp: 116 dB SPL
Connectivity
Audio I/O
1 x speakON NL4 Speaker Input (Lockable) 1 x Barrier Strip Speaker Input/Thru
Physical
Mounting
20 x M10 (Bottom, Each Side, Rear, Top)
Environmental Protection
None
Construction Material
Metal Grille, Plywood

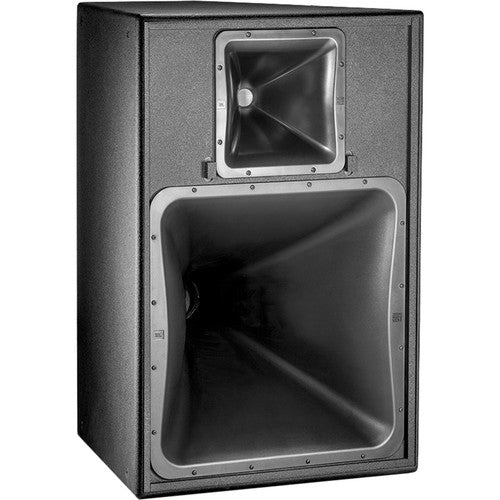

JBL PD621266-WRC Weather Resistant Passive Two-Way Full-Frequency Loudspeaker (Gray)
