Product Summary


  • Switchable bi-amp/passive crossover modes

  • Large PT Progressive Transition waveguides

  • Powered by a high-power 8" dual-coil CMCD

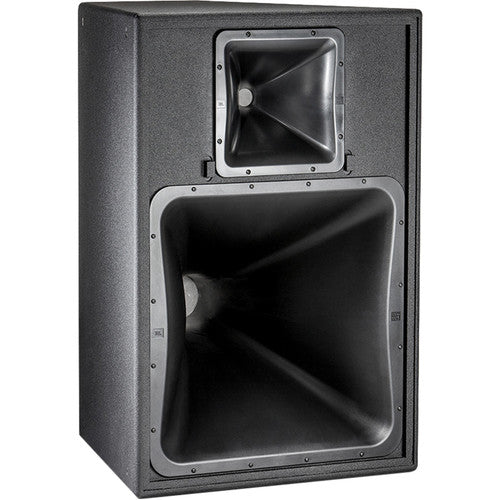

Introducing the sleek and versatile JBL Professional PD6200/64 Passive/Biamp Two-Way Mid-/High-Frequency Loudspeaker. This powerhouse is designed to excel in professional installations, making it an ideal choice for an array of venues including performing arts facilities, auditoriums, houses of worship, live music venues, nightclubs, sports facilities, and theme parks.

At its heart, the PD6200/64 features the impressive JBL CMCD-82H cone midrange compression driver, seamlessly integrated with an 8" diameter Differential Drive dual voice coil driver, alongside the 2432H, 1.5" exit high-frequency compression driver. This combination delivers a remarkable sonic experience. The innovation continues with the two PT Progressive Transition waveguides, ensuring a broad 60x40° coverage that's adaptable in both vertical and horizontal orientations.

With an emphasis on precision, the PD6200/64 minimizes band overlap through its high-slope passive networks, resulting in controlled off-axis response that enhances array performance. This speaker effortlessly transitions between bi-amped and passive configurations with a simple switch, offering the best of both worlds.

The PD6200/64 is powered by a high-power 8" dual-coil CMCD cone midrange compression driver, ensuring not only high sensitivity but also continuous SPL capability with minimal distortion, extended bandwidth, and improved phase coherence. The large-format neodymium HF driver guarantees crystal-clear, intelligible high-frequency projection, enhancing the overall audio experience.

Bringing you impeccable sound control, the large PT Progressive Transition waveguides provide consistent 60x40° pattern control, ensuring minimal distortion even at high SPL levels, and delivering a smooth frequency response that captivates listeners. For ultimate adaptability, the mid- and high-frequency waveguides are rotatable, allowing seamless shifts between horizontal and vertical cabinet orientations.

Completing this audio marvel is a sophisticated steep-slope passive crossover network with switchable bi-amp/passive crossover modes, giving you the freedom to tailor the sound according to your preferences.

In summary, the JBL Professional PD6200/64 is your go-to solution for exceptional audio in diverse professional settings. Experience the power of precision, versatility, and immersive sound with the PD6200/64 Loudspeaker.











JBL PD6200/64-WRC Passive/Biamp Two-Way Mid-/High-Frequency Loudspeaker (Black)

SKU: PD620064WRC | UPC: 691991014536
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL PD6200/64-WRC Passive/Biamp Two-Way Mid-/High-Frequency Loudspeaker (Black) Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Switchable bi-amp/passive crossover modes</li>\n <li>Large PT Progressive Transition waveguides</li>\n <li>Powered by a high-power 8" dual-coil CMCD</li>\n</ul>

Technical Details

Specifications

General
Enclosure Type
Horn / Folded Horn Loudspeaker
Total Power Capacity
Passive: 1200 W Peak (at 8 Ohms) Bi-Amp: 1400 W Peak 300 W Peak
System Impedance
1 x 8 Ohms (Nominal)
Drivers
HF Driver
1 x 1.5" / 38.1 mm Rotatable Horn Compression Driver with 1.5" / 38.1 mm Throat
HF Voice Coil
3" / 76.2 mm
MF Driver
1 x 8" / 203.2 mm Paper Cone Compression Driver
Magnet
MF: Neodymium
Performance
Frequency Range
200 Hz to 18 kHz -10 dB
Frequency Response
240 Hz to 16 kHz ±3 dB
Maximum SPL
141 dB SPL (Passive) 141 dB SPL (MF, Bi-Amp) 141 dB SPL (HF, Bi-Amp)
Coverage Angle
60° H x 40° V (Rotatable Horn)
Directivity
13.5 dB (Directivity Index) 22.4 dB (Directivity/Q Factor)
Speaker Sensitivity
Passive: 110 dB SPL Bi-Amp: 110 dB SPL Bi-Amp: 116 dB SPL
Connectivity
Audio I/O

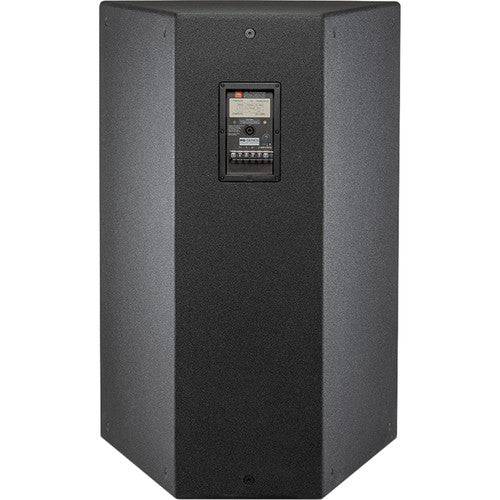

1 x 4-Core Cable NL4 Speaker Input (Lockable) 1 x Barrier Strip Speaker Input/Thru
Physical
Mounting
20 x M10 (Bottom, Each Side, Rear, Top)
Environmental Protection
None
Construction Material
Metal Grille, Plywood
Dimensions
39 x 26.5 x 27.8" / 990.6 x 673.1 x 706.1 mm
Weight
130 lb / 59 kg
