Product Summary


  • Can handle the challenges of outdoor placement

  • Superior phase coherence

  • Expansive PT Progressive Transition waveguide










Introducing the Light Gray JBL Professional PD6200/43-WRX: Your All-Weather Audio Solution

The PD6200/43-WRX Passive Two-Way Mid-/High-Frequency Loudspeaker from JBL Professional is a versatile marvel, engineered to excel in professional installations spanning a diverse range of environments. Whether it's a performing arts facility, auditorium, house of worship, live music venue, night club, sports facility, or even a theme park, the PD6200/43-WRX steps up with precision. Its IP56 environmental rating assures outdoor durability, where exposure to elements or extreme conditions such as tropical climates, beach areas, or fluctuating temperatures are par for the course.

Key Features at a Glance:

  • Built to Brave the Elements: With an IP56 rating, the PD6200/43-WRX can handle the challenges of outdoor placement with confidence, effortlessly tackling high or low temperatures, salt air, humidity, and rapid temperature shifts.

  • Engineering Excellence: Comprising the advanced JBL CMCD-82H cone midrange compression driver with an integral 8" diameter Differential Drive dual voice coil driver, along with the 2432H 1.5" exit high-frequency compression driver, this speaker guarantees high sensitivity, low distortion, and superior phase coherence. All drivers and components are coated with urethane for water resistance.

  • Impeccable Waveguides: The PD6200/43-WRX features the expansive PT Progressive Transition waveguide, providing a consistent 40x30 coverage for impeccable audio dispersion. High-slope passive networks ensure minimal band overlap, enhancing arrayability for any setup.

  • Ready for Anything: Boasting a sealed gland nut and an attached 20' captive jacketed cable, resistant to UV, ozone, and water, this speaker is engineered to withstand the toughest conditions while delivering outstanding audio quality.


Experience audio excellence, rain or shine, with the JBL Professional PD6200/43-WRX. Where versatility meets performance, and where every note resonates with unwavering clarity and impact.







JBL PD6200/43-WRX Weather Resistant Passive Two-Way Mid-/High-Frequency Loudspeaker (Gray)

SKU: PD620043
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$6,260.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
JBL PD6200/43-WRX Weather Resistant Passive Two-Way Mid-/High-Frequency Loudspeaker (Gray) $6,260.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Can handle the challenges of outdoor placement</li>\n <li>Superior phase coherence</li>\n <li>Expansive PT Progressive Transition waveguide</li>\n</ul>

Technical Details

Specifications

General
Enclosure Type
Horn / Folded Horn Loudspeaker
Total Power Capacity
Passive: 1200 W Peak (at 8 Ohms) Bi-Amp: 1400 W Peak 300 W Peak
System Impedance
1 x 8 Ohms (Nominal)
Drivers
HF Driver
1 x 1.5" / 38.1 mm Rotatable Horn Compression Driver with 1.5" / 38.1 mm Throat
HF Voice Coil
3" / 76.2 mm
MF Driver
1 x 8" / 203.2 mm Paper Cone Compression Driver
Magnet
MF: Neodymium
Performance
Frequency Range
200 Hz to 18 kHz -10 dB
Frequency Response
240 Hz to 16 kHz ±3 dB
Maximum SPL
142 dB SPL (Passive) 143 dB SPL (MF, Bi-Amp) 141 dB SPL (HF, Bi-Amp)
Coverage Angle
40° H x 30° V (Rotatable Horn)
Directivity
16 dB (Directivity Index) 24.1 dB (Directivity/Q Factor)
Speaker Sensitivity
Passive: 111 dB SPL Bi-Amp: 112 dB SPL Bi-Amp: 116 dB SPL
Connectivity
Audio I/O

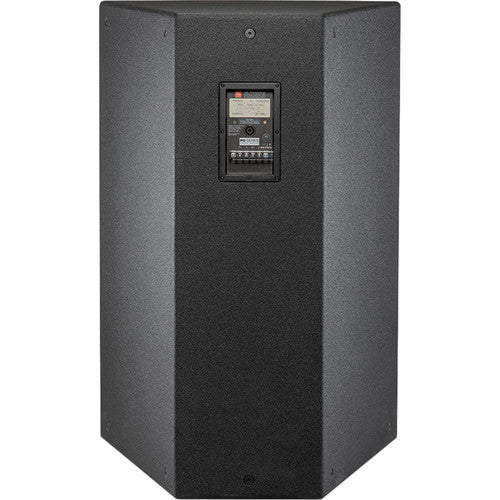

1 x speakON NL4 Speaker Input (Lockable) 1 x Barrier Strip Speaker Input/Thru
Physical
Mounting
20 x M10 (Bottom, Each Side, Rear, Top)
Environmental Protection
None
Construction Material
Metal Grille, Plywood
