Product Summary


  • Built-in 2-channel digital mixer

  • Wide frequency response

  • 18-inch custom-designed woofer














Introducing the JBL EON718S 18-inch Powered Subwoofer

Since its inception in 1995, JBL's acclaimed EON series has consistently redefined the benchmarks for excellence in powered loudspeaker systems.

The JBL EON718S, boasting a commanding 18-inch custom-engineered woofer, proudly stands as an integral part of the groundbreaking EON700 Series of powered PAs. This series represents a significant stride forward in innovation and technology, offering intelligible and consistent coverage at any volume level, setting a new standard in sound reproduction.

The EON700 Series capitalizes on the latest advancements in acoustic science, transducer designs, cabinet materials, and advanced DSP (Digital Signal Processing) and control technologies. The result is an unparalleled level of performance, packaged within a fully professional, highly flexible, user-friendly, and portable system.

Featuring a comprehensive range of four models, including the 10-inch EON710, the potent 12-inch EON712, the commanding 15-inch EON715 powered PA speakers, and the thunderous 18-inch EON718S subwoofer, the EON700 series is tailored to meet the diverse needs of today's working musicians and sound providers.

(Note: JBL EON718S Pro Connect App support is expected in April 2022, pending App Store / Google Play Store approval.)

Key Features:

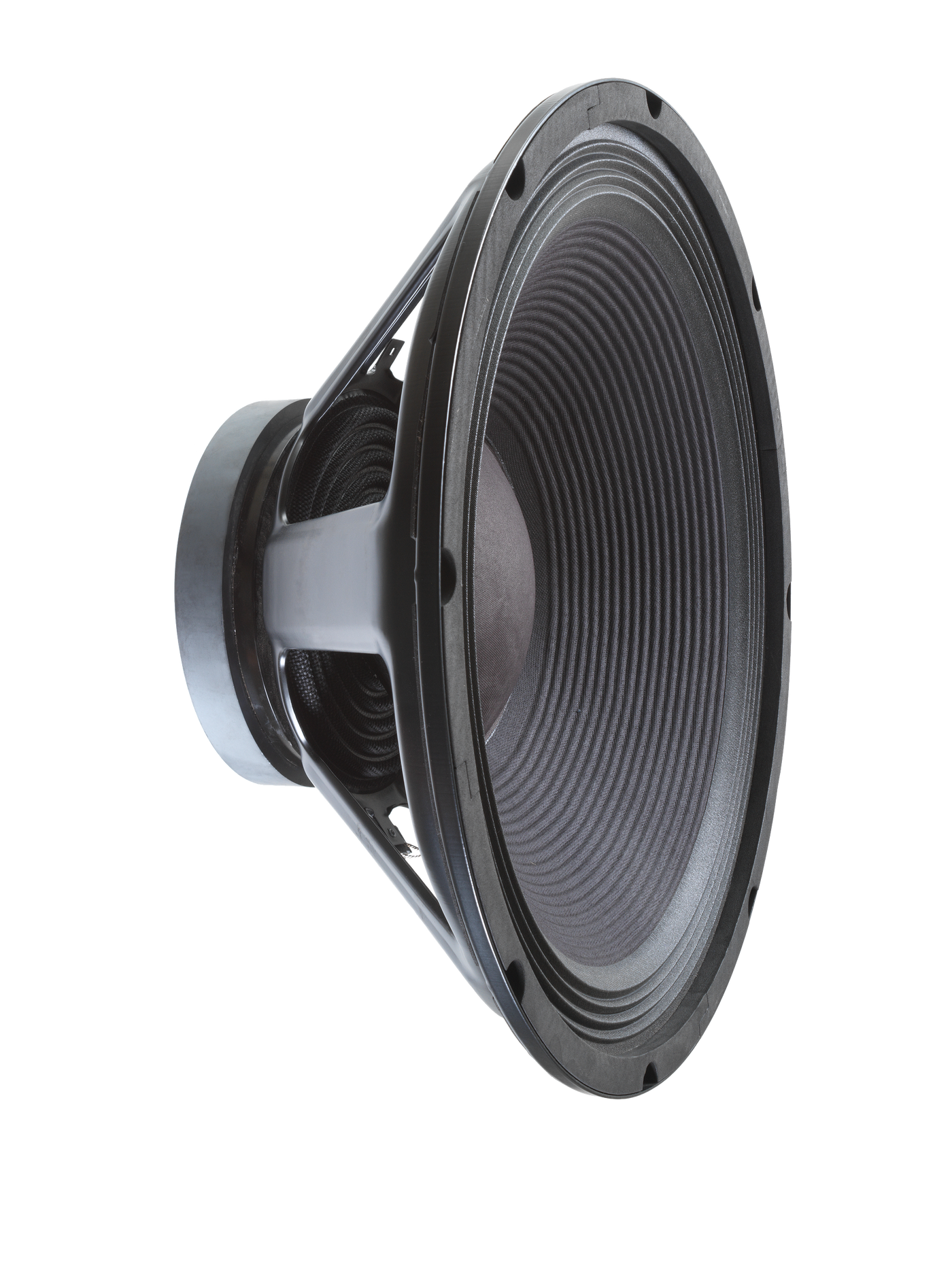

  • Precision-engineered 18-inch custom-designed woofer for unparalleled low-frequency performance.

  • Robust power: 1,500W peak / 750W RMS for deep, impactful bass.

  • Wide frequency response: 31–150 Hz (-10 dB); 40–120 Hz (-3 dB) for extended sub-bass reproduction.

  • Max SPL of 131 dB for thunderous, room-shaking bass.

  • Audio I/Os: 2 XLR Combo inputs, 2 XLR loop-outs for versatile connectivity.

  • Advanced dbx DSP with features like Parametric EQ, polarity inversion, and speaker delay for precise sound optimization.

  • Built-in 2-channel digital mixer for seamless audio control.

  • Color backlit LCD screen for intuitive access to functions.

  • Sturdy birch plywood cabinet with patented DuraFlex finish and rugged metal grille for long-lasting durability.

  • Enjoy the convenience of Universal JBL Pro Connect app control using powerful BLE (Bluetooth Low Energy) technology.

  • Ergonomic handles simplify transport, even for large-scale setups.

  • Built-in threaded pole mount expands system configuration possibilities.

  • Stackable cabinets simplify cardioid configurations and equipment storage.

  • Dimensions: 26.3 x 24 x 25.1 inches (667 x 609 x 637 mm) (HxWxD).

  • Weight: 81.5 pounds (37 kg).

  • Shipping dimensions: 29.6 x 28.42 x 29.3 inches (744 x 722 x 752 mm) (HxWxD).

  • Convenient shipping weight: 94.4 pounds (42.8 kg).


Elevate your sound to a whole new level with the JBL EON718S 18-inch Powered Subwoofer. Whether you're a musician, sound professional, or audio enthusiast, this subwoofer delivers the kind of deep, immersive bass that will elevate your music and events. Stay tuned for the upcoming JBL EON718S Pro Connect App support, expected in April 2022, to further enhance your control and performance capabilities. For more detailed specifications, please continue reading.











JBL EON718S-NA 18-inch Powered PA Subwoofer

SKU: JBLEON718sNA | UPC: 691991035036
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,199.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
JBL EON718S-NA 18-inch Powered PA Subwoofer $1,199.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Built-in 2-channel digital mixer</li>\n <li>Wide frequency response</li>\n <li>18-inch custom-designed woofer</li>\n</ul>

Technical Details

Specifications

General
System Type 18IN Powered Subwoofer
Woofer Model 718G
Woofer Size 18"
Woofer Magnet Ferrite
Woofer Voice Coil 3"
Transducer Impedence 4 ohm rated
Max SPL 131dB @1m/2Pi
Freq Range -10 31Hz - 150Hz
Freq Range -3 40Hz -120Hz
Hor Dispersion Omni
Vert Dispersion Omni
Crossover Frequency 80, 100, 120Hz selectable
Power Rating 1500W Peak Power 1500W Peak / 750W RMS
AC power input 100V-120V or 220V-240V
Cooling Passive
LED indicators 1 Power LED, 1 System Limit, 1 Front LED
Input Impedance 50k/100k un-balanced/balanced
Input Gain -∞to +36db
I/O 2 XLR Combo 2 XLR M Thru
Cabinet 18mm Duraflex-coated Birch Plywood
Grille 16GA perforated steel with acoustically transparent black cloth backing
Suspension / Mounting 1 M20 Threaded Polecup
Handles 2
Net Weight 35.5kg (78.26 in.)
Gross Weight 42.5kg (93.70 in.)
Product Dims HxWxL 674x609x637mm (26.54x23.98x25.08 in.)
Shipping Dims HxWxL 722x743x713mm (28.43x29.25x28.07 in.)
