Product Summary


  • 1,300W peak / 650W RMS

  • Wide frequency response

  • Custom-engineered 10-inch woofer

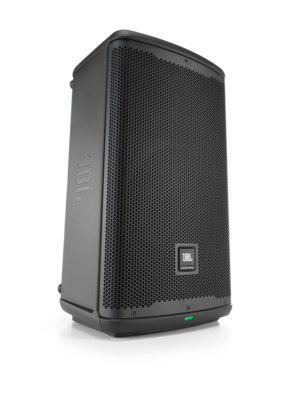

Introducing the JBL EON710 10-inch Powered PA Speaker with Bluetooth

Since its debut in 1995, JBL's renowned EON series has consistently raised the bar for powered loudspeaker systems. The JBL EON710, a 10-inch powerhouse, proudly joins the latest EON700 Series, marking a significant leap in innovation and audio technology. Our dedicated team of engineers employed cutting-edge design and measurement techniques to create speakers that stand out as the pinnacle of their category, regardless of the application.

The EON700 Series harnesses the most up-to-date acoustic science, transducer designs, cabinet materials, and advanced DSP (Digital Signal Processing) and control technologies. The result is nothing short of extraordinary performance in a versatile, professional-grade, and easily portable system.

With a range of four models available, including the EON710 with its 10-inch custom-designed woofer, the EON712 with a 12-inch driver, the EON715 featuring a 15-inch powerhouse, and the EON718S subwoofer with an 18-inch driver, the EON700 series is ready to meet the demands of today's musicians and sound providers.

Key Features:

  • Custom-engineered 10-inch woofer for exceptional sound quality.

  • Precision 2414H compression driver for crisp highs.

  • Redesigned high-frequency horn for optimal dispersion.

  • Power: 1,300W peak / 650W RMS for robust performance.

  • Wide frequency response: 52 Hz–20 kHz (-10 dB); 65 Hz–20 kHz (-3 dB).

  • Impressive Max SPL: 125 dB for room-filling sound.

  • Precise dispersion: 110° H x 60° V for excellent coverage.

  • Versatile Audio I/Os: 2 XLR Combo inputs, 1 XLR passthrough.

  • Advanced dbx DSP: Featuring Automatic Feedback Suppression, ducking, 100ms speaker delay, and parametric EQ.

  • Built-in 3-channel digital mixer for seamless control.

  • Backlit color LCD screen provides intuitive access to functions.

  • Universal JBL Pro Connect app control for ultimate convenience.

  • Enjoy Bluetooth 5.0 streaming and control for added versatility.

  • Robust construction: Talc-reinforced polypropylene cabinet and sturdy metal grille.

  • Ergonomic handle simplifies transport for gigging professionals.

  • Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options.

  • Stackable cabinets for effortless storage.

  • Dimensions: 23.11 x 13.07 x 11.81 inches (587 x 332 x 300 mm) (HxWxD).

  • Lightweight at 26.2 pounds (11.9 kg).

  • Shipping dimensions: 24.72 x 17.63 x 16.37 inches (628 x 448 x 416 mm) (HxWxD).

  • Convenient shipping weight: 33.1 pounds (15 kg).


Experience unparalleled audio performance and versatility with the JBL EON710 10-inch Powered PA Speaker. Whether you're a musician or a sound professional, this speaker is your ultimate companion for delivering exceptional sound experiences at any venue.







JBL EON710-NA 10-inch Powered PA Speaker with Bluetooth

SKU: JBLEON710NA | UPC: 691991035180
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$519.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
JBL EON710-NA 10-inch Powered PA Speaker with Bluetooth $519.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>1,300W peak / 650W RMS</li>\n <li>Wide frequency response</li>\n <li>Custom-engineered 10-inch woofer</li>\n</ul>

Technical Details

Specifications

General
System Type 10IN Powered Loudspeaker
Woofer Model 710G
Woofer Size 10"
Woofer Magnet Ferrite
Woofer Voice Coil 2"
Tweeter Model 2414H Compression Driver
Tweeter Size 1"
Tweeter Magnet Neodymium
Transducer Impedence LF 4ohm rated, HF 8ohm rated
Max SPL 125dB @1m/4Pi
Freq Range -10 52Hz - 20kHz
Freq Range -3 65Hz - 20kHz
Hor Dispersion 110°
Vert Dispersion 60°
Power Rating 1300W peak / 650 RMS
AC power input 100V-120V or 220V-240V
Cooling Passive
LED indicators 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs
Input Impedance 50k/100k un-balanced/balanced
Input Gain -∞ to +36db
Crossover Frequency 2 kHz
I/O 2 XLR Combo Jacks / BT 1 XLR M Thru
Cabinet PP+10% Talc
Grille 16GA perforated steel with acoustically transparent black cloth backing
Suspension / Mounting 4 M10 Suspension points, 36mm Pole Socket, Universal yoke bracket holes
Handles 1, Cable channel on bottom
Net Weight 12kg (26.46 lbs.)
Gross Weight 15.2kg (33.51 lbs.)
