Product Summary


  • Progressive Transition Waveguide

  • Unmatched Power and Precision

  • Unparalleled Versatility


Elevate Your Sound with the JBL AM7215 Speakers

Introducing the JBL AM7215 speakers – a pinnacle of audio innovation that delivers exceptional sound quality and versatility. These high-power, lightweight, 2-way, full-range loudspeaker systems are meticulously engineered to provide an unmatched auditory experience across various settings. Whether you're in a grand auditorium, a pulsating dance club, or any other venue, the AM7215 speakers will immerse you in a sonic journey like no other.

Key Features:

  • Unmatched Power and Precision: At the core of the AM7215 speakers lies the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and the 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. This dynamic duo delivers powerful bass and pristine highs that capture every sonic detail.

  • Progressive Transition Waveguide: The large format Progressive Transition (PT) waveguide ensures impeccable coverage, creating an immersive sound experience. With a 60° x 60° coverage, the AM7215 speakers fill your space with rich, balanced audio.

  • Unparalleled Versatility: The rotatable waveguide allows you to seamlessly switch between vertical and horizontal orientations, adapting effortlessly to your venue's layout. Your sound direction, your choice.


Applications:

  • Performing Arts Facilities: Transform live performances into captivating sonic masterpieces.

  • Auditoriums: Deliver crystal-clear audio for engaging presentations and performances.

  • Worship Facilities: Create a spiritual atmosphere through pristine, reverberating sound.

  • Live Clubs and Dance Floors: Energize the crowd with powerful, immersive soundscapes.

  • Sports Facilities: Amplify the excitement with audio that resonates through every corner.

  • Themed Entertainment Venues: Envelop visitors in immersive soundscapes that enhance the experience.


The AM7215 speakers excel in precision, thanks to their high-slope passive networks, which meticulously manage frequency overlap to ensure each note shines with exceptional clarity. Their well-controlled off-axis response enhances arrayability, giving you creative freedom over your sound configuration.

Crafted with precision, the AM7215 speakers feature a multi-ply birch enclosure coated in JBL's signature DuraFlex finish. This thoughtful design, combined with a trapezoid shape, maximizes low-frequency performance while ensuring durability. With fifteen M10 threaded attachment points for easy setup and a 14-gauge steel grille internally lined with acoustically transparent foam, the AM7215 speakers offer both functionality and a polished appearance.

Whether you choose bi-amped or passive operation modes, the AM7215 speakers adapt seamlessly to your sound amplification needs, ensuring seamless integration into any audio setup.

The JBL AM7215 speakers embody JBL's commitment to excellence, merging advanced technology, adaptable design, and meticulous craftsmanship to transport you into an auditory realm of unparalleled beauty. From concert halls to worship centers and beyond, the AM7215 speakers transform sound into an art form, delivering an immersive experience that captivates and transports.

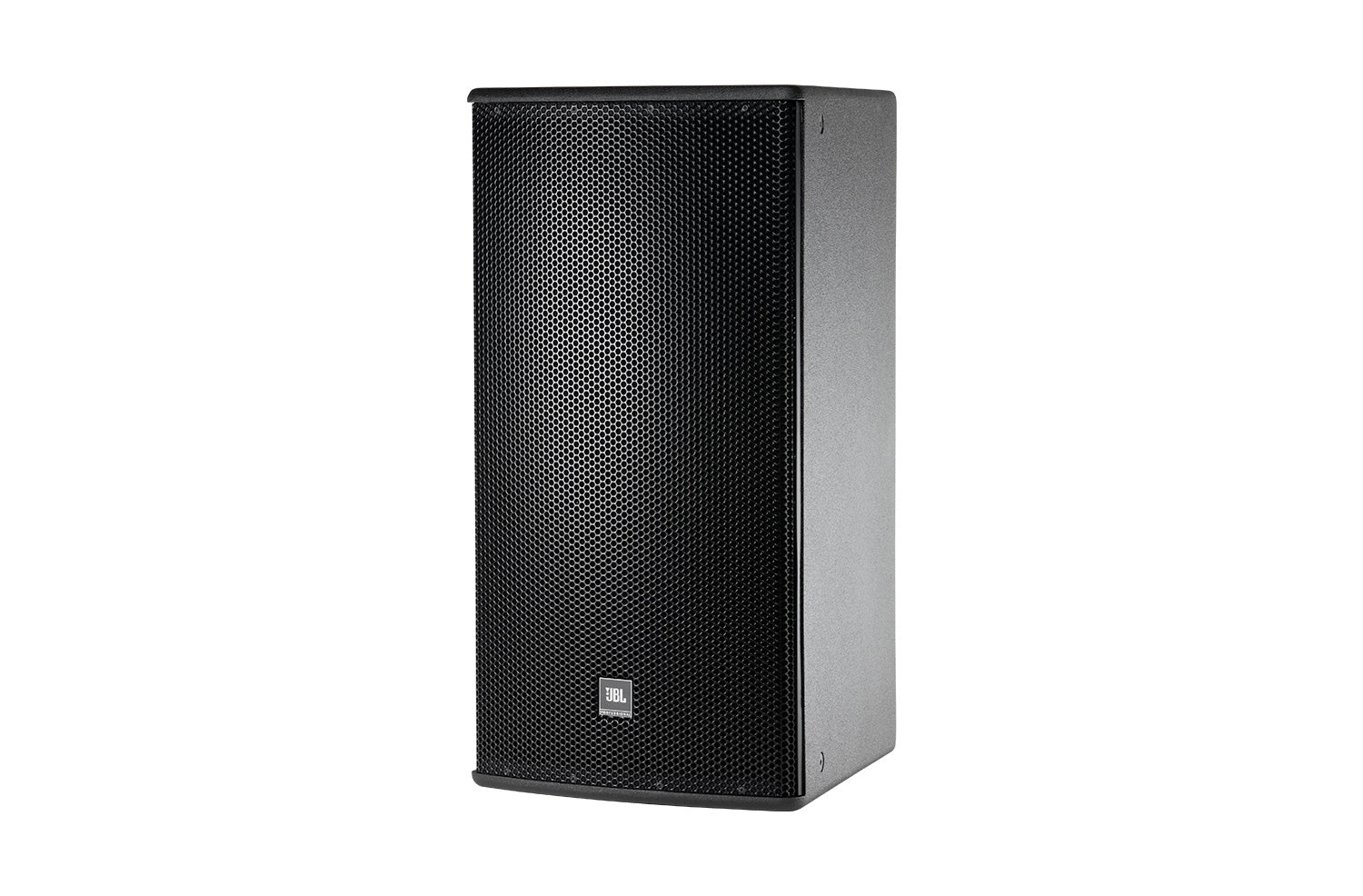

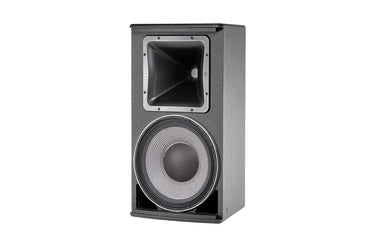

JBL AM7215/66-WRX High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn

SKU: AM721566WRX | UPC: 691991011528
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL AM7215/66-WRX High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Progressive Transition Waveguide</li>\n <li>Unmatched Power and Precision</li>\n <li>Unparalleled Versatility</li>\n</ul>

Technical Details

Specifications

General
Active or Passive
Passive
Low Frequency Driver
1 x JBL 2265H 15" (381 mm) Differential Drive driver with 3" (75 mm) dual voice coil Nominal Impedance: 8 ohms Sensitivity: 98 dB SPL (1W @ 1m, within operational band)
High Frequency Driver
JBL 2432H, 1.5" (38 mm ) exit compression driver, 3" (75 mm ) voice coil Nominal Impedance: 8 ohms Sensitivity: 114 dB SPL (1W @ 1m)
Frequency Range
34 Hz to 20 kHz (-10 dB)
Frequency Response ± 3dB
40 Hz to 18 kHz
Coverage Pattern
60 x 60°
Coverage Modes
Bi-amp / Passive switchable
Directivity Factor
14.5 dB (Q)
Directivity Index
11.6 dB
Crossover Point
1.4 kHz (Passive)
Transducer Power Rating
LF: 1000 W (4000 W peak), 2 hrs 750 W (3000 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs
Long-Term System Power Rating
Passive mode: 600 W (2400 W peak), 100 hrs (IEC)
Maximum SPL
Bi-amp Mode: LF: 128 dB cont avg (134 dB peak) HF: 134 dB cont avg (140 dB peak) Passive Mode: 124 dB cont avg (130 dB peak)
System Sensitivity
Passive mode: 124 dB dB SPL (1W @ 1m)
Horn Waveguide
PT-H66HF-1
Enclosure Material
Trapezoidal with 15 degree side angles, 5/8" (16 mm) exterior grade 11-ply Finnish birch plywood
Suspension Attachment
15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish
Black DuraFlex finish
Grille
Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connection Type
NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 0.2 sq" (5.2 sq mm)(10 AWG) wire or max width .375" (9 mm) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifcations
Mil-Std 810; IP-x3 per IEC529
Dimensions
30.8 16.5 19.8" (781 x 420 x 503 mm)
Weight
60 lb (27.2 kg)
