Product Summary


  • 60° x 40° Coverage

  • Immersive Sound

  • Weather-Resistant Design

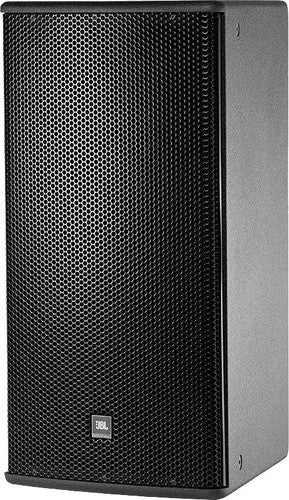

Experience Unparalleled Audio Performance with the JBL AM7212/64-WRC Weather-Resistant Speaker

Introducing the JBL AM7212/64-WRC, a testament to the fusion of advanced technology and exceptional design. This lightweight, 2-way high-power loudspeaker system sets new standards in sound quality and versatility, making it the perfect choice for a range of applications.

Key Features:

  • Weather-Resistant Design: Built to withstand the elements, the AM7212/64-WRC offers moderate weather resistance. It's ideal for outdoor placement in environments where shelter from direct exposure to the elements is available.

  • Immersive Sound: Elevate your audio experience with the JBL Differential Drive dual voice coil and dual magnetic gap 2262H-1 12" low-frequency driver, and the 2432H-1 high-frequency 1.5" exit 3" voice-coil compression driver. Immerse yourself in precision and power.

  • 60° x 40° Coverage: The large format PT-H64HF-1 Progressive Transition waveguide provides a precise 60° x 40° coverage pattern, ensuring that every corner of your space resonates with exceptional sound.


Applications:

  • Perfect for Outdoor Environments

  • Ideal for Performing Arts Facilities

  • Theatrical Sound Design

  • Auditoriums

  • Worship Facilities

  • Live Clubs

  • Dance Clubs

  • Sports Facilities

  • Themed Entertainment Venues


Position the AM7212/64-WRC vertically or horizontally according to your needs, and rely on its high-slope passive network that minimizes band overlap, resulting in pristine sound quality. Its well-controlled off-axis response enhances arrayability, giving you flexibility in sound configuration.

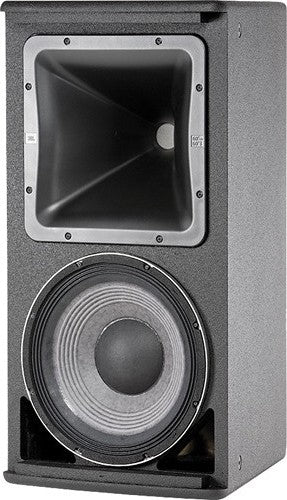

With a heavily braced trapezoid multi-ply birch enclosure featuring a DuraFlex finish, this speaker is designed to maximize low-frequency performance. The fifteen M10 threaded attachment points and a robust grille internally lined with acoustically transparent foam ensure the safety and longevity of your investment.

Joining the prestigious JBL AE Series, the AM7212/64-WRC is a versatile choice that caters to various applications. Whether you're setting the mood in an auditorium, enhancing the ambiance in a worship facility, or providing high-quality sound in an outdoor setting, the AM7212/64-WRC stands as a symbol of excellence in audio technology.

JBL AM7212/64-WRC High Power 2-Way Loudspeaker with 1 x 12" LF Driver and Rotatable Horn, 60° x 40° Coverage, WRC Weather Resistant Speaker - Black

SKU: AM721264WRC | UPC: 691991011368
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL AM7212/64-WRC High Power 2-Way Loudspeaker with 1 x 12" LF Driver and Rotatable Horn, 60° x 40° Coverage, WRC Weather Resistant Speaker - Black Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>60° x 40° Coverage</li>\n <li>Immersive Sound</li>\n <li>Weather-Resistant Design</li>\n</ul>

Technical Details

Specifications

General
Active or Passive
Passive
Low Frequency Driver
1 x JBL 2262H 12" (305 mm) Differential Drive driver with 3" (75 mm) dual voice coil Nominal Impedance: 8 ohms Sensitivity: 96 dB SPL (1W @ 1m, within operational band)
High Frequency Driver
JBL 2432H, 1.5" (38 mm ) exit compression driver, 3" (75 mm ) voice coil Nominal Impedance: 8 ohms Sensitivity: 115 dB SPL (1W @ 1m)
Frequency Range
36 Hz to 20 kHz (-10 dB)
Frequency Response ± 3dB
42 Hz to 18 kHz
Coverage Pattern
60 x 40°
Coverage Modes
Bi-amp / Passive switchable
Directivity Factor
16.7 dB (Q)
Directivity Index
12.3 dB
Crossover Point
1.8 kHz (Passive)
Transducer Power Rating
LF: 1000 W (4000 W peak), 2 hrs 700 W (2800 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs
Long-Term System Power Rating
Passive mode: 600 W (2400 W peak), 100 hrs (IEC)
Maximum SPL
Bi-amp Mode: LF: 126 dB cont avg (132 dB peak) HF: 135 dB cont avg (141 dB peak) Passive Mode: 123 dB cont avg (129 dB peak)
System Sensitivity
Passive mode: 123 dB dB SPL (1W @ 1m)
Horn Waveguide
PT-H64HF-1
Enclosure Material
Trapezoidal with 15 degree side angles, 5/8" (16 mm) exterior grade 11-ply Finnish birch plywood
Suspension Attachment
15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish
Black DuraFlex finish
Grille
Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connection Type
NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 0.2 sq" (5.2 sq mm)(10 AWG) wire or max width .375" (9 mm) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifcations
Mil-Std 810; IP-x3 per IEC529
Dimensions
28.0 x 14.5 x 18.0" (711 x 369 x 458 mm)
Weight
51 lb (23.1 kg)
