• JBL AL7115-WRX Single 15 Low-Frequency Speaker Module (Black)
  • JBL AL7115-WRX Single 15 Low-Frequency Speaker Module (Black) b
  • JBL AL7115-WRX Single 15 Low-Frequency Speaker Module (Black) r

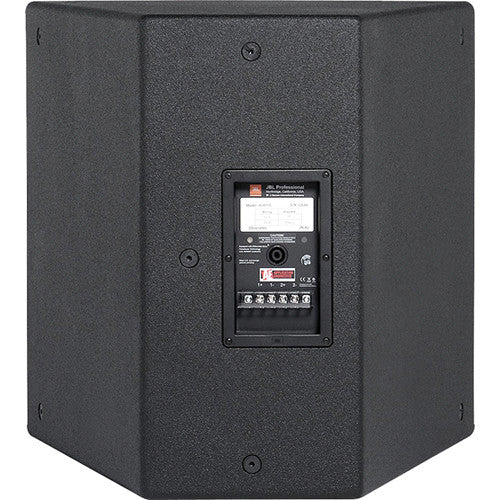

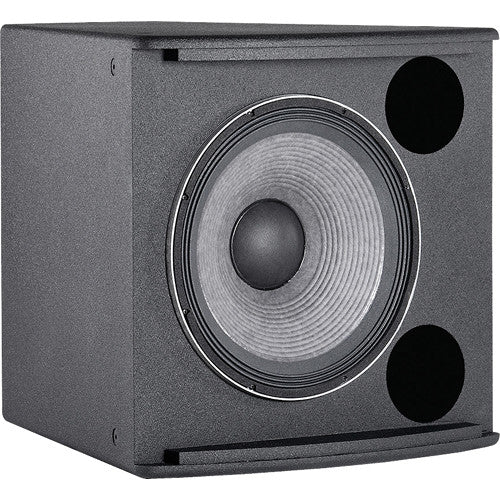

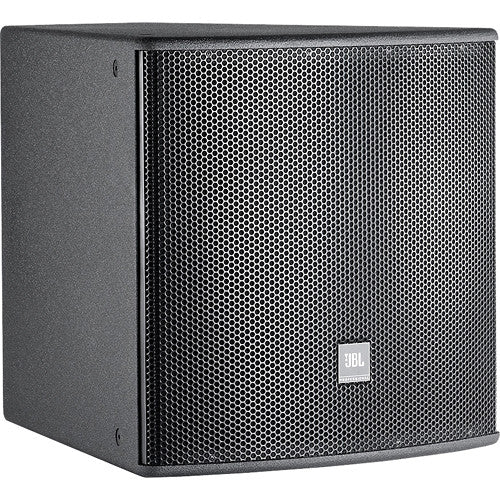

JBL AL7115-WRX Single 15" Low-Frequency Speaker Module (Black)

SKU: AL7115WRX  |  UPC: 691991010941
Call For Price
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Ample vent area\n 1 x 15" 2265H Differential Drive\n Equipped with the patented JBL 2265 HPL\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

  • Ample vent area

  • 1 x 15" 2265H Differential Drive

  • Equipped with the patented JBL 2265 HPL


Introducing the AL7115 Single 15" Low-Frequency Speaker Module in sleek black, a remarkable creation by JBL. This module comes equipped with the patented JBL 2265 HPL Differential Drive 15" transducer, showcasing a cutting-edge Differential Drive design with dual 3" voice coils and dual magnetic gaps. With a power rating of 1000 watts, this speaker is ingeniously crafted in a front-loaded, vented configuration. The trapezoidal cabinet is enhanced with M10 threaded suspension points, making array flying and mounting a breeze, with the added option of pre-engineered array bracketry.

As a distinguished member of JBL's AE Application Engineered Series, the AL7115 seamlessly adapts to a wide spectrum of applications. Designed to harmonize with the AM7200 models, it shines brightest in low-profile array setups, creating the ideal foundation for a comprehensive three-way system. When paired with the PAF-3K planar array frame kit (available separately), the AL7115 15" low-frequency speaker module finds its place between two AM7200 mid-high loudspeakers, resulting in a remarkable low-profile, three-wide array system.

Highlighted Features:

  • 1 x 15" 2265H Differential Drive Low-Frequency Driver

  • Ample vent area for exceptional output with minimal distortion

  • Compatibility with various AE Series mid-high frequency and compact 2-way models

  • Diverse applications, including:

    • Performing arts facilities

    • Theatrical sound design

    • Auditoriums

    • Houses of worship

    • Live clubs

    • Dance-clubs/discotheques

    • Sports facilities

    • Themed entertainment venues




Elevate your sound experience with the AL7115 Single 15" Low-Frequency Speaker Module, designed to offer unmatched performance and adaptability across a wide array of venues and applications.

Is This Right For You?


Recommendation


JBL AL7115-WRX Single 15 Low-Frequency Speaker Module (Black)
JBL

JBL AL7115-WRX Single 15" Low-Frequency Speaker Module (Black)

Call For Price

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<table class="specs">
<tbody>
<tr>
<td class="name">Frequency Range (-10dB)</td>
<td>40 Hz – 4.2 kHz</td>
</tr>
<tr>
<td class="name">Frequency Response (±3 dB)</td>
<td>47 Hz - 3.0 kHz</td>
</tr>
<tr>
<td class="name">Transducer Power Rating (AES)</td>
<td>1000 W (4000 W peak), 2 hrs</td>
</tr>
<tr>
<td class="name">System Power Rating</td>
<td>600 W (2400 W peak), 100 hrs</td>
</tr>
<tr>
<td class="name">Maximum SPL (1m)</td>
<td>50 Hz –125 Hz: 127 dB-SPL cont avg (133 dB peak) 125 Hz – 800 Hz: 126 dB-SPL cont avg (132 dB peak)</td>
</tr>
<tr>
<td class="name">System Sensitivity (1w @ 1m)</td>
<td>50 Hz – 125 Hz: 97 dB125 Hz – 800 Hz: 97 dB</td>
</tr>
<tr>
<td class="name">Nominal Impedance</td>
<td>8 ohms</td>
</tr>
<tr>
<td class="name">LF Driver</td>
<td>1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil</td>
</tr>
<tr>
<td class="name">Enclosure</td>
<td>Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood</td>
</tr>
<tr>
<td class="name">Suspension Attachment</td>
<td>13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware</td>
</tr>
<tr>
<td class="name">Finish</td>
<td>Black DuraFlex™ finish.White available upon request.</td>
</tr>
<tr>
<td class="name">Grille</td>
<td>Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.</td>
</tr>
<tr>
<td class="name">Input Connector</td>
<td>NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.</td>
</tr>
<tr>
<td class="name">Environmental</td>
<td>Mil-Std 810; IP-x3 per IEC529</td>
</tr>
<tr>
<td class="name">Dimensions (H x W x D in vertical orientation)</td>
<td>548 x 561 x 657 mm(21.6 x 22.1 x 25.9 in)</td>
</tr>
<tr>
<td class="name">Net Weight (each)</td>
<td>25.9 kg (57 lb)</td>
</tr>
<tr>
<td class="name">Optional Accessories</td>
<td>M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.</td>
</tr>
<tr>
<td class="name">Nominal LF Driver Impedance</td>
<td>8 ohms</td>
</tr>
</tbody>
</table>
