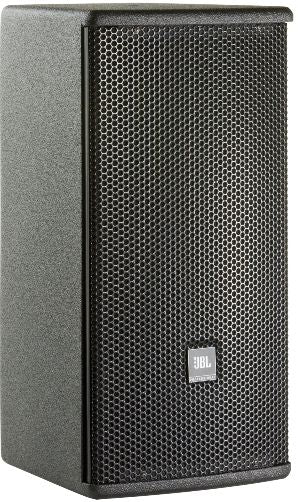

JBL AC18/26-WRX Compact 2-way 8" Loudspeaker with Extreme Weather Protection Treatment

SKU: AC1826WRX  |  UPC: 691991028946
Call For Price
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n 8" LF transducer with SFG\n Dual Neutrik NL4 connectors\n Heavy-duty powder-coated steel grille\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • 8" LF transducer with SFG

  • Dual Neutrik NL4 connectors

  • Heavy-duty powder-coated steel grille


Introducing the AC18/26: a compact full-range loudspeaker system that redefines audio excellence while maintaining an unobtrusive design. Engineered to deliver exceptional bandwidth and sound pressure levels, this system seamlessly integrates into any space. With an enclosure design allowing installation close to walls and ceilings, it's the perfect choice for under balcony, column, or wall mounting.

Key Highlights:

  • Immersive Sound Dispersion: Featuring a 1" exit compression driver integrated into a newly designed 120° x 60° rotatable PT™ (Progressive Transition) waveguide, the AC18/26 ensures even coverage across the intended listening area. This synergy produces a smooth power response, resulting in a remarkably natural and engaging audio experience.

  • LF Precision: Utilizing an 8" Symmetrical Field Geometry (SFG™) LF Transducer with a copper-clad aluminum edge-wound 2.5" voice coil and a copper-clad pole piece, the AC18/26 sets a new standard in performance. The reduction of voice coil inductance and distortion enhances overall audio precision.

  • Flexible Mounting: Designed for both vertical and horizontal orientations, the rugged multi-ply hardwood enclosure excels in any setup. With optional U-bracket and OmniMount® type bracket mounting points, as well as attachment points on the enclosure's bottom for a stand mount accessory, installation becomes effortless.

  • Durability and Elegance: The rugged plywood enclosure features JBL's signature textured DuraFlex™ finish, while a heavy-duty powder-coated steel grille with foam backing ensures durability without sacrificing style.


Key Features at a Glance:

  • Compact Versatility: A compact design that doesn't compromise on performance.

  • LF Excellence: The 8" LF transducer with SFG™ technology offers precise low-frequency reproduction.

  • Impeccable Audio Projection: The 120° x 60° Progressive Transition™ Field Rotatable Waveguide, combined with the 1" exit compression driver, guarantees accurate and immersive sound coverage.

  • Flexible Connectivity: Dual Neutrik NL4 connectors, alongside screw terminals, provide multiple connectivity options.


Unlock the potential of your audio experience with the AC18/26 loudspeaker system, an embodiment of engineering brilliance and adaptability that promises to elevate your auditory encounters to new heights.

Is This Right For You?


Recommendation


JBL AC1826-WRX Compact 2-way Loudspeaker with Extreme Weather Protection Treatment
JBL

JBL AC18/26-WRX Compact 2-way 8" Loudspeaker with Extreme Weather Protection Treatment

Call For Price

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="group_fDXOr6EpR9">
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">Configuration</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Passive 2-Way</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Total Power Capacity</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">250 W RMS
500 W Program
1000 W Peak</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">System Impedance</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">8 Ohms</div></td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Drivers</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">HF Driver</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv"><b>1 x </b>1" / 51 mm Dome Tweeter</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">LF Driver</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv"><b>1 x </b>8" / 20.3 cm Woofer</div></td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Performance</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">Frequency Response</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">47 Hz to 20 kHz</div></td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Connectivity</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">Audio I/O</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv"><b>2 x </b>speakON NL4
Screw Terminal</div></td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Physical</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">Construction Material</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Plywood</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Dimensions</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">18.5 x 9.4 x 10" / 470 x 237.5 x 254 mm</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Weight</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">28.2 lb / 12.8 kg</div></td>
</tr>
</tbody>
</table>
</div>
