Product Summary


  • 8" LF transducer with Symmetrical Field Geometry

  • Dual Neutrik NL4 connectors

  • Uniform sound dispersion with a 120° x 60°


Introducing the AC18/26: a compact full-range loudspeaker system engineered for a remarkable blend of bandwidth and sound pressure level within a discreet visual package. Designed to harmonize seamlessly with its environment, it stands as a powerful yet unobtrusive addition.

With its innovative enclosure design, the AC18/26 easily finds its place close to walls and ceilings, making it an optimal choice for under balcony, column, or wall mounting. The 1" exit compression driver, integrated into a freshly designed 120° x 60° rotatable PT™ (Progressive Transition) waveguide, guarantees uniform coverage across the intended listening area. This combination results in an impeccably smooth power response, contributing to an exceptionally natural audio profile.

At the core of this system lies an 8" Symmetrical Field Geometry (SFG™) LF Transducer, featuring a copper-clad aluminum edge wound 2.5" voice coil and a copper-clad pole piece. This innovative configuration reduces voice coil inductance and distortion, ensuring optimal performance.

The robust multi-ply hardwood enclosure is engineered to thrive in both vertical and horizontal orientations. Optional U-bracket and OmniMount® type bracket mounting points offer flexibility in installation. For even more versatility, the AC18/26 is equipped with attachment points on the enclosure's underside, catering to stand mount accessory requirements.

Impeccable durability is woven into its design, with the rugged plywood enclosure boasting JBL's textured DuraFlex™ finish. A heavy-duty powder-coated steel grille, backed with foam, reinforces the protection of this audio marvel.

Key Features:

  • Space-Saving Elegance: Compact enclosure design ensures powerful performance within a modest footprint.

  • Exceptional LF Power: An 8" LF transducer with Symmetrical Field Geometry (SFG™) and a 2.5" voice coil, backed by copper-clad technology, delivers dynamic audio.

  • Remarkable Coverage: Experience uniform sound dispersion with a 120° x 60° Progressive Transition™ Field Rotatable Waveguide, integrated with a 1" exit compression driver.

  • Versatile Connectivity: Dual Neutrik NL4 connectors, accompanied by screw terminals, offer flexible connection options.

  • Ultimate Flexibility: Benefit from multiple attachment points, enabling diverse mounting choices to suit your installation needs.

  • Visual Harmony: The rugged plywood enclosure boasts JBL's textured DuraFlex™ finish, and a robust powder-coated steel grille with foam backing safeguards the system.


Embrace a harmonious fusion of innovation, design, and performance with the AC18/26. Its discreet elegance belies its power, making it an exceptional addition to any auditory space.

JBL AC18/26-WRC Compact 2-way 8" Loudspeaker with Weather Protection Treatment (Black)

SKU: AC1826WRC | UPC: 691991010637
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL AC18/26-WRC Compact 2-way 8" Loudspeaker with Weather Protection Treatment (Black) Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>8" LF transducer with Symmetrical Field Geometry</li>\n <li>Dual Neutrik NL4 connectors</li>\n <li>Uniform sound dispersion with a 120° x 60°</li>\n</ul>

Technical Details

Specifications

General
Configuration
Passive 2-Way
Total Power Capacity
250 W RMS 500 W Program 1000 W Peak
System Impedance
8 Ohms
Drivers
HF Driver
1 x 1" / 51 mm Dome Tweeter
LF Driver
1 x 8" / 20.3 cm Woofer
Performance
Frequency Response
47 Hz to 20 kHz
Connectivity
Audio I/O
2 x speakON NL4 Screw Terminal
Physical
Construction Material
Plywood
Dimensions
18.5 x 9.4 x 10" / 470 x 237.5 x 254 mm
Weight
28.2 lb / 12.8 kg

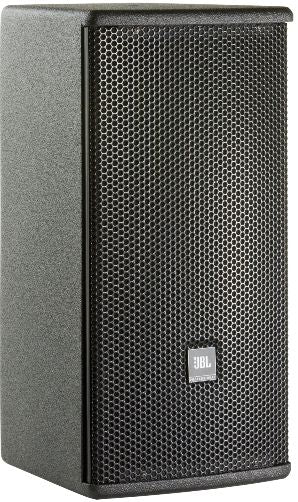

BL AC1826-WRC Compact 2-way Loudspeaker with Weather Protection Treatment, Black
