SKU: PT12XZCAM  |  UPC: 737993161622

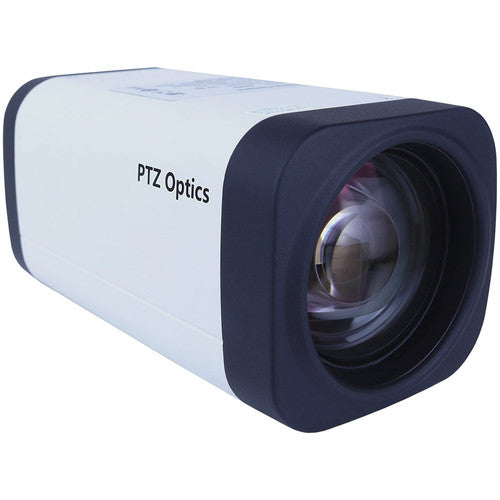

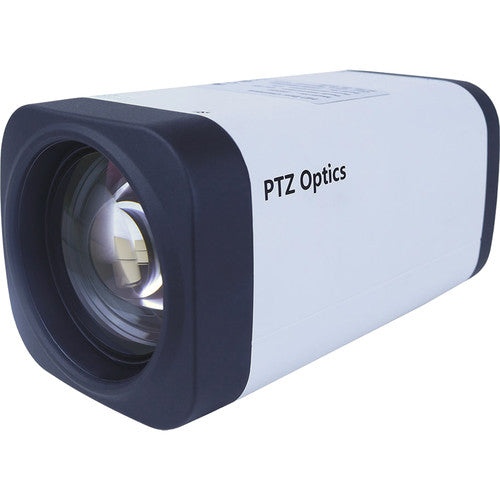

PTZOptics PT12X-ZCAM 1080p Box Camera with 12x Zoom Lens

$699.00
Free Shipping At Checkout!

SPRING SALE | additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • For Broadcast & Video Conferencing
  • 3G-SDI and IP Streaming
  • Up to 1080p60 Capture and Streaming

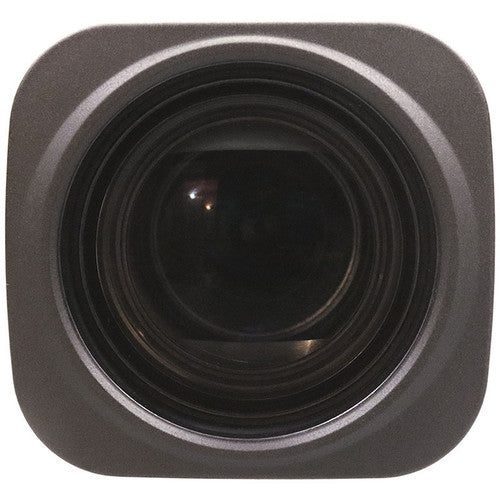

  • 3.5-42.3mm 12x Zoom Lens, f/1.8-2.8

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • 12X ZCAM Camera
  • Power Adapter
  • User Manual


  • For Broadcast & Video Conferencing

  • 3G-SDI and IP Streaming

  • Up to 1080p60 Capture and Streaming

  • 3.5-42.3mm 12x Zoom Lens, f/1.8-2.8


KEY FEATURES

• Panasonic 1/2.7” HD CMOS Sensor

• 3G-SDI High Definition Video Output

• H.264, H.265 & MJPEG IP streaming output (dual stream)

• AAC stereo unbalanced Audio Encoding over IP

• High performance in low light scenarios

• Full 1920x1080p HD Resolutions up to 60 frames per second via SDI

• 2D & 3D noise reduction with our latest “low noise CMOS sensor”

• Wide Dynamic Range • Menu controls on back of camera

• RS485 and IP remote camera control

• 72.5° Field of View

• Std 1/4-20 female thread for camera mounting (bottom)

• PoE (Power over Ethernet)

• Hold left button on Menu Navigation for 5+ seconds to toggle Dynamic or Static IP addressing

• 3-year warranty

• Photobooth capable

The PTZOptics PT12X-ZCAM is a 1080p box camera with 12X optical zoom for capturing HD video even at a distance. With support for 3G-SDI & IP streaming, this camera is ideal for broadcasting high definition video signals for broadcast or video conferencing applications up to 1080p/60 resolution

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

ebc8092c15ba4b70a6e1da662a6044dc
PTZOptics

PTZOptics PT12X-ZCAM 1080p Box Camera with 12x Zoom Lens

$699.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

Panasonic 1/2.7” HD CMOS Sensor

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

≥55dB

N/A

Gain

N/A

N/A

Shutter Speed Range

1/30s – 1/10000s

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

Vertical Flip & Mirror Supported

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

3G-SDI, RJ45 IP Network

N/A

Audio Input

N/A

N/A

Audio

AAC stereo unbalanced Audio Encoding over IP

N/A

Camera Control

RS485 and IP remote camera control

N/A

Focal Length

F=3.5mm ~ 42.3mm, F1.8-F2.8

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

N/A

N/A

Power

12 VDC (10.8 to 13 VDC) or PoE 802.3af

N/A

Power Consumption

N/A

N/A

Minimum Illumination

0.5 Lux (F1.8, AGC ON)

N/A

Optical Zoom

3x

N/A

TAA Compliant

N/A
