Product Summary


  • For Outdoor/Indoor Broadcast

  • Up to 1080p60 Resolution

  • 1/2.86" 2.5MP Sensor


Key Features

  • Ultracompact design for flexible outdoor/indoor broadcast and professional A/V applications

  • Measures only 1.5 x 1.5 x 2.2"

  • 2.5 MP, 1/2.86" sensor captures up to 1080p60 resolution in 4:2:2 color

  • Integrated 10' cable with 3G-SDI output, RS-485 interface, and locking 12V power connector

  • Interchangeable M12 lens mount

  • 3.6mm lens included

  • Adjustable white balance, exposure, gain, and more

  • VISCA serial control or software control via a computer or tablet

  • IP67 weatherproof rated

  • 1/4"-20 mounting thread

  • Can be mounted upside-down, compensated by a digital flip function

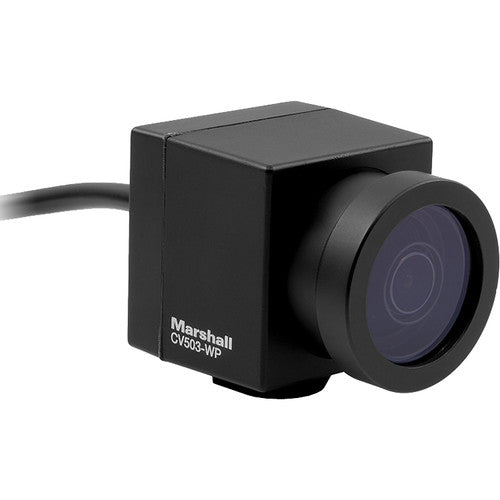

The CV503-WP Weatherproof Miniature HD Camera from Marshall Electronics offers many top features in an ultracompact design measuring approximately 1.5 x 1.5 x 2.2". In a discreet and flexible manner, the camera is useful for virtually all outdoor and indoor broadcast and professional A/V applications. The miniature design allows capturing hard-to-get angles while the 1/2.86", 2.5 MP sensor captures crisp video in up to 1080p60 resolution.

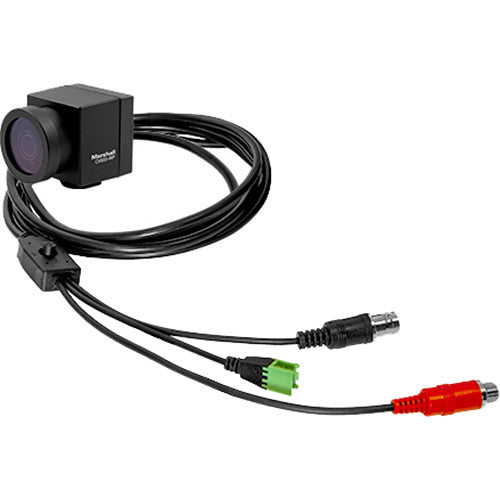

An integrated 10' cable extending out of the camera provides a full-sized 3G-SDI output, RS-485 interface, and locking 12V power connector on the opposite end. The camera includes a 3.6mm lens but has an interchangeable M12 lens mount that allows for various other lenses to be mounted for different environments.



Various settings, such as white balance, exposure, and gain, can be adjusted via the camera's OSD menu or over VISCA serial control over the RS-485 connection. Compatible controllers include the Marshall CV-RCP-V2, sold separately. An alternative option is to use Marshall's free camera control software on a computer or tablet. In this case an optional USB to RS-485 cable would be required in order to connect your PC/device to the camera.

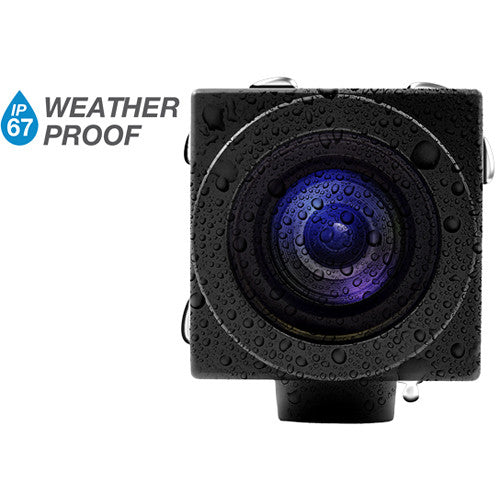

The CV503-WP is IP67 weatherproof-rated and features a 1/4"-20 mounting thread on the bottom. It can be mounted upside-down if you want, in which case you can switch on a digital flip function from the camera's menu to compensate.

Marshall CV503-WP All-Weather HD Miniature Camera (3G/HDSDI)

SKU: CV503WP | UPC: 801813194036
Authorized Dealer Authorized Marshall Electronics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$449.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Marshall CV503-WP All-Weather HD Miniature Camera (3G/HDSDI) $449.00
Contact Us for Availability Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>For Outdoor/Indoor Broadcast</li>\n <li>Up to 1080p60 Resolution</li>\n <li>1/2.86" 2.5MP Sensor</li>\n</ul>

Technical Details

Specifications

Resolution
HD 1080
Optical Zoom
3x
Output
3G/HD/SD-SDI Output (Full-Size BNC)
Power
Locking 12 V Power Connector
f70658cae78147fbab73df95a29a20e9
Marshall Electronics

Marshall CV503-WP All-Weather HD Miniature Camera (3G/HDSDI)

$449.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

2.5 MP, 1/2.86" CMOS

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

3G/HD/SD-SDI Output (Full-Size BNC)

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

RS-485 Interface , Control ProtocolVISCA

N/A

Focal Length

Lens MountM12 | ens Included 3.6mm Focal Length 72° Field of View

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

N/A

N/A

Power

Locking 12 V Power Connector

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

3x

N/A

TAA Compliant

N/A
